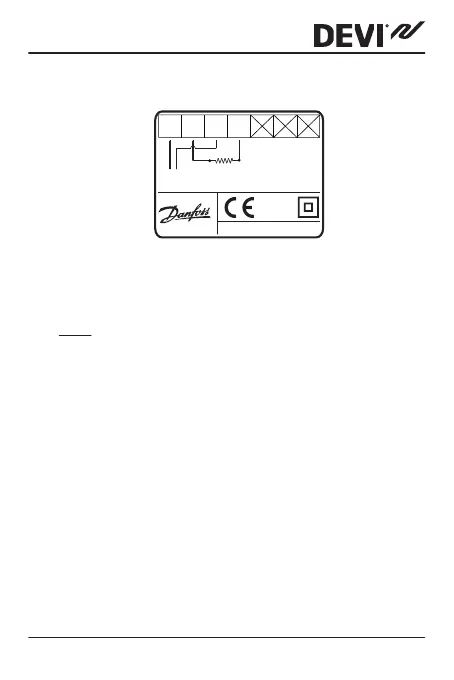

2. Connect the thermostat according to the connection
diagram.
IP31
-10T30
D531
Mains
220-240V~
Max. Load
15 (1)
A
N
L
N
LOAD
L
LOAD
The screen of the heating cable must be connected to
the earth conductor of the power supply cable by us-
ing a separate connector.
Note: Always install the floor sensor in a conduit in the
floor.
3. Mount and reassemble the thermostat:
▪
Fasten the thermostat to a socket or an exterior wall
box by driving the screws through the holes in each
side of the thermostat.
▪
Install the frame and front cover in the reverse order
of disassembly.
4. Turn on the power supply.
DEVIreg™ 531
Installation Guide 9
