Devialet 120 User Manual

English

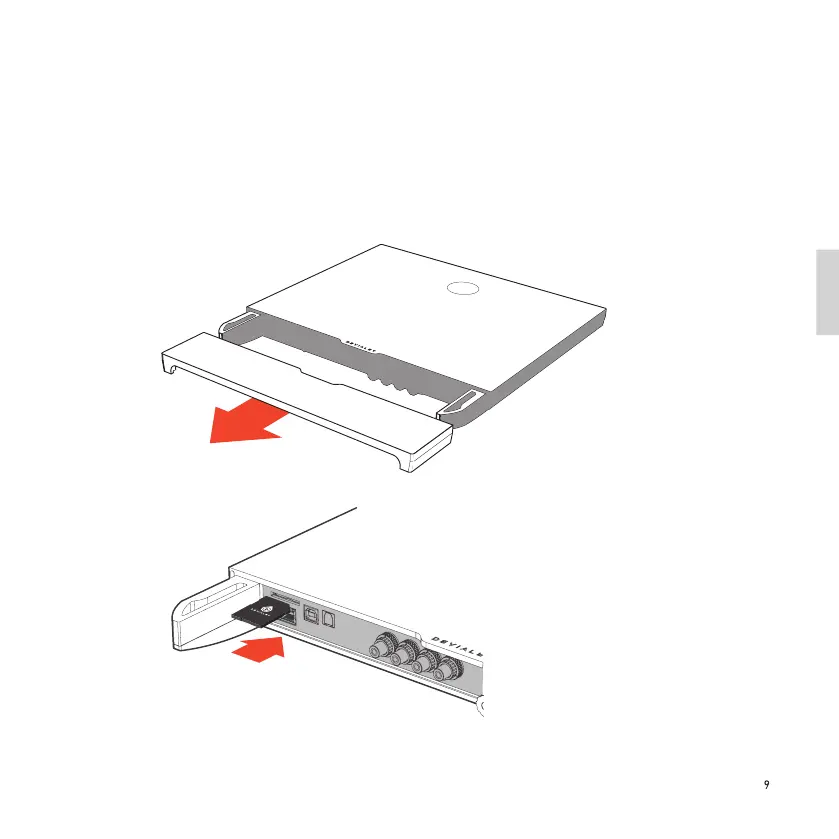

After having registered (see page 4) and configured (see pages 5 to 9) your Devialet, remove the device from
its box. Carefully remove the plastic protection, remove the protective hood by horizontally pulling on it in
order to access the connectors and insert the SD card in back of the Devialet.
4 FIRST USE

Devialet 120 Specifications

General

Power Output	120 W per channel
Signal-to-Noise Ratio	>130 dB
Dimensions	383 mm x 383 mm x 40 mm
Weight	5.9 kg
Type	Integrated Amplifier
Configuration	Stereo
Total Harmonic Distortion	<0.001%
Inputs	Ethernet, USB, Optical, Coaxial, Analog RCA
Outputs	Speaker terminals
