19

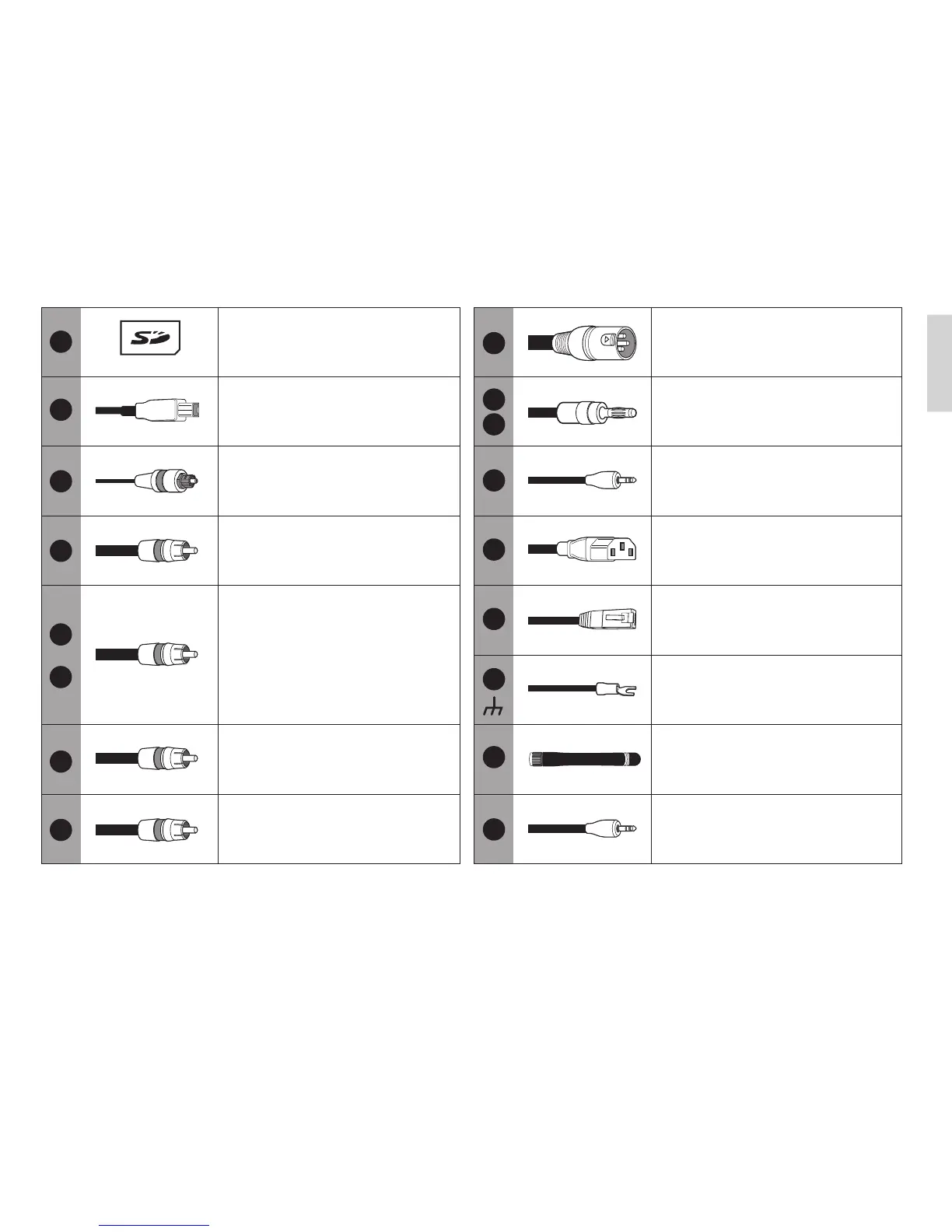

A
SD CARD / SETUP
SD CARD SLOT FOR CONFIGURATION OF
THE AMPLIFIER AND UPDATES
AES/EBU
XLR DIGITAL INPUT FOR
PROFESSIONAL SOURCES
B
USB
PORT FOR COMPUTER CONNECTION
C
RS-232 / OPTICAL 2
PORT FOR HOME AUTOMATION
APPLICATIONS AND OPTICAL INPUT
(3.5MM JACK)
OPTICAL 1
OPTICAL INPUT FOR CD PLAYER,
BLU-RAY PLAYER, APPLE® AIRPORT,
COMPUTER, MODEM, ETC .
D
PHONO
2 (MM/MC) / LINE 2
ADVANCED PHONO STAGE FOR A
VINYL TURNTABLE OR TUNER LINE
INPUT
ETHERNET
RJ45 SOCKET FOR NETWORK
CONNECTION
F
E
PHONO 2 (MM/MC) / LINE 1 /
DIGITAL 3/4 *
ADVANCED PHONO STAGE FOR A VINYL
TURNTABLE OR TUNER LINE INPUT OR S/
PDIF (COAXIAL) DIGITAL INPUTS FOR CD
PLAYER, DVD PLAYER, TV…
G
DIGITAL 2
*
S/PDIF (COAXIAL) DIGITAL INPUT FOR CD
PLAYER, DVD PLAYER, TV…
H
DIGITAL 1
*
S/PDIF (COAXIAL) DIGITAL INPUT FOR
CD PLAYER, DVD PLAYER, TV…
I
RIGHT SPEAKER & LEFT SPEAKER
UNIVERSAL SPEAKER CONNECTORS
(4MM BANANA PLUG OR STRIPPED CABLE
FORK CONNECTORS)
K
J
L
MAINS 90-240V / 50-60 Hz
POWER SUPPLY (EARTH WIRE REQUIRED)
M
N
GROUNDING FOR TURNTABLE
TONEARM
O
SMA CONNECTOR
TO ADD AN EXTERNAL WI-FI
ANTENNA
P
TRIGGER IN/OUT
FOR CONNECTING HIFI COMPONENTS
(3.5MM JACK)
Q
*Configurable connectors in digital inputs, analogue inputs or mono/stereo analogue outputs.
