EN - 4 A-4650D
INTRODUCTION
Your doctor has prescribed a liquid medication to treat your respiratory condition. To best utilize this liquid medication, he
has prescribed a DeVilbiss brand compressor/nebulizer. Your DeVilbiss compressor/nebulizer works to convert the
medicationtoahigh-qualitymistofneparticlesthatpenetratesdeepintothelungs.
Be sure that you read and understand the information in this instruction guide. By following these simple instructions and
the advice of your physician, your compressor will become an effective addition to your therapeutic routine.
Statement of Intended Use
The DeVilbiss compressor/nebulizer includes an AC powered air compressor that provides a source of compressed air for
home health care use. The compressor is used in conjunction with a jet (pneumatic) nebulizer to convert certain inhalable
drugs into an aerosol form for inhalation by a patient. The device can be used with adult or pediatric patients.
NOTE– If using a nebulizer other than one distributed by DeVilbiss, verify that the pressure and/or ow characteristics of
the nebulizer (while driven by the DeVilbiss compressor) meet the nebulizer manufacturer’s recommendation.

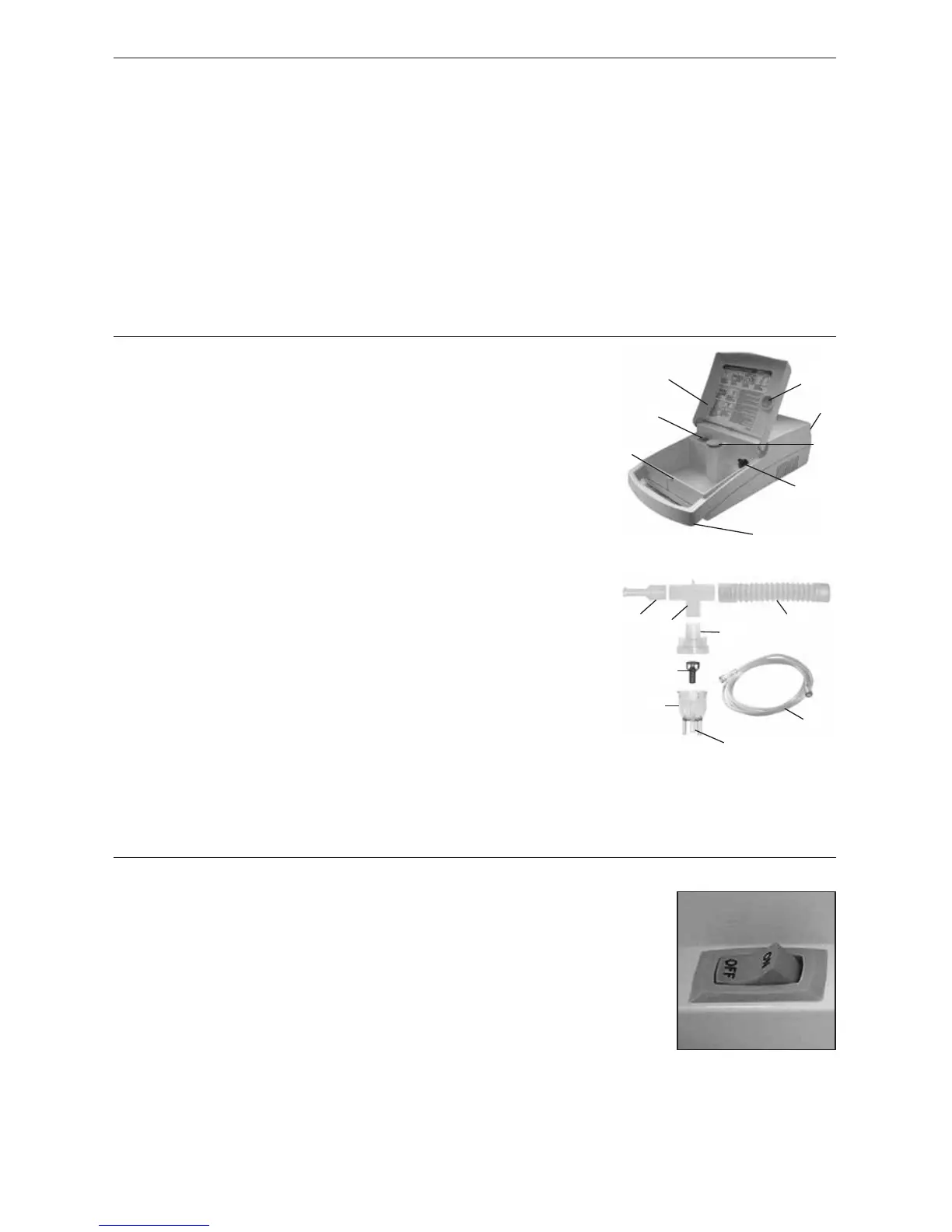

IMPORTANT PARTS
DeVilbiss 4650 Compressor
1. Storage compartment
2. Storage compartment door with operating instructions
3. Power switch
4. Filter cap
5. Air-outlet connector
6. Carrying handle
7. Power cord storage
8. Nebulizer holder
NOTE– Model 4650D is equipped with a three-prong plug and must be grounded.
Disposable Nebulizer
1. Mouthpiece
2. T-piece
3. Corrugated Tubing
4. Cap
5. Bafe
6. Medication Cup
7. Nebulizer Air-Inlet Connector
8. Tubing
Nebulizer parts are not sold separately. Additional nebulizers (part #3655D-621)
are available through your DeVilbiss provider.
NOTE–Your neb may look different than pictured.
DeVilbiss also offers reusable nebulizers that can be cleaned and reused for an extended period of time.
HOW TO OPERATE YOUR COMPRESSOR
NOTE– Before initial operation, your nebulizer should be cleaned following cleaning instructions, or as recommended by
your physician or DeVilbiss provider.
1. Place compressor on a level, sturdy surface so that the controls can be easily reached
when seated. Never block the air openings of the product or place it on a soft surface,
such as a patient’s lap or a bed or couch where the air openings may be blocked.
2. Open door to storage compartment.
3. Make sure the power switch is in the “Off” position (Fig. 1). Unwrap power cord and
plugpowercordintoanappropriatewalloutlet(refertoSpecications).Plugmodel
4650D into a grounded wall outlet (refer to Grounding Instructions).
DANGER
DeVilbiss compressor/nebulizer must be operated on the specied power source to
avoid risk of electric shock and damage to the compressor.
4. Wash hands.
5. Connect one end of the nebulizer tubing to the compressor air-outlet connector.
6
1
3
4
2
5
7
8
4650 Series
Disposable Nebulizer
1
2
6
7
4
5
8
3
Figure 1
