EN
1
2
3
4
5
6
P1
P3

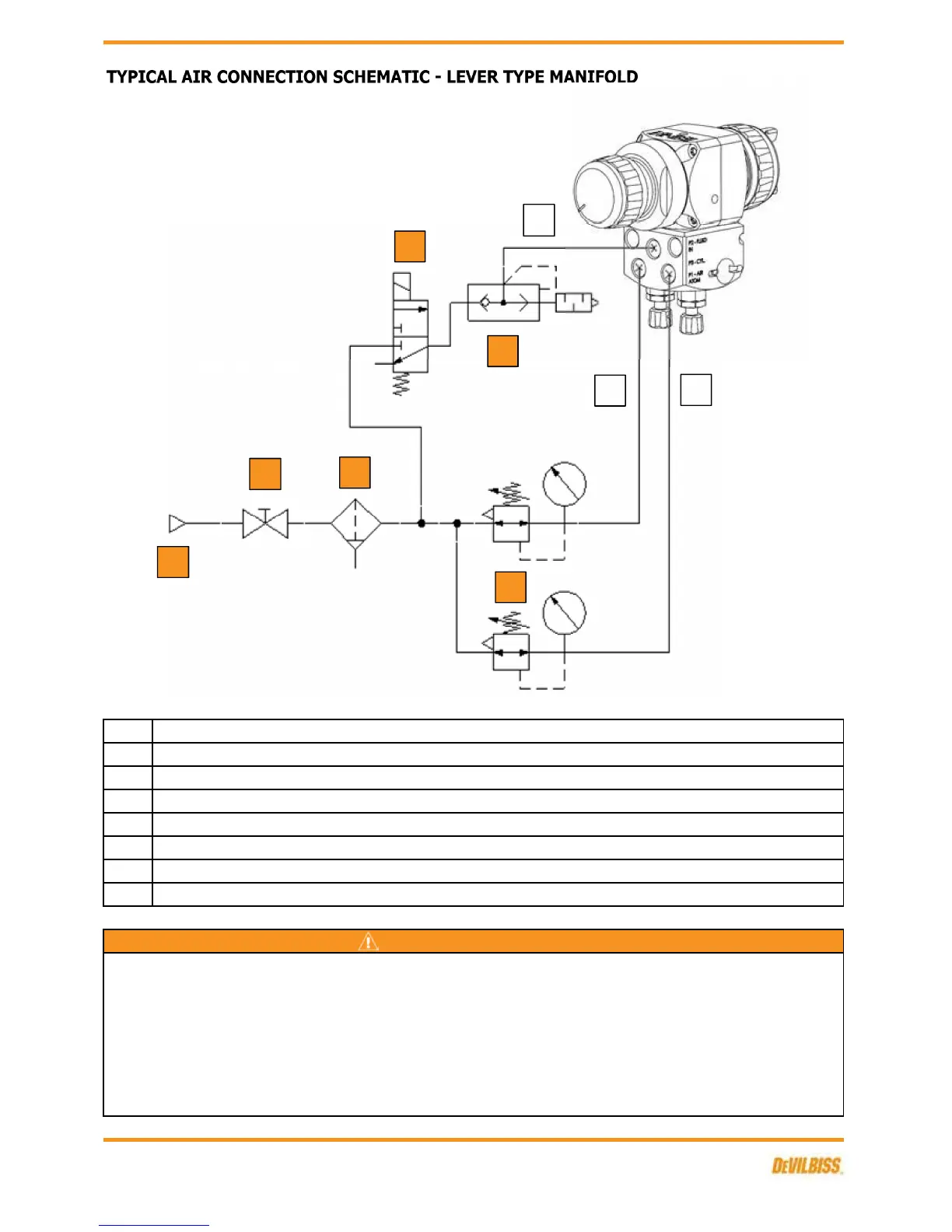

Air regulator & gauge
3/2 solenoid valve, normally closed
Quick exhaust valve & silencer
Air filter
WARNING
CYL - 1/8" G
The spray gun must be earthed to dissipate any electrostatic charges which may be created by fluid or
air flows. This can be achieved through the spray gun mounting, or conductive air/fluid hoses.
Electrical bond from the spray gun to earth should be checked and a resistance of less than 10⁶ Ohms
is required.
CAP - 1/8" G
Compressed air take-off
Shut-off valve
1
2
3
4
5
6
P3
P1
P1
SB-E-2-643 R5.0
7/28
