DeVilbiss AG362 - Typical Fluid Connection Schematic - Lever Type Manifold

EN
1
2
3
4
5
P2

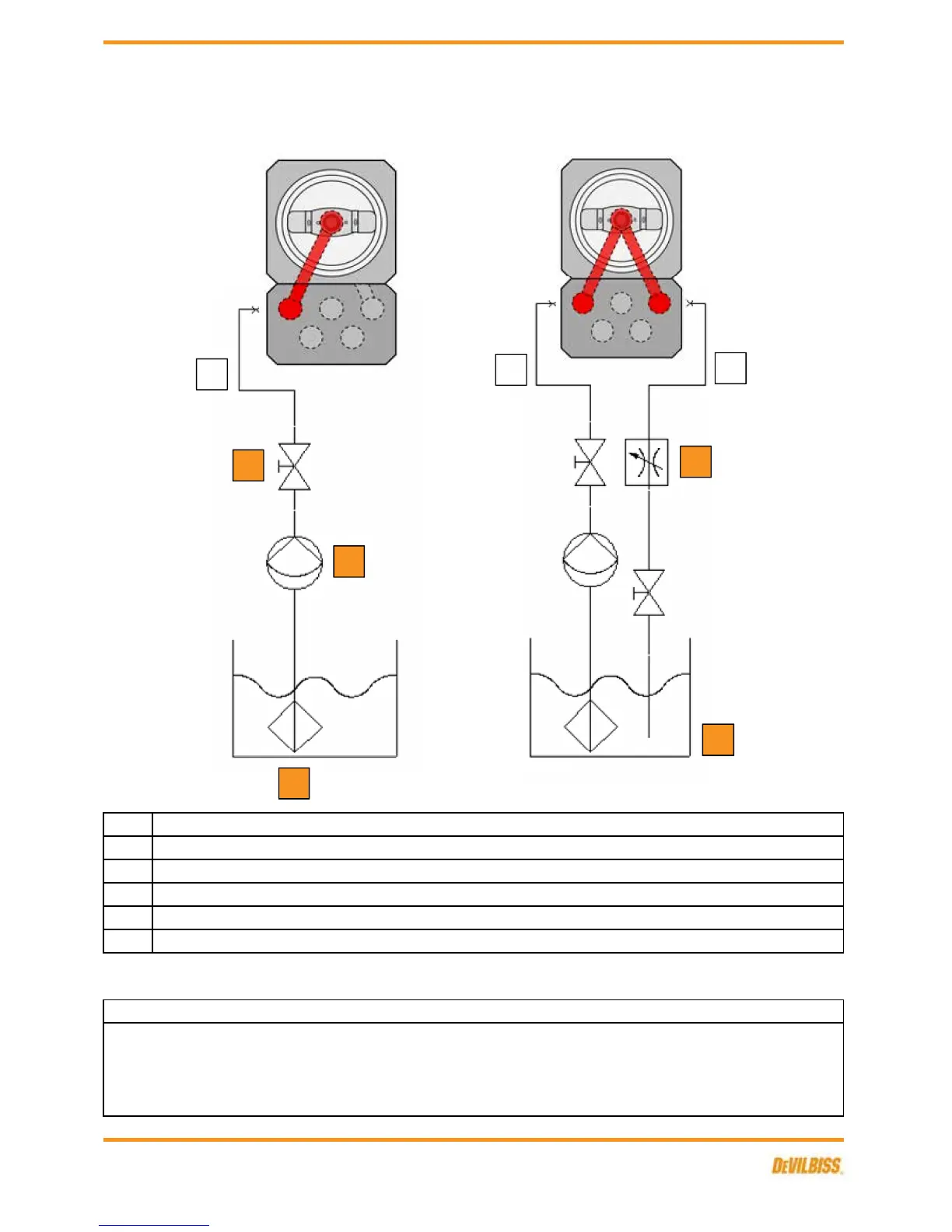

TYPICAL FLUID CONNECTION SCHEMATIC - LEVER TYPE MANIFOLD
Fluid reservoir
Fluid - 1/8" G
FRONT VIEW FRONT VIEW
AG362U-XXXX-XXXX-L
Protective coatings have been used for storage protection. Flush the equipment fluid passageways
with appropriate solvent before use.
Fluid restrictor valve
Fluid filter
NOTE
AG362-XXXX-XXXX-L
Fluid supply
Shut-off valve
1
2
3
P2
4
5
P2
P2
SB-E-2-643 R5.0
8/28
