EN
1
2
3
4
5
6
P1
P3
CAP - 1/4" G
CYL - 1/8" G
Air regulator & gauge

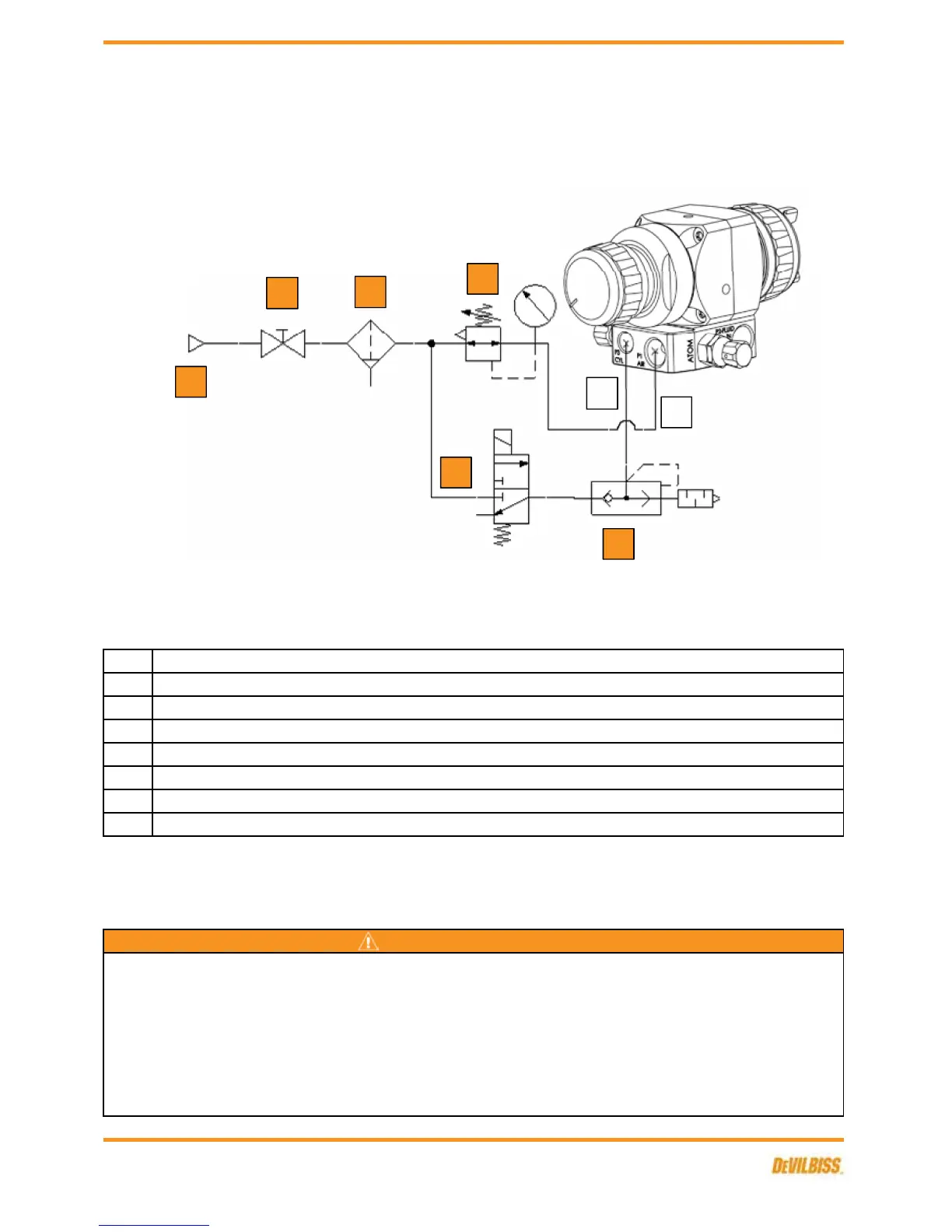

TYPICAL AIR CONNECTION SCHEMATIC - SCREW TYPE MANIFOLD
Air filter
WARNING
The spray gun must be earthed to dissipate any electrostatic charges which may be created by fluid or
air flows. This can be achieved through the spray gun mounting, or conductive air/fluid hoses.
Electrical bond from the spray gun to earth should be checked and a resistance of less than 10⁶ Ohms
is required.
Quick exhaust valve & silencer
Compressed air take-off
3/2 solenoid valve, normally closed
Shut-off valve
1
2
3
4
5
6
P3
P1
SB-E-2-643 R5.0
9/28
