DeVilbiss AG362 - Typical Fluid Connection Schematic - Screw Type Manifold

EN
1
2
3
4
5
P2
FRONT VIEW FRONT VIEW
NOTE
Protective coatings have been used for storage protection. Flush the equipment fluid passageways
with appropriate solvent before use.
Fluid - 1/4" NPS
Fluid reservoir
Shut-off valve
AG362-XXXX-XXXX-S AG362U-XXXX-XXXX-S AG362-XXXX-XXXX-T

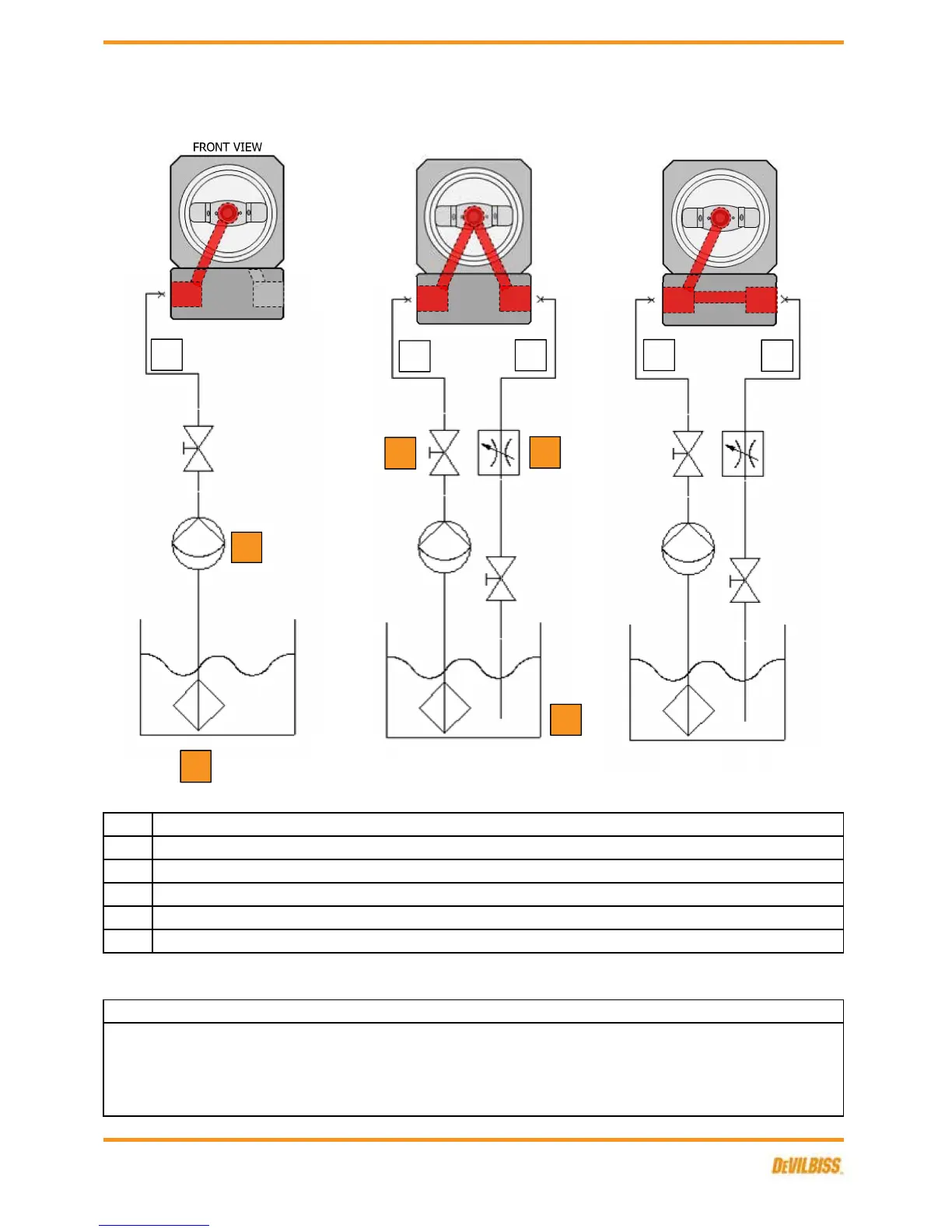

TYPICAL FLUID CONNECTION SCHEMATIC - SCREW TYPE MANIFOLD
Fluid restrictor valve
Fluid supply
Fluid filter
P2
P2
P2
P2
3
5
4
1
2
P2
SB-E-2-643 R5.0
10/28
