DeVilbiss HAF-503 - HFRL-509 & HFRL-512 Parts

SB-6-148-F Page 5
Individual
Ref. Replacement Parts
No. Part No. Description Required
1 HAF-503 Separator Filter 1
(See Figure 4)
2 HAF-508 Coalescer Filter 1
(See Figure 3)
3 --- 3/4" (M) x 1/2" (F) 1
Reducer Bushing
4 HAF-21 Cross Manifold 1
5 GA-373 Air Gauge, 0-160 psi 1
6 GA-372 Air Gauge, 0-100 psi 1
7 HAR-507 Air Regulator 1
(See Figure 8)
*8 --- 1/4" Street Elbow 90° 1
9 VA-542 Ball Valve 3

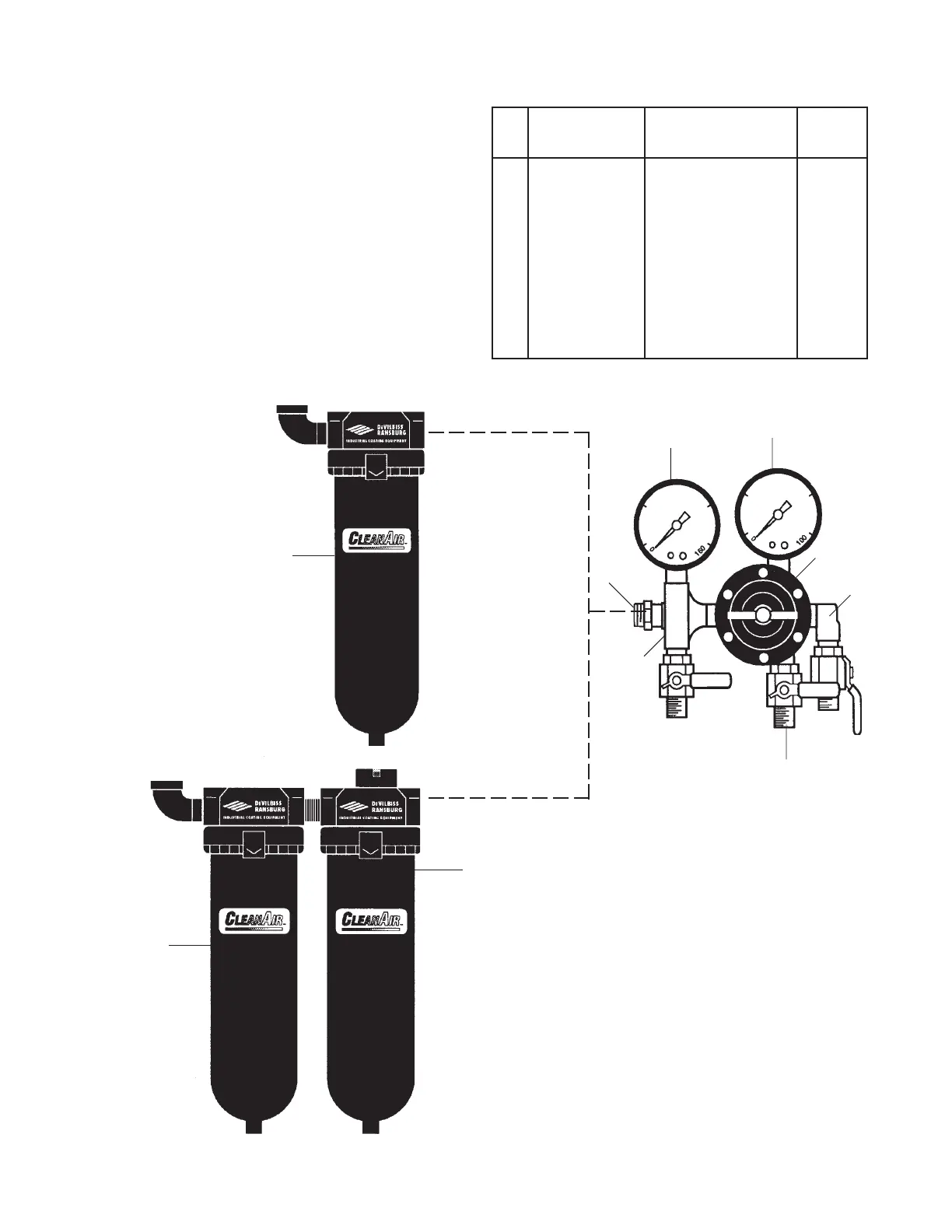

PARTS LIST - Models HFRL-509 and HFRL-512 Figure 6
Figure 6
*HAF-509 does not include items 3 thru 9.
HFRL-509 80 CFM Filter Regulator Assembly
3
4
9
6
5
7
8
2
1
1
*HAF-509 Separator-Coalescing Filter Assembly or HFRL-512
80 CFM Filter Regulator Assembly
