DeVilbiss HAF-503 - HFRL-511 & HFRL-513 Parts

Page 6 SB-6-148-F
1
1
9
10
11
12
4
6
8
7
5
2
3

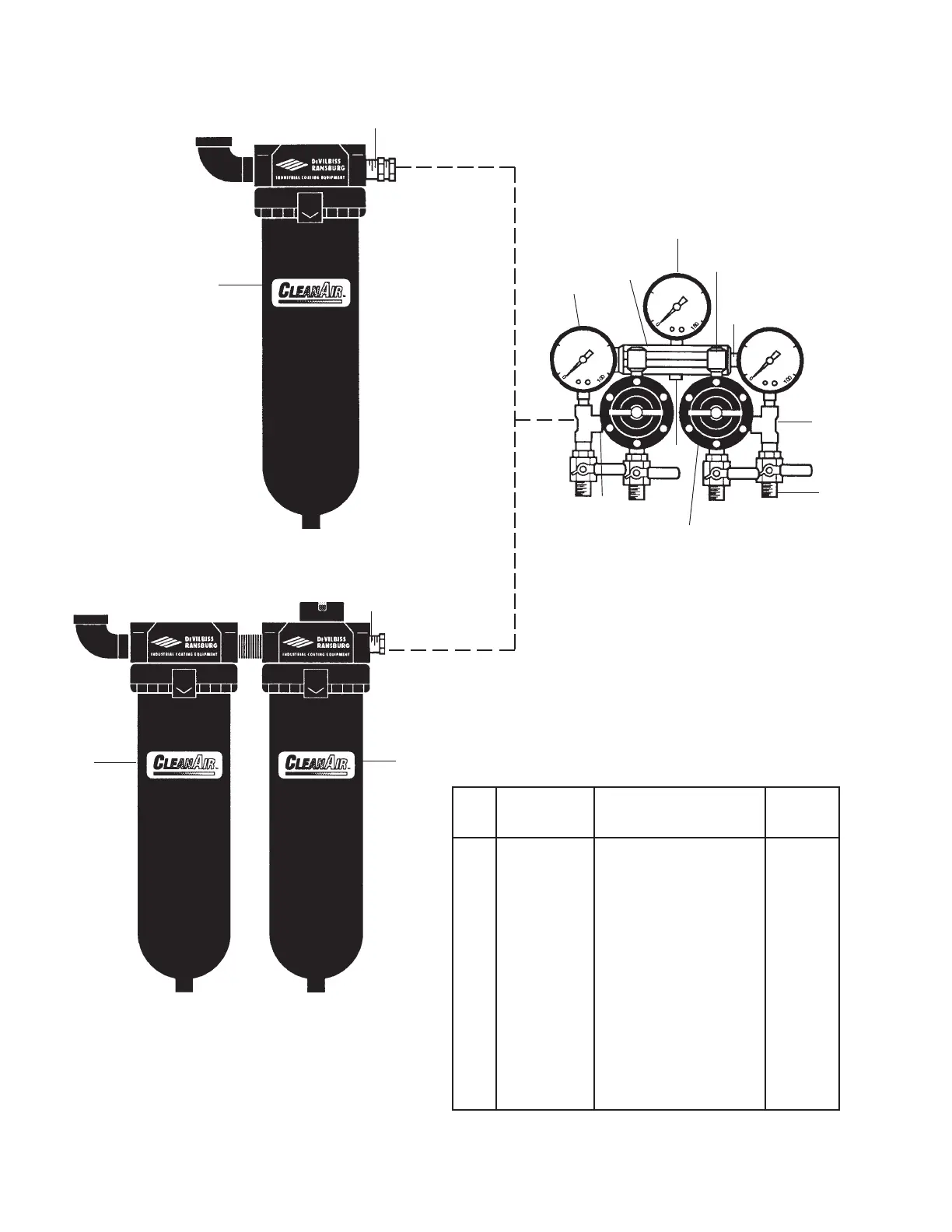

HFRL-513 120 CFM Filter Regulator Assembly
HFRL-511 120 CFM Filter Regulator Assembly
Figure 7
3
Individual
Ref Replacement Parts
No. Part No. Description Required
1 HAF-503 Separator Filter 1
(See Figure 3)
2 HAF-508 Coalescer Filter 1
(See Figure 4)
3 SSP-58-ZN 3/4" Swivel Pipe Adapter, 1
Straight
4 GA-372 Air Gauge, 0-100 psi 2
5 HAF-403 Manifold Assembly 1
6 GA-373 Air Gauge 0-160 psi 1
7 SSP-57-ZN 3/8" Swivel Pipe Adapter, 2
90° Elbow
*8 --- 1/4" Street Elbow 90° 1
*9 --- 1/4" Straight Tee 2
10 VA-542 Ball Valve 5
11 HAR-507 Air Regulator 2
12 --- 1/4" NPT Pipe Plug 1
13 --- 1/4" Close Nipple 2
*Purchase locally.
PARTS LIST - Models HFRL-511 and HFRL-513 Figure 7
