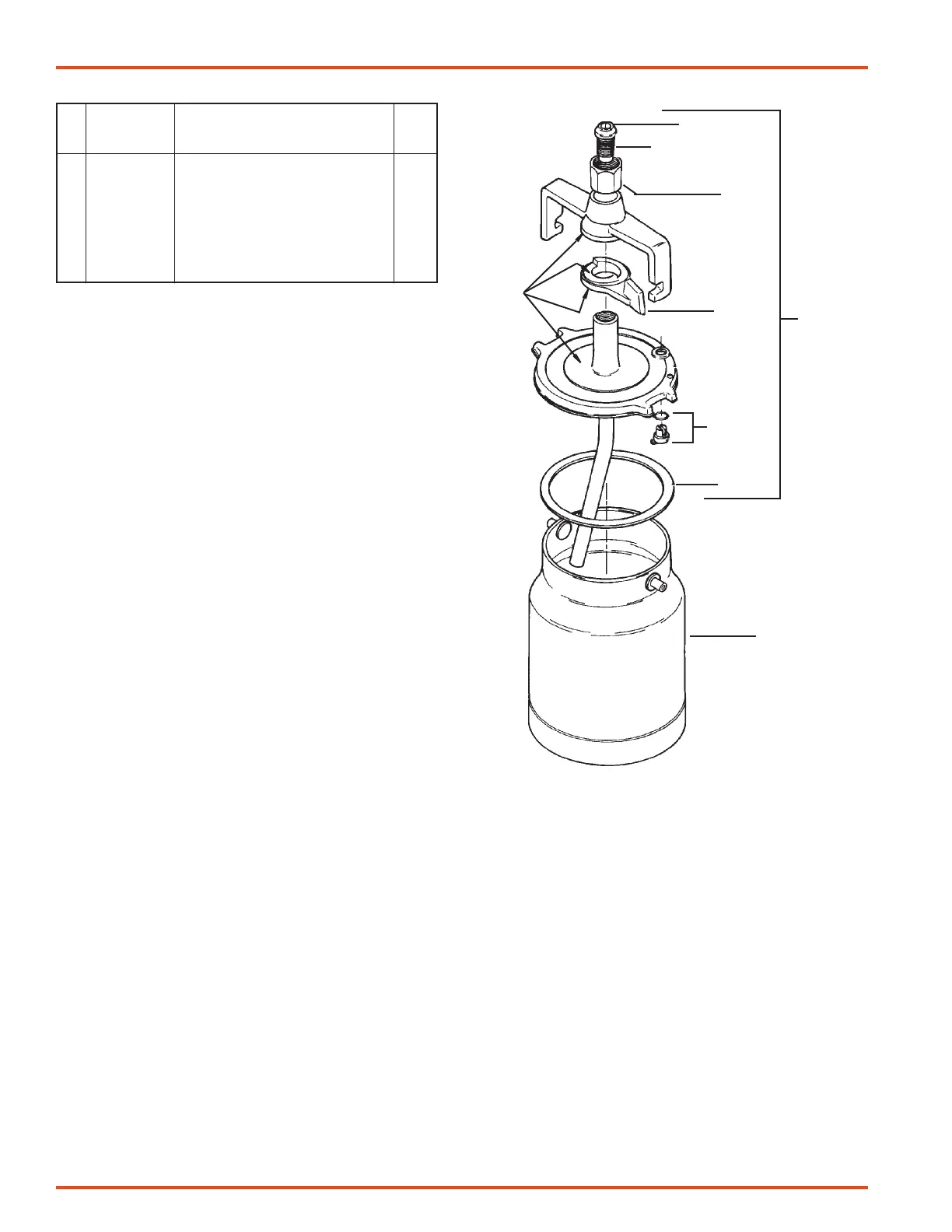

DeVilbiss TGC-545 - Parts Identification and Assembly Overview; Replacement Parts List; Exploded View Diagram

SB-4-391-W (12/2017)4 / 6
EN
www.carlisleft.com
Apply sealant to
rst two threads
(Loctite #262).
7
1
2
3
4
5
6
Parts List
Ind.
Ref. Replacement Parts
No. Part No. Description Req.
1* Adapter, 1/2" NPS (M) 1
2* Nut, 3/8" NPS (F) 1
3* Cam 1
4* TGC-407-1-K3 Drip Free Valve & Gasket (Kit of 3) 1
5* TGC-9-K5 **Tri Seal
®
Lid Gasket (Kit of 5) 1
6 TGC-404 Lid Assembly (Quart) 1
7 KR-428-2 Suction Cup Assy. (Quart) 1
TLC-401 Suction Cup Assy. (Non-stick, Quart)
* KK-5007 Repair Kit includes Ref. Nos. 1-5. Repair kit contains enough parts
to repair one complete assembly.
Sufx -K3 designates a kit of multiple parts. Example: TGC-407-1-K3 is a kit of
3 drip free valves.
** Registered Trademark of Tri-Seal International.
Yoke
Figure 4
Keep
these
surfaces
clean.
