4 5 71
8
2 3
6 7 5
9

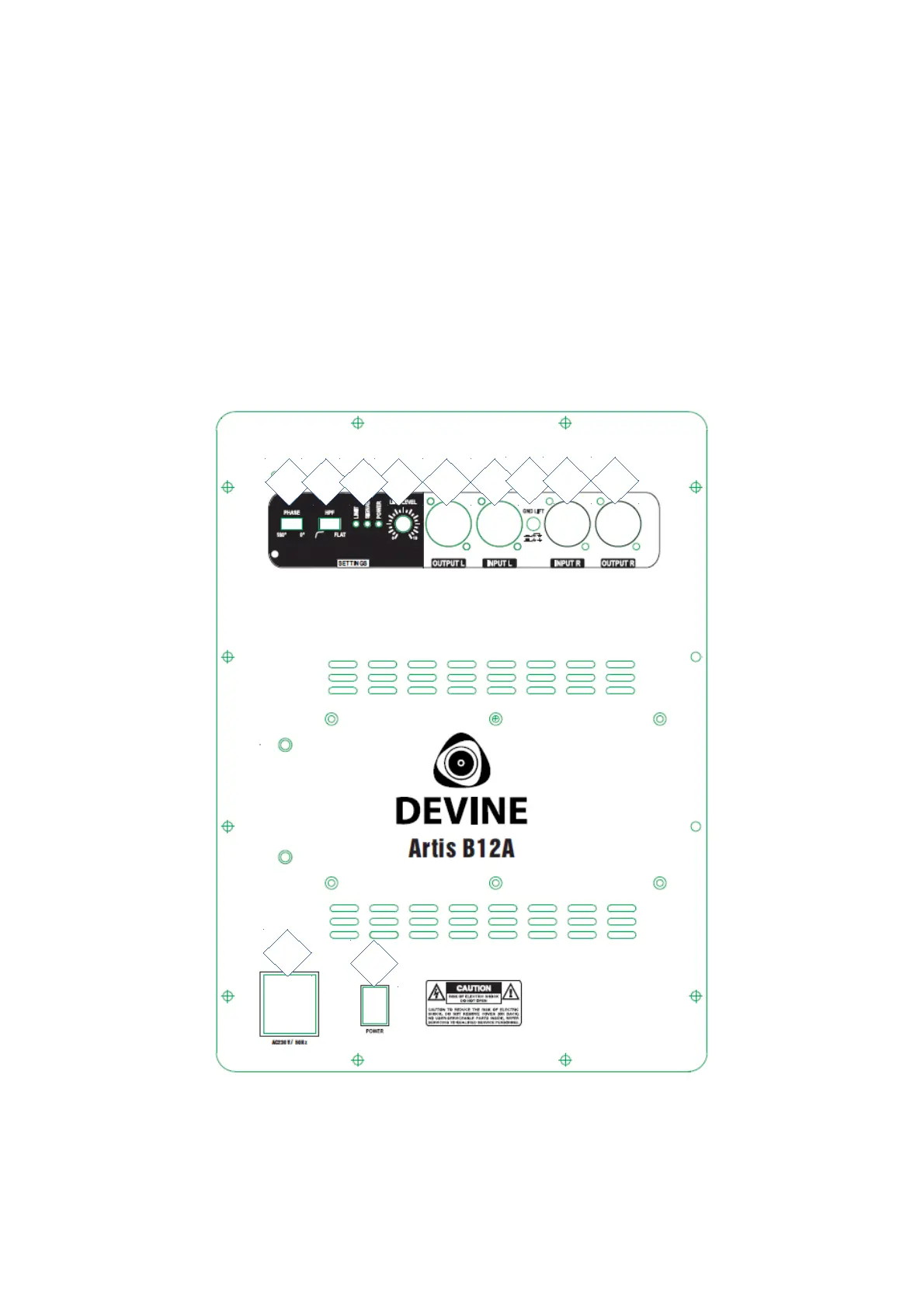

Guidelines and operation of this device
Please note - the image shown is for reference only and may differ slightly from the actual layout of your
device.
1. phase switch (0 - 180 degrees)
2. high pass filter (high pass or flat)
3. LED indicators for limit, signal reception and power
4. volume control
5. 3-pin XLR line signal output (high pass or flat depending on position switch)
6. ground lift switch to disconnect ground signal from inputs and outputs
7. 3-pin XLR line signal input
8. IEC C14 power input with fuse holder
9. on/off switch
The information in this user manual is subject to change at any time without notice.
Version:
1.0
Date of creation and author's initials:15-07-2019 RV Revision date and author's initials: -
