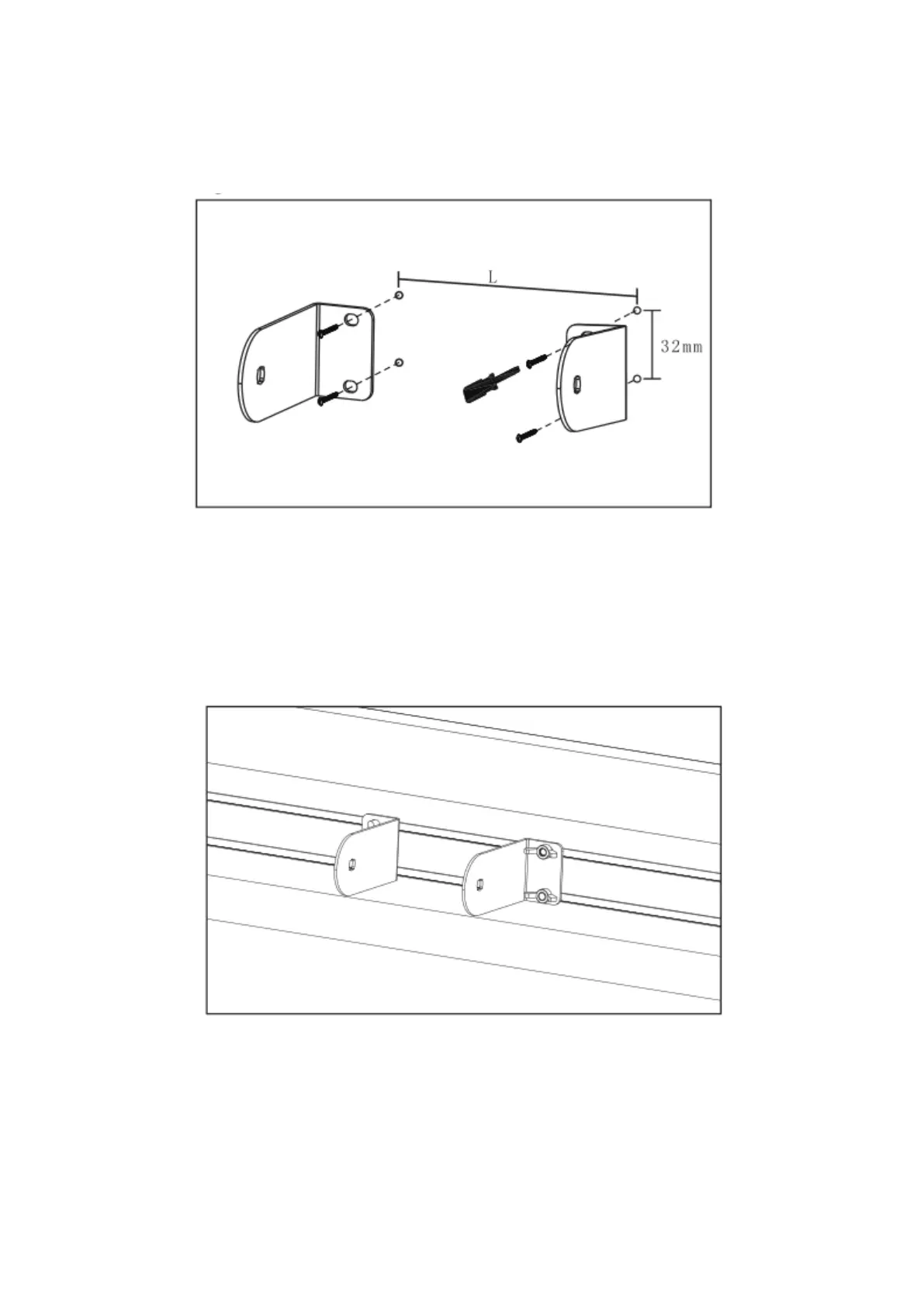

Figure A:
Remove the expansion rubber and screws from the accessory bag, drill four holes with a
diameter of 8mm on the wall. The hole depth is 70mm, the hole distance is 32mm,
(300mm≤L≤450mm) install the expansion rubber in the fitting in the hole, and then mount the
wall bracket from the accessories. Remove it and fix it to the wall with a 5*60 mm screw.
Figure B:
Place the wall bracket on the corresponding screw on the back of the heater, and then adjust the
wall bracket to the proper position with the nut from the accessory bag, then lock it to ensure it
will not loosen.
