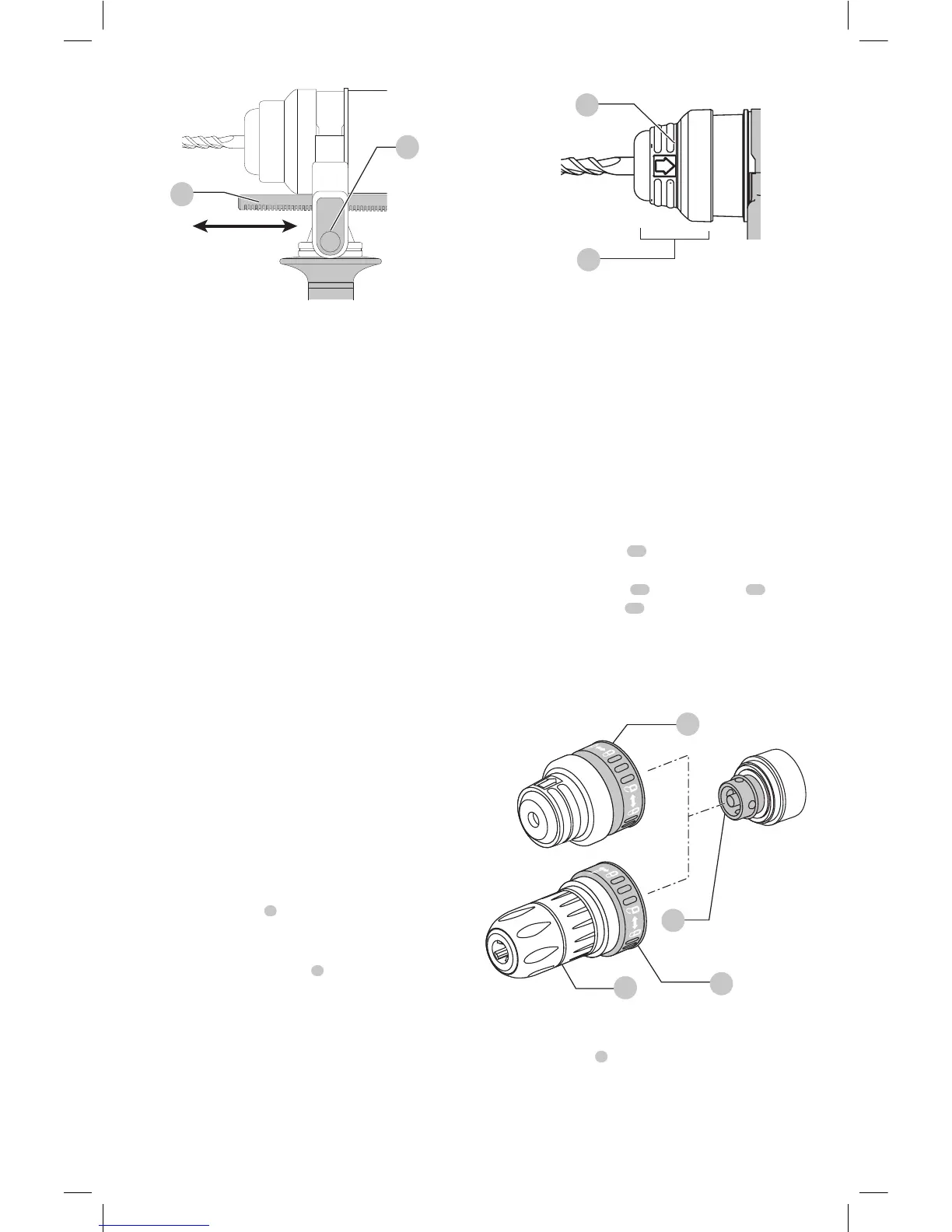

Fig. C
9
10
3. Release the button to lock rod into position. When
drilling with the depth rod, stop when end of rod
reaches surface ofmaterial.
Bit and Bit Holder

WARNING: Burn Hazard. ALWAYS wear gloves when
changing bits. Accessible metal parts on the tool and
bits may get extremely hot during operation. Small
bits of broken material may damage barehands.

WARNING: Do not attempt to tighten or loosen drill
bits (or any other accessory) by gripping the front part
of the chuck and turning the tool on. Damage to the
chuck and personal injury mayoccur.
The rotary hammer can be fitted with various chisel bits
depending on the desired application. Use sharp drill
bitsonly.
Bit Reccomendations
• For wood, use twist bits, spade bits, power auger bits or
holesaws.
• For metal, use high-speed steel twist drill bits or
holesaws. Use a cutting lubricant when drilling metals.
The exceptions are cast iron and brass which should be
drilleddry.
• For masonry, such as brick, cement, cinder block, etc.,
use carbide-tipped bits rated for percussiondrilling.
SDSPlus Bit Holder (Fig.D)
NOTE: Special adapters are needed to use the SDSPlus
bit holder with straight shank bits and hexagonal
screwdriverbits.
To Insert a Drill Bit or Other Accessory:
1. Insert the shank of the bit about 3/4" (19mm) into
SDSPlus tool holder
7
.
2. Push and rotate bit until it locks in place. The bit will be
securelyheld.
3. To release bit, pull the sleeve
8
back and remove
thebit.
Fig. D
7
8
To remove the bit, pull back the locking sleeve and pull the
bitout.
Keyless Chuck (Fig. E, F)
D25334
On some models, a keyless chuck can be installed in place of
the SDSPlus bitholder.

WARNING: Never use standard chucks in the rotary
hammeringmode.
Replacing the SDSPlus Bit Holder with the Keyless
Chuck
1. Select hammering only mode (see Operation Modes),
this locks the spindle to prevent it from rotating when
unlocking the removable toolholder.
2. Turn the locking collar
13
into the unlocked position
and pull the installed bit holderoff.
3. Push the keyless chuck
14
onto the spindle
15
and
turn the locking collar
13
into the lockingposition.
4. To replace the keyless chuck with the SDSPlus bit
holder, first remove the keyless chuck the same way as
the SDSPlus bit holder was removed. Then replace the
SDSPlus bitholder the same way as the keyless chuck
wasreplaced.
13
13
14
15
Fig. E
To Insert a Drill Bit or Other Accessory in Keyless
Chuck
1. Grasp the sleeve
8
of the chuck with one hand and use
the other hand grasping the base of thechuck.
2. Rotate the sleeve counterclockwise (as viewed from the
front) far enough to accept the desiredaccessory.
3. Insert the accessory about 3/4" (19mm) into the chuck
and tighten securely by rotating the chuck sleeve
