Inserting and Removing 1-1/8" (28 mm)
Hex Accessories (Fig. 2, 3)
D25960
This machine uses chisels with a

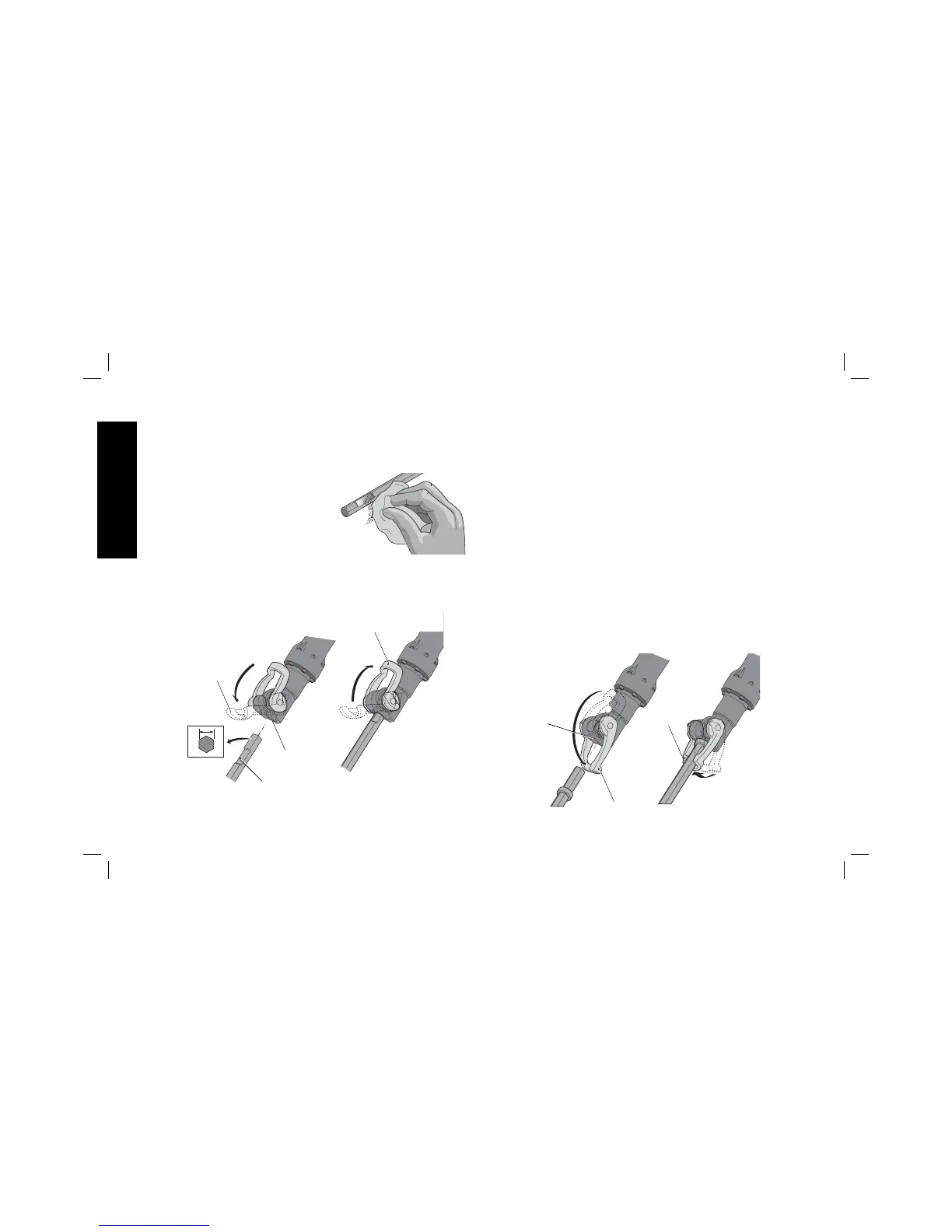

FIG. 2
1-1/8" (28 mm) hex shank.
Clean the chisel shank (Fig. 2).
TO FIT A CHISEL WITH GROOVE
IN THE SHANK (FIG. 3A)
1. Pull the tool retainer (D) to the
unlock position.
2. Hold the chisel in front of the tool holder with the groove (H)
facing upwards.
3. Insert the chisel shank into the tool holder (E). Ensure chisel
shank is correctly oriented as shown.
D
E
H
D
FIG. 3A
D25960
1-1/8"
(28 mm)
4. Push the retainer (D) backwards to lock the accessory in
position.
5. Pull on the chisel to check if it is properly locked.The hammering
function requires the chisel to be able to move axially several
centimeters when locked in the tool holder.
6. To remove a chisel pull back the retainer (D) and pull the chisel
out of the tool holder (E).
TO FIT A CHISEL WITH COLLAR ON THE SHANK (FIG. 3B)
1. Pull the tool retainer (D) to the unlock position.
2. Insert the chisel shank into the tool holder (E). Ensure chisel
shank is correctly oriented as shown.
3. Push the retainer (D) in line with the accessory shank to lock the
accessory in position.
4. Pull on the chisel to check if it is properly locked.The hammering
function requires the chisel to be able to move axially several
centimeters when locked in the tool holder.
5. To remove a chisel pull back the retainer (D) and pull the chisel
out of the tool holder (E).
D
D
E
FIG. 3B
