9
English

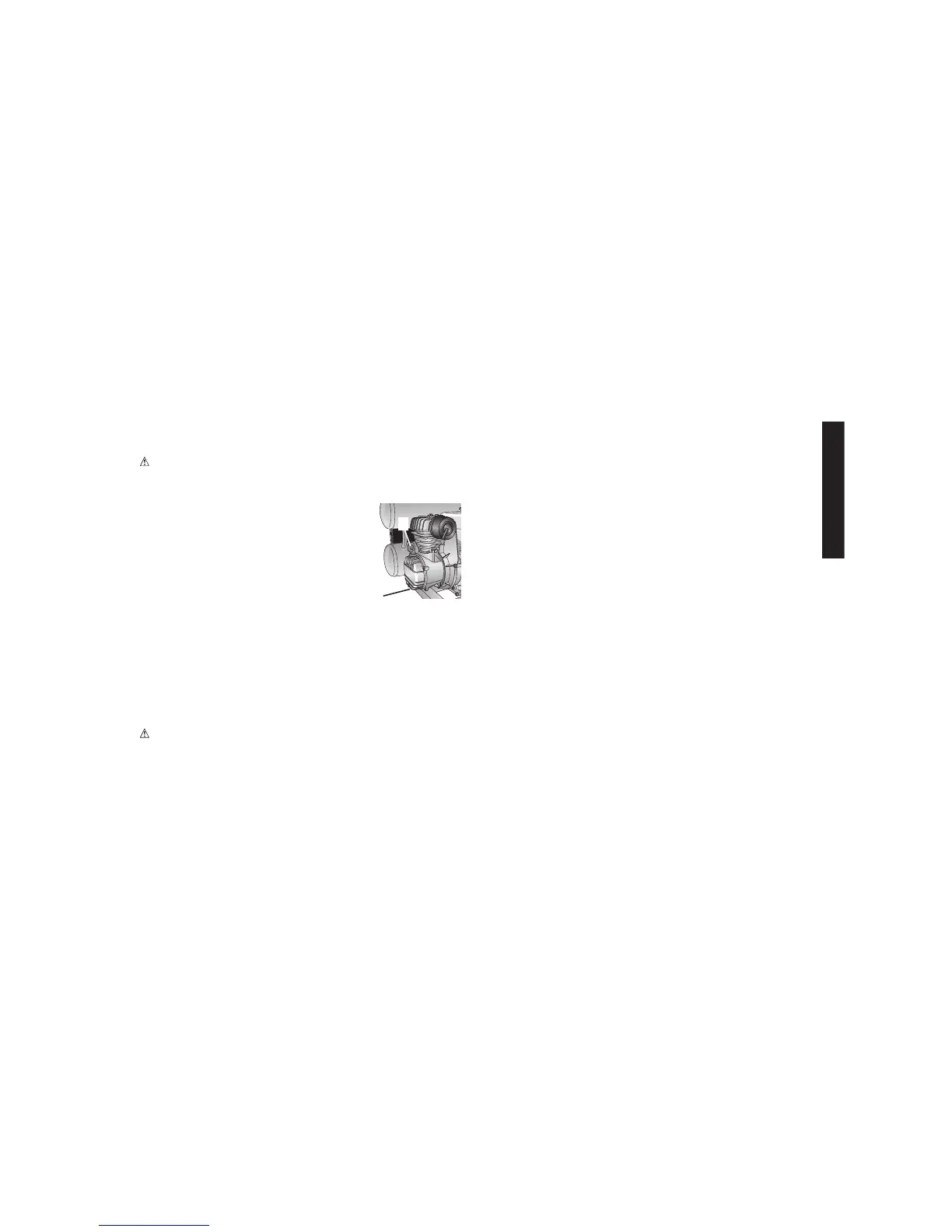

COMPRESSOR PUMP OIL CHANGE
NOTE: Pump oil contains substances that are regulated and must be
disposed of in accordance with local, state and federal laws and
regulations.
WARNING : Aftercooler, pump head, and surrounding parts are
very hot. Do not touch (see Hot Surfaces on page 2).
1. Ensure that the ON/OFF lever on the engine is in the OFF position.
2. Allow the compressor to cool.
3. Place a suitable container under the drain plug
(J).
4. Remove the oil dipstick (K) from crankcase.
5. Remove the oil drain plug.
6. Allow ample time for all the oil to drain out.
(Tilting the compressor towards the drain plug
will assist in draining.)
7. Re-install the oil drain plug.
8. Fill the pump with D
EWALT synthetic compressor oil (4 oz).
9. Re-install oil dipstick.
Accessories
Recommended accessories for use with your tool are available for
purchase from your local dealer or authorized service center. If you
need assistance in locating any accessory for your tool, contact:
D
EWALT Industrial Tool Co., 701 East Joppa Road, Baltimore,MD
21286 or call 1-800-4-DEWALT.
CAUTION: The use of any other accessory not recommended for
use with this tool could be hazardous.
Service Information
Please have the following information available for all service calls:
Model Number ___________________________
Serial Number ___________________________
Date and Place of Purchase ________________
Important
To assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustment should be performed by authorized service centers or
other qualified service personnel, always using identical replacement
parts.
Full One Year Warranty
DEWALT heavy duty industrial tools are warranted for one year from
date of purchase. We will repair, without charge, any defects due to
faulty materials or workmanship. For warranty repair information, call
1-800-4-D
EWALT. This warranty does not apply to accessories or
damage caused where repairs have been made or attempted by
others. This warranty gives you specific legal rights and you may have
other rights which vary in certain states or provinces.
FREE WARNING LABEL REPLACEMENT: If your warning labels
become illegible or are missing, call 1-800-4-DEWALT for a free
replacement.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
K
J
