DeWalt DC612 User Manual

Angled 20˚
J
H
G
L
E
D
A
F
E
A. Trigger
B. Contact trip lock-off
C. Depth adjustment
wheel
D. Headlights/Low
battery indicator
E. Jam clearing latch
F. Contact trip
G. Magazine
H. Pusher
I. Bump/sequential
selector switch
J. Reversible suspension
hook
K. No-mar pad
L. No-mar tip storage
Straight
K
Angled Straight
Nail 1-1/4'', 1-1/2", 1-3/4", 2", 2-1/2" 1-1/4'', 1-1/2", 1-3/4", 2", 2-1/2"
Lengths (32mm, 38mm, 44mm, 51mm, 65mm) (32mm, 38mm, 44mm, 51mm, 65mm)
Shank Diameters 16 gauge 16 gauge
Nail Stick Angles 20˚ 0˚
TOOL SPECIFICATIONS
NAIL SPECIFICATIONS

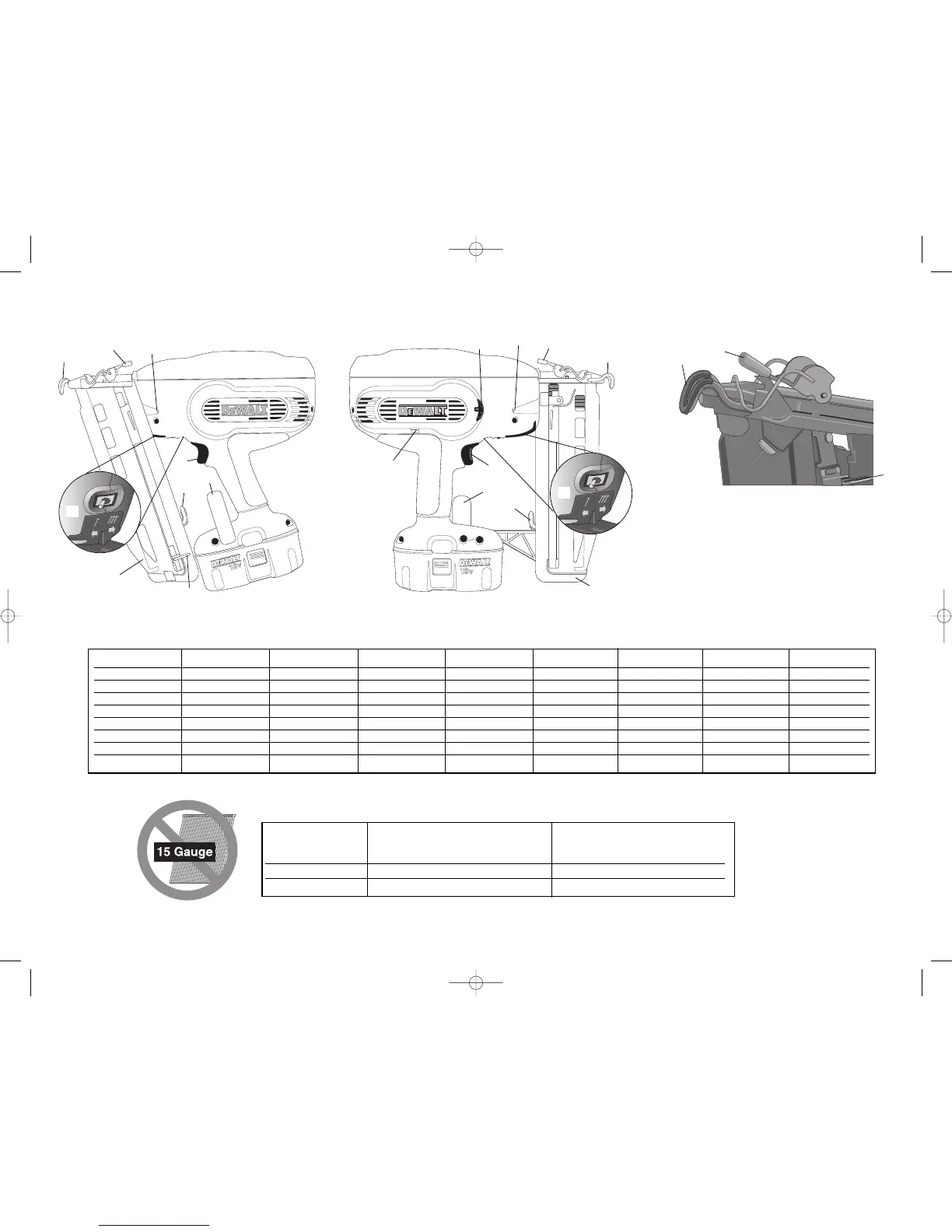

FIG. 1
I
DC612 DC613 DC614 DC615 DC616 DC617 DC618 DC619
Firing Mode Selective Sequential Selective Sequential Selective Sequential Selective Sequential
Voltage Multi (14.4 & 12) Multi (14.4 & 12) Multi (14.4 & 12) Multi (14.4 & 12) 18 18 18 18
Height 12'' (305mm) 12'' (305mm) 12.4'' (315mm) 12.4'' (315mm) 12'' (305mm) 12'' (305mm) 12.4'' (315mm) 12.4'' (315mm)
Width 4.18'' (106mm) 4.18'' (106mm) 4.18'' (106mm) 4.18'' (106mm) 4.18'' (106mm) 4.18'' (106mm) 4.18'' (106mm) 4.18'' (106mm)
Length 12.75'' (324mm) 12.75'' (324mm) 12.5'' (317mm) 12.5'' (317mm) 12.75'' (324mm) 12.75'' (324mm) 12.5'' (317mm) 12.5'' (317mm)
Weight 7.8lbs. (3.57kg) 7.8lbs. (3.57kg) 7.8lbs. (3.57kg) 7.8lbs. (3.57kg) 8.5lbs. (3.8kg) 8.5lbs. (3.8kg) 8.5lbs (3.8kg) 8.5lbs. (3.8kg)
Magazine Angle Straight Straight Angled 20˚ Angled 20˚ Straight Straight Angled 20˚ Angled 20˚
Loading Capacity Up to 110 Nails Up to 110 Nails Up to 120 Nails Up to 120 Nails Up to 110 Nails Up to 110 Nails Up to 120 Nails Up to 120 Nails
I
C
E
D
F
L
A
G
J
B
H
