5. Connect the water hose to the cold water source. Turn the
water source on to remove all air from the hose and flush
any debris. When a steady stream of water is present, turn
the cold water sourceoff.

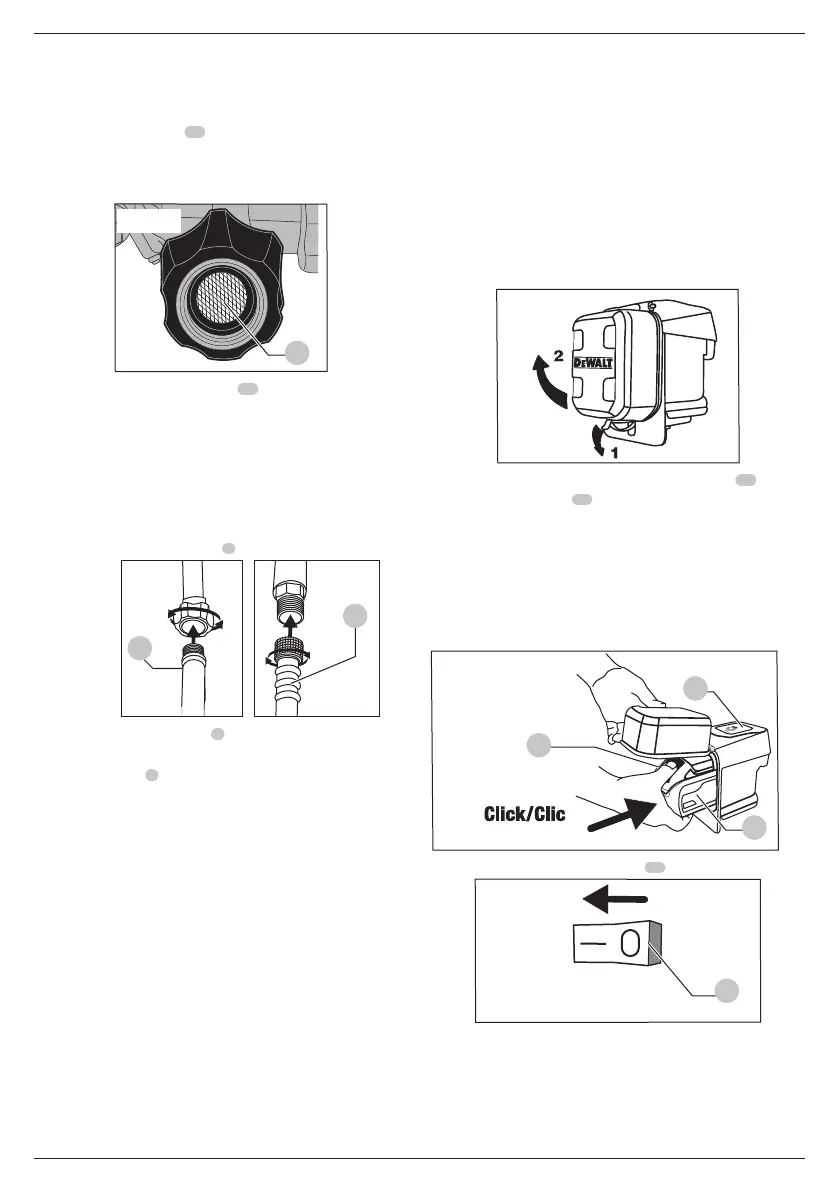

6. Verify the filter screen
14
is in water inlet of pump. If the
filter is not flat, convex side should faceout.
NOTICE: Failure to use an inlet screen filter may cause
damage to pump components and voidwarranty.
Fig. M
14
7. Connect the cold water source
15
to pump inlet. NOTE:
Water source must provide a minimum of 5 gallons per
minute at 20 psi (138 kPa). NOTE: The pressure washer
will not start in PRESSUREREADY® system mode with low
waterflow.

WARNING: To reduce the possibility of contamination
always protect against backflow when connected to a
potable watersystem.
8. Connect high pressure hose
9
to pumpoutlet.
Fig. N
15
9
9. Attach high pressure hose
9
to spray gun. Make sure it
issecure. SeeAssembly.
10. Connect wand
5
to spray gun. Make sure connection
issecure. SeeAssembly.
11. Connect the QC nozzle to the spray wand. Choose the
correct nozzle for the job to beperformed, see Spray Wand
Nozzles. If applying a chemical/cleaning soap, refer to
Chemicals/CleaningSoaps.
12. Turn the cold water sourceon.
NOTICE: Risk of property damage. Failure to do so could
cause damage to thepump.
13. Remove all air from the pump and high pressure hose
by squeezing the spray gun trigger for approximately 30
seconds or until a steady stream of water ispresent. Release
the spray guntrigger.
14. Install the battery pack:

WARNING:
• Make certain the engine ON/OFF switch is in the OFF
position to prevent switch actuation before removing
or installingbattery.
• DO NOT insert/remove battery while engine isrunning.
• ONLY USE
DeWALT rechargeable batteries, use of any
other battery will void thewarranty.
NOTE: For best results, make sure your battery pack is
fullycharged.
- Open battery housing cover: Push the spring lock
down (1) to unlock the cover and pull cover up to
open(2).
Fig. O
- To install battery pack: Insert battery pack
23
into
battery housing
12
as shown in Fig. P until fully seated
and an audible click is heard. Make sure battery pack is
fully seated and fully latched intoposition.
- Close and lock the battery housingcover.
- The green, yellow, and red light on the PRESSUREADY®
control box should illuminate momentarily and then
turn off. The blue light on the ON/STOP button should
beflashing.
Fig. P
24
23
12
15. Place the engine ON/OFF switch
27
in the ONposition.
OFF
ON
Fig. Q
27
ENGINE
