16. Press the ON/STOP button
28
for 2 seconds. The green
READY light will illuminate. The yellow WATER FLOW light
should also illuminate to verify the water is connected
properly and turnedon.

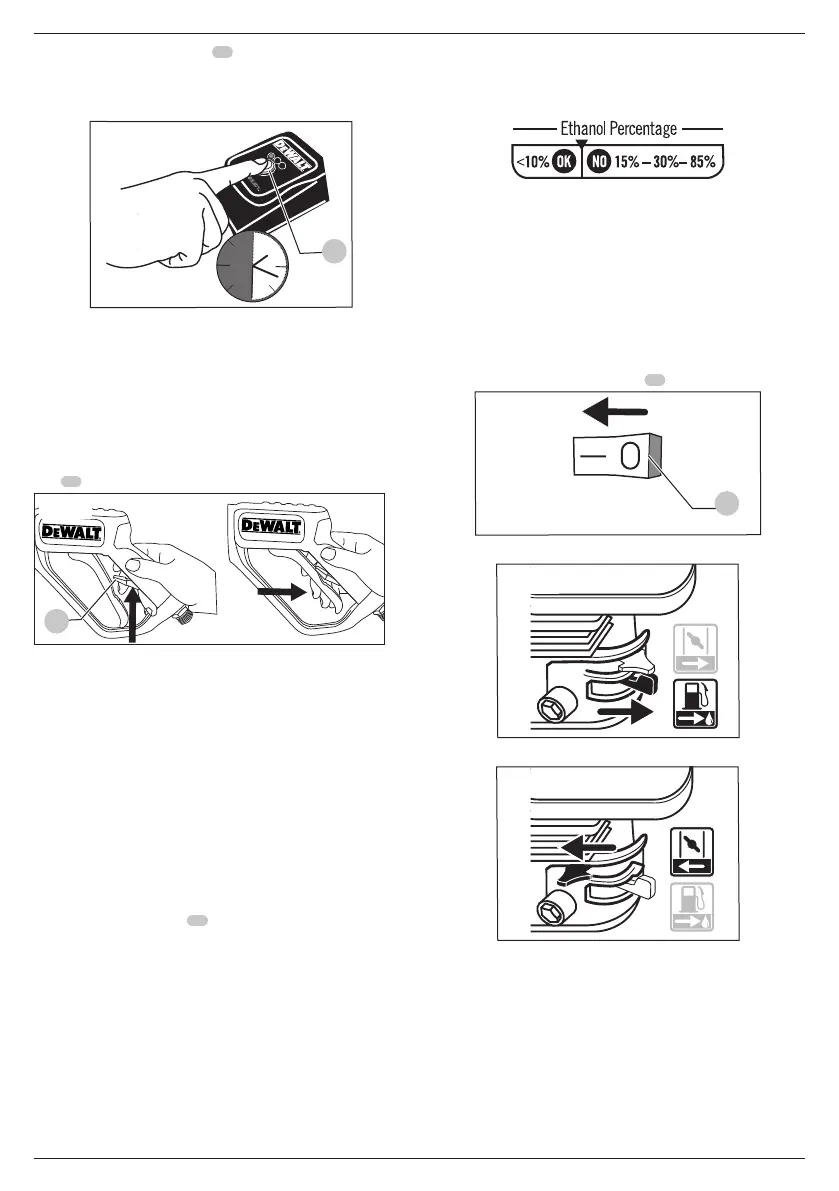

Fig. R
28
17. When the green system ready light illuminates, squeeze the
spray gun trigger to start the engine. After squeezing the
spray gun trigger it will take approximately 3 seconds for
engine to start. After the engine has started, the water flow
will begin and the yellow water flow light will illuminate.
See the PRESSUREADY® Fault Codes Table in the
Troubleshooting section for moreinformation.
NOTE: The spray gun is equipped with a spring loaded trigger
lock
16
. Manually release trigger lock as shown in Fig.S.
Fig. S
16

WARNING: Risk of unsafe operation. Stand on a stable
surface and grip spray gun/wand firmly with both hands.
Expect the spray gun/wand to kickback whentriggered.
18. When spray gun trigger is released, water flow will stop
immediately and the engine will shut off in approximately
10 seconds. Ensure spring loaded trigger lock is moved
forward into the lockedposition.
19. To restart pressure washer, manually release trigger lock and
squeeze the spray gun trigger and the engine will restart.
Note that it will take approximately 3 seconds for engine to
start after squeezing spray gun trigger. After the engine has
started, the water flow willbegin.

DANGER: Risk of injury from spray. Ensure the spring
loaded trigger lock
16
is moved forward to the locked
position, when the spray gun is not in use to prevent
accidentalspraying.
Alternate Manual Mode Start-up Procedure
(Without Battery) (Fig.B,T–Z)
1. In a well-ventilated outdoor area, add fresh, high-quality,
unleaded petrol with a pump octane rating of 86 or
higher. Do not overfill. Wipe up spilled fuel before starting
the engine. Refer to engine instruction manual for
correctprocedure.
IMPORTANT: Ethanol Shield™ (sold separately) is a fuel
stabilizer that helps eliminate and prevent ethanol related
problems in power equipment. Follow the instructions on
the container and add to thepetrol.
NOTICE: Use of fuels with greater than 10% ethanol are
not approved for use in this product per EPA regulations
and will damage the unit and void thewarranty.
2. Check engine oil level. Refer to the engine instruction
manual for correctprocedure.
NOTICE: The engine is shipped without oil. Before starting
engine, add the oil provided. Damage to the engine will
occur if the engine is run without oil, this damage will not
be covered underwarranty.
3. Place the engine ON/OFF switch
27
in the ONposition.
OFF
ON
Fig. T
27
ENGINE
4. Place the fuel valve lever in the ONposition.
Fig. U
5. Move the choke to the CLOSEDPosition.
Fig. V
6. Connect the water hose to the cold water source. Turn the
cold water source on to remove all air from the hose and
flush any debris. When a steady stream of water is present,
turn the cold water sourceoff.
