DeWalt DCB113 User Manual

6
ENGLISH
Date Code Position (Fig.A)
The date code
1
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2020 XX XX
Year of Manufacture
Package Contents
The package contains:
1 Battery charger
1 Li‑Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models)
2 Li‑Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models)
3 Li‑Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by DeWALT is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Charge only between 4˚C and 40˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge DeWALT battery packs only with designated
DeWALT chargers. Charging battery packs other
than the designated DeWALT batteries with a
DeWALT charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108Wh (1 battery with 108Wh).
TRANSPORT (with built‑in transport cap). Example:
Wh rating indicates 3x 36Wh (3batteries of 36Wh).
Charging a Battery (Fig. A)
1. Plug the charger into an appropriate outlet before inserting
batterypack.
2. Insert the battery pack into the charger, making sure the
battery pack is fully seated in the charger. The red (charging)
light will blink repeatedly indicating that the charging
process hasstarted.
3. The completion of charge will be indicated by the red
light remaining ON continuously. The battery pack is fully
charged and may be used at this time or left in the charger.
To remove the battery pack from the charger, push the
battery release button on the batterypack.
NOTE: To ensure maximum performance and life of lithium‑ion
battery packs, charge the battery pack fully before firstuse.
Charger Operation

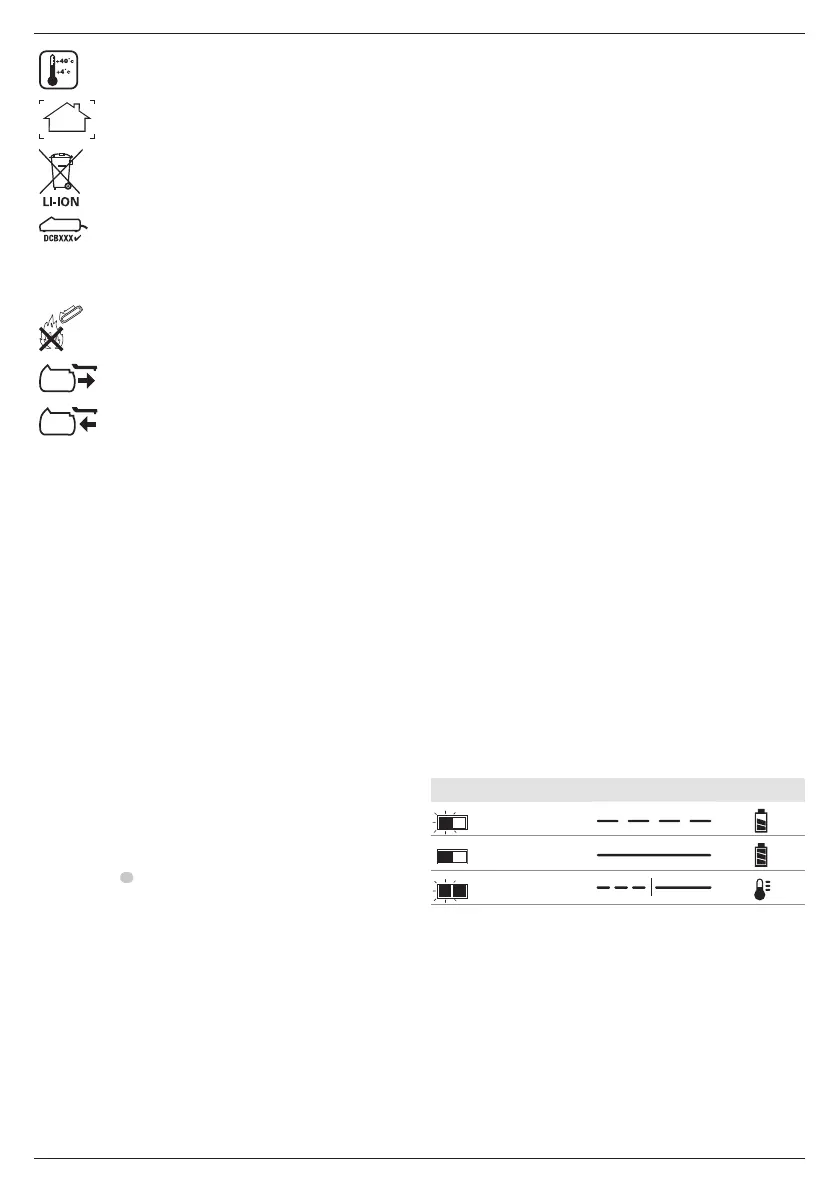

Refer to the indicators below for the charge status of the
batterypack.
Charge Indicators
Charging
Fully Charged
Hot/Cold Pack Delay*
* The red light will continue to blink, but a yellow indicator light
will be illuminated during this operation. Once the battery pack
has reached an appropriate temperature, the yellow light will
turn off and the charger will resume the chargingprocedure.
The compatible charger(s) will not charge a faulty battery pack.
The charger will indicate faulty battery by refusing tolight.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and battery
pack to be tested at an authorised servicecentre.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start‑up can causeinjury.

WARNING: Use only DeWALT battery packs andchargers.
These battery chargers and battery packs are professional
powertools.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Intended Use
The DCB113 charger is designed for charging 10.8V, 12V, 14.4V,
18V Li‑Ion XR battery packs (DCB122, DCB124, DCB125, DCB127,
DCB141, DCB142, DCB143, DCB144, DCB145, DCB181, DCB182,
DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187,
DCB189, DCB546, DCB547,DCB548).
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.

DeWalt DCB113 Specifications

General

Charger Type	Battery Charger
Voltage	12V/20V MAX
Input Voltage	120V AC
Charging Chemistry	Lithium Ion
Charging Current	3.0 A
Overcharge Protection	Yes
Compatibility	DEWALT 12V MAX* and 20V MAX* Batteries
Output Voltage	12V/20V Max
LED Indicators	Yes
Weight	1.5 lbs
