PACK CHARGING
PACK CHARGED
HOT/COLD DELAY
Charge Indicators
HOT/COLD PACK DELAY
DCB107, DCB112
The DCB107 and DCB112 chargers have a hot/cold delay feature.
When the charger detects a battery that is hot, it automatically delays
charging until the battery has cooled. When the charger detects a
battery that is cold, it automatically delays charging until the battery
has warmed.
The red light will continue to blink, but a yellow indicator light will be
illuminated during this operation. Once the battery has cooled, the
yellow light will turn off and the charger will resume the charging
procedure.
LEAVING THE BATTERY PACK IN THE CHARGER
The charger and battery pack can be left connected with the charge
indicator showing Pack Charged.
WEAK BATTERY PACKS: Weak batteries will continue to function
but should not be expected to perform as much work.
FAULTY BATTERY PACKS: This charger will not charge a faulty
battery pack. The charger will indicate faulty battery pack by refusing
to light or by displaying problem pack or charger.
NOTE: This could also mean a problem with a charger.
Chargers
Your tool uses a DEWALT charger. Be sure to read all safety instructions
before using your charger. Consult the chart on the back cover of this
manual for compatibility of chargers and battery packs.

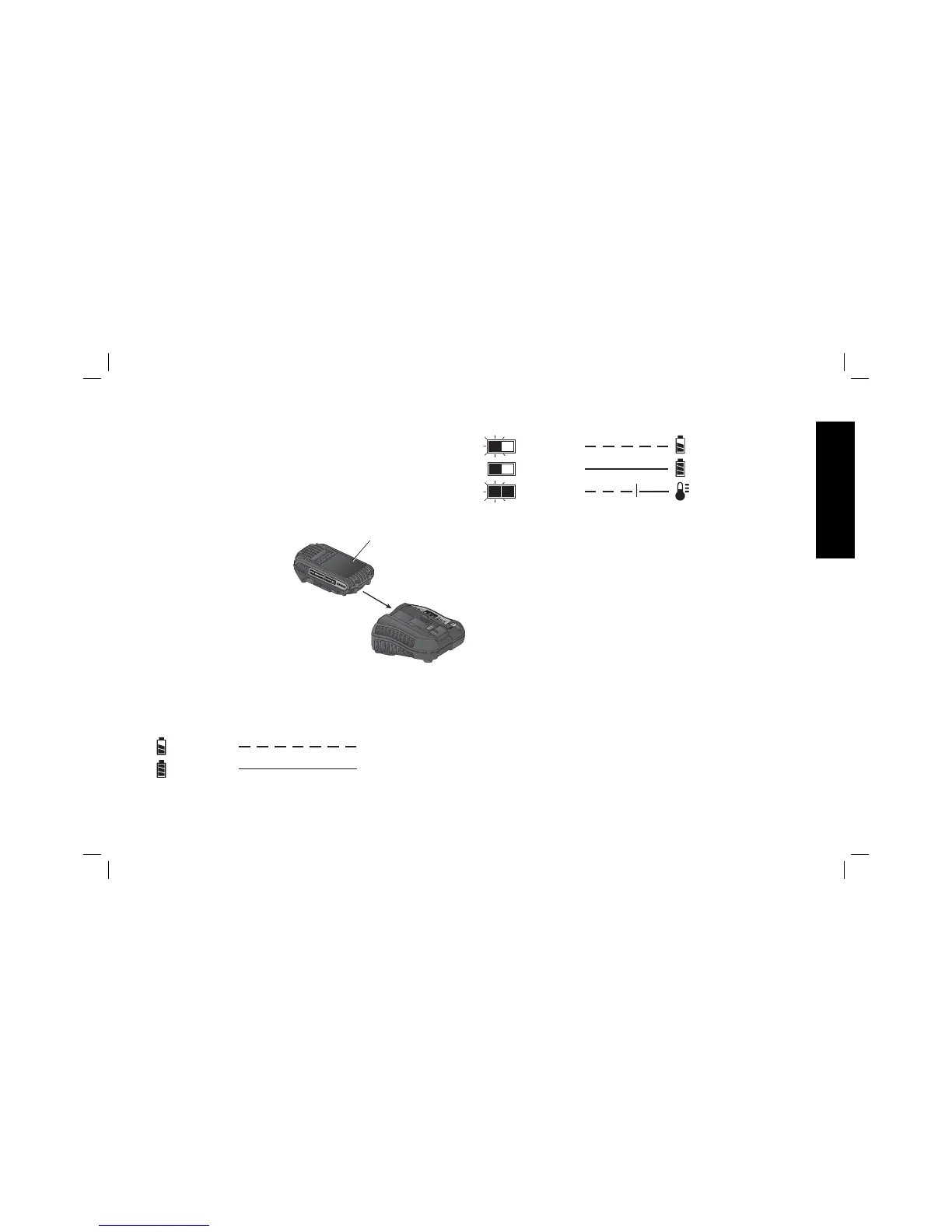

Charging Procedure (Fig. 1)
1. Plug the charger into an appropriate outlet before inserting
battery pack.
2. Insert the battery pack
H
FIG. 1
(H) into the charger, as
shown in Figure 1,
making sure the pack
is fully seated in
charger. The red
(charging) light will
blink continuously
indicating that the
charging process has
started.
3. The completion of
charge will be indicated
by the red light remaining ON continuously. The pack is fully
charged and may be used at this time or left in the charger.
Indicator Light Operation
DCB106
PACK CHARGING
PACK CHARGED

DeWalt DCD710 Specifications

General

Number of gears	2
Torque settings	15
Chuck capacity (max)	10 mm
Chuck capacity (min)	1 mm
Idle speed (1st gear)	400 RPM
Idle speed (2nd gear)	1500 RPM
Drilling diameter in wood (max)	20 mm
Maximum torque (hard applications)	24 N⋅m
Maximum torque (soft applications)	15 N⋅m
Vibration emission	2.5 m/s²
Product color	Black, Yellow
Chuck type	Keyless
Built-in light	Yes
Product design	Pistol grip drill
Number of batteries included	2 pc(s)
Power source	Battery
Battery voltage	10.8 V
Battery capacity	2 Ah

Weight and Dimensions

Depth	185 mm
Width	50 mm
Height	195 mm
Weight	1100 g
