DeWalt DCD805H2T - Assembly and Adjustments

34
ENGLISH
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect tool from power
source before making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.
Description (Fig.A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Trigger switch
2
Forward/reverse control button
3
Torque adjustment collar
4
Gear shifter
5
Worklight
6
Keyless chuck
7
Chuck sleeve
8
Belt hook
9
Mounting screw
10
Bit holder
11
Battery pack
12
Battery release button
13
Worklight switch
Intended Use
These drills/drivers/hammerdrills are designed for professional
drilling, percussion drilling and screwdrivingapplications.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
These drills/drivers/hammerdrills are professional powertools.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Date Code Position (Fig.B)
The date code
14
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2022XX XX
Year and Week of Manufacture
Markings on Tool
The following pictograms are shown on the tool:
a
Read instruction manual beforeuse.
n
Visible radiation. Do not stare intolight.
Package Contents
The package contains:
1 Drill/driver or 1drill/driver/hammerdrill
1 Charger
1 Li‑Ion battery pack (C1, D1, E1, G1, H1, L1, M1, P1, Q1, S1, T1,
U1, X1, Y1, Z1 models)
2 Li‑Ion battery packs (C2, D2, E2, G2, H2, L2, M2, P2, Q2, S2,
T2, U2, X2, Y2, Z2 models)
3 Li‑Ion battery packs (C3, D3, E3, G3, H3, L3, M3, P3, Q3, S3,
T3, U3, X3, Y3, Z3 models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by D
eWALT is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Battery Type
The following tools operate on an 18 volt battery pack:
DCD800, DCD805
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB183G, DCB184, DCB184B, DCB184G, DCB185,
DCB187, DCB189, DCBP034, DCB546, DCB547, DCB549,
DCBP518. Refer to Technical Data for moreinformation.
Inserting and Removing the Battery Pack
from the Tool (Fig.B)
NOTE: Make sure your battery pack
11
is fullycharged.
To Install the Battery Pack into the Tool Handle
1. Align the battery pack with the rails inside the tool’s
handle(Fig. B).
2. Slide it into the handle until the battery pack is firmly seated
in the tool and ensure that you hear the lock snap intoplace.
To Remove the Battery Pack from the Tool
1. Press the battery release button
12
and firmly pull the
battery pack out of the toolhandle.
z
Do not incinerate the batterypack.

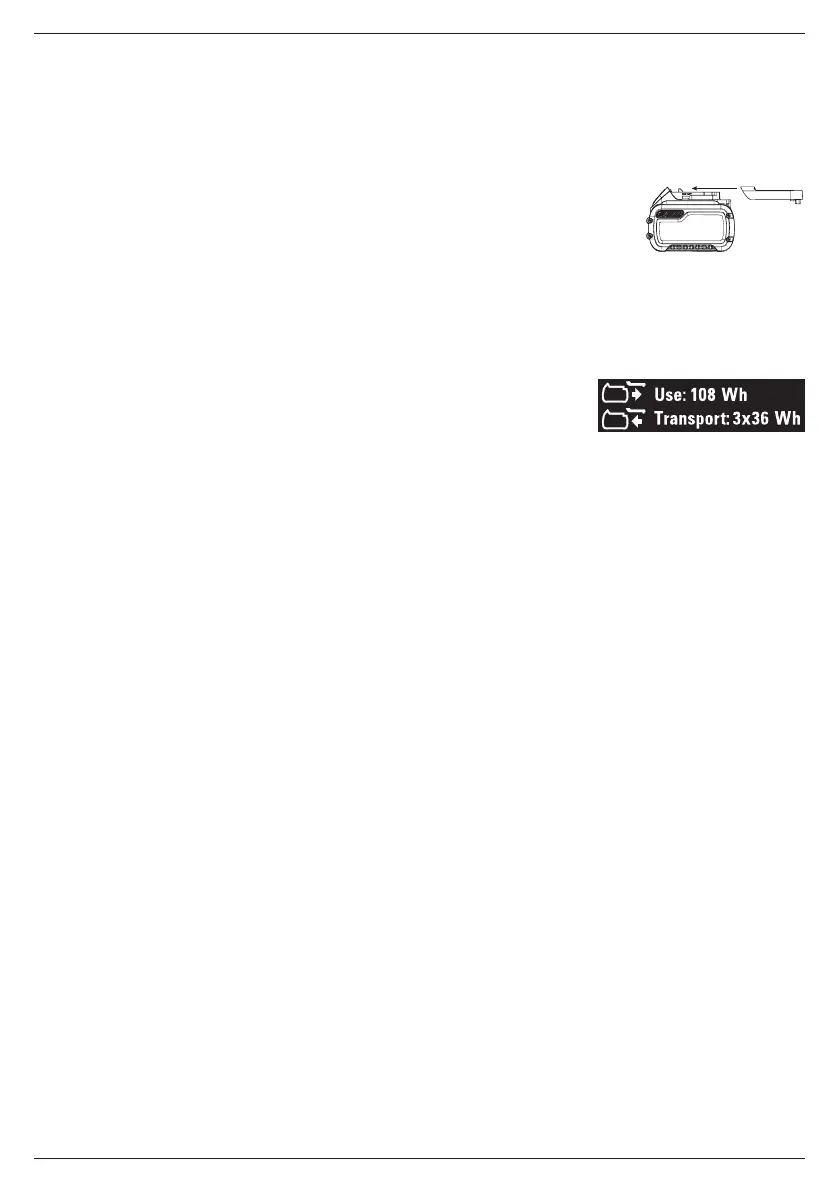

B
USE (without transport cap). Example: Wh rating
indicates 108Wh (1battery with 108Wh).
A
TRANSPORT (with built‑in transport cap). Example: Wh
rating indicates 3x 36Wh (3batteries of 36Wh).
