DeWalt DCMW220X2 - Rear Discharge; Operation; Installing and Removing the Battery

ENGLISH
9
Fig. E
7
5
9
8

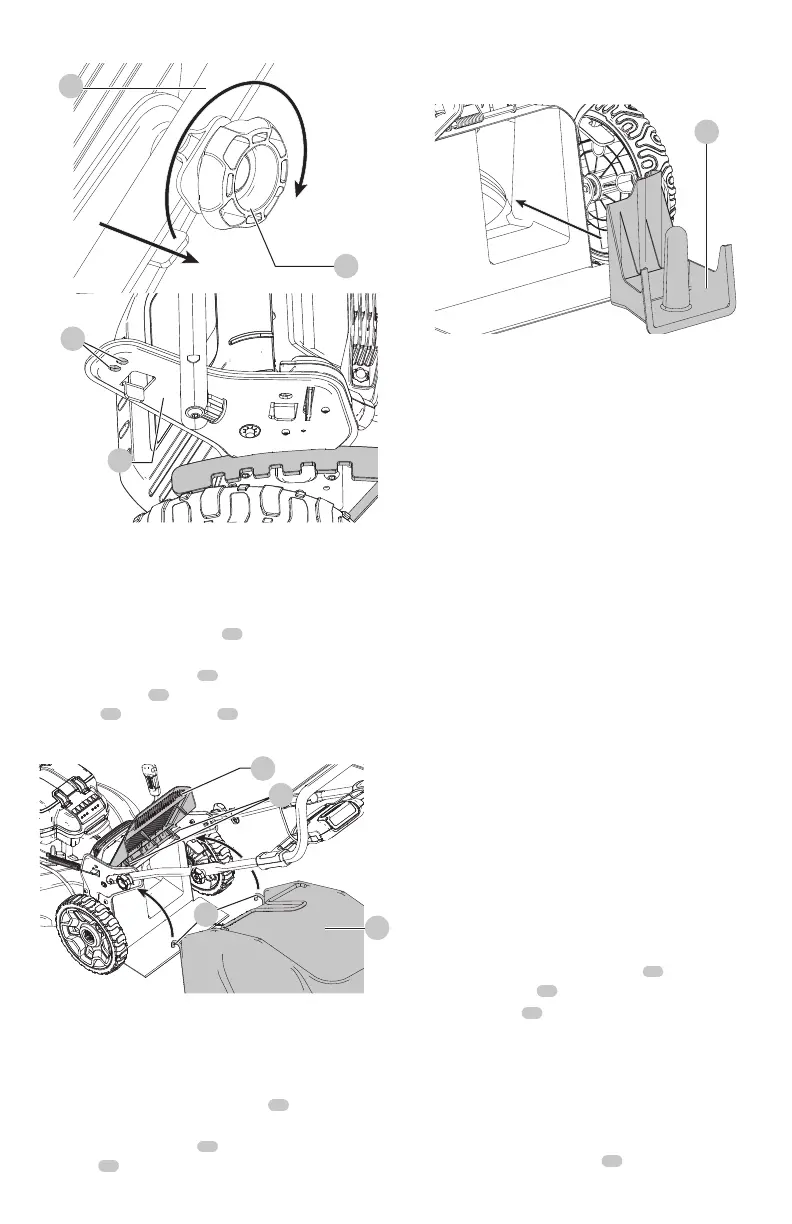

Grass Collection Bag (Fig. F)

DANGER: Remove safety key and battery packs before
removing mulching insert, and when opening rear
door cover and installing bag.
1. Ensure the mulching insert
20
(Fig. G) is removed from
the mower beforeproceeding to step 2.
2. Lift the rear door cover
13
and place the grass
collection bag
14
onto the mower so the bag
hooks
21
rest on the lugs
22
as shown in Fig. F. Then
lower the rear doorcover.
Fig. F
13
14
21
22
Grass Mulching Insert (Fig. G)

DANGER: Remove safety key and battery packs
before removing collection bag, and when installing
mulchinginsert.
1. Ensure the the grass collection bag
14
is notattached
beforeproceeding to step 2.
2. Lift the rear door cover
13
and slide the mulching
insert
20
fully into the mower as shown in Fig.G.
3. Ensure the rear door cover is down before turning
mower on.
Fig. G
20
Rear Discharge

DANGER: Remove safety key and battery packs before
removing collection bag, and mulchinginsert.
1. To operate mower in rear discharge mode remove both
the bag and the mulching insert.
2. Be sure rear door cover is down for rear discharge.
NOTE: The rear door is shaped in such a way that the
opening (at the bottom) cannot be completely closed off.
OPERATION

DANGER: To reduce the risk of serious personal
injury, turn unit off, remove safety key, and
remove battery packs before making any
adjustments or removing/installing attachments
or accessories. An accidental start-up can
causeinjury.
Installing and Removing the Battery
Packs (Fig. H)

DANGER: MAKE CERTAIN THE SAFETY KEY IS
REMOVED TO PREVENT ACTUATION BEFORE
REMOVING OR INSTALLINGBATTERY.
This mower is designed to operate on two battery packs
of equal capacity. The mower will not operate on a single
battery pack, and If using different capacity battery packs,
the smaller capacity battery pack, when depleted, will cause
the unit to turn off
NOTE: For best results, make sure each battery pack is
fullycharged.
To Install Battery Packs
1. Lift and hold the battery port cover
11
up to expose
the battery ports
21
.
2. Slide a battery
18
into each of the two battery ports
until an audible click is heard (Fig. H). Make sure
the battery packs are fully seated and fully latched
intoposition.
3. Close the battery port cover. Ensure the cover is fully
closed before startingmower.
To Remove Battery Packs
1. Open the battery port cover
11
as describedabove.
