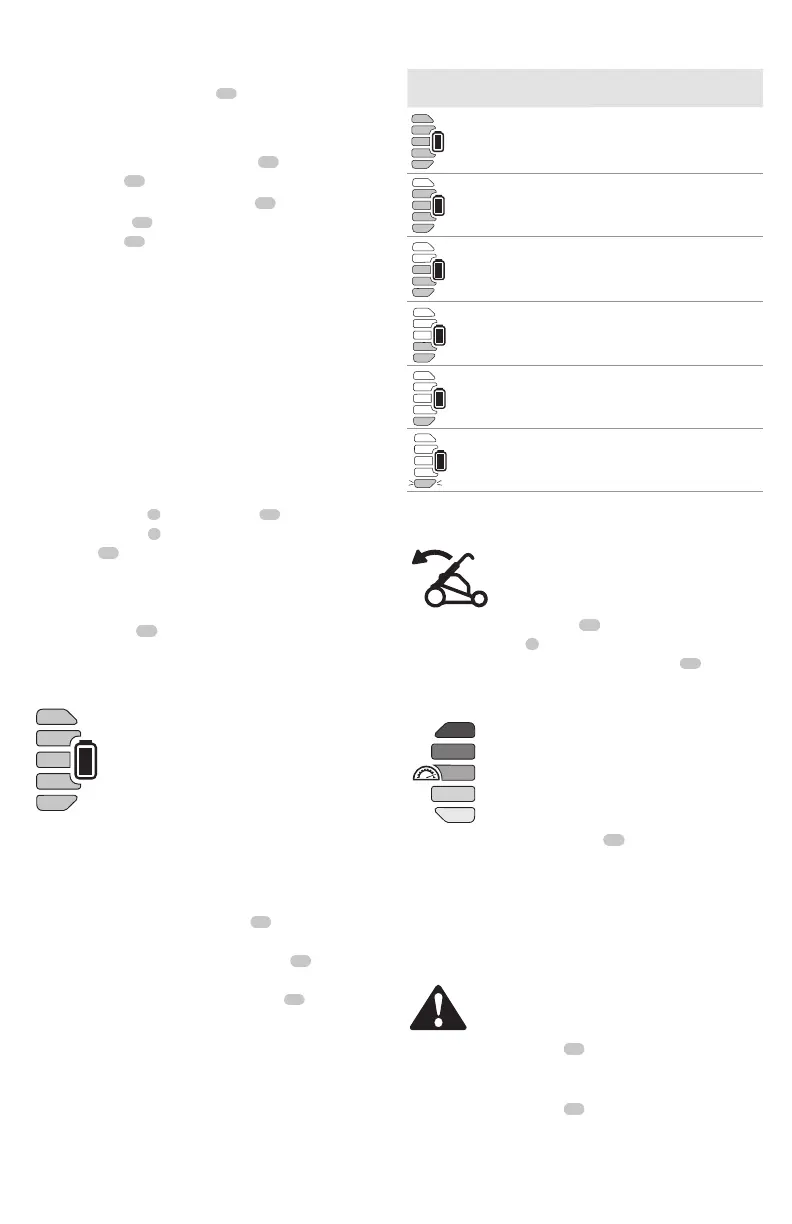

State of Charge Indicator LED Status
LEVEL OF CHARGE
CHARGE INDICATOR
LEDCOLOR
100% - 85% White
70% - 85% White
50% - 70% White
25% - 50% White
≤25% White
Low battery shutdown White and blinking
Handle Folding Indicator (Fig.U)
The handle folding indicator
15
will illuminate when the
single touch handle
1
is not engaged in the operating
position. To clear the handle folding indicator
15
, refer to
the Raise the Single Touch Handle section inthismanual.
Cutting Load Meter Indicator (Fig.U)
The cutting load meter indicator
14
will illuminate white,
yellow or red when mowing.
• White indicates a low cutting load.
• Yellow indicates a medium cutting load.
• Red indicates a high cutting load. Runtime will be
reduced if there is a prolonged high load while mowing.
Overheat Indicator (Fig.U)
• The overheat indicator
13
will illuminate amber and
then blink when the batteries or motor is overloaded
during operation.
• The overheat indicator
13
will illuminate red and then
blink when the module has reached a high temperature.
Control Panel Indicators (Fig.A, U)
The control panel
12
contains the state of chargeindicator,
load meter indicator, temperature indicator, handle folding
indicator, blade sharpening indicator and reset button.
State of Charge Indicator (Fig. U)
The DCMWP234 and DCMWSP256 are equipped with a
state of charge indicator. This will display the current level of
charge in the batteries during use. It does not indicate tool
functionality and is subject to variation based on product
components, temperature and end-userapplication.
• The state of charge indicator LEDs
18
will illuminate,
indicating the percent of charge in the batteries.
• When all 5 state of charge indicator LEDs
18
illuminate,
the batteries are fully charged.
• When one state of charge indicator LED
18
illuminates,
charge is low and then it will flash when the batteries
aredischarged. Remove thebatteries and charge them.
Safety Key (Fig. T)

DANGER: Sharp moving blade. In order to prevent
accidental start‑up or unauthorized use of your
cordless mower, a removable safety key has been
incorporated into the design of your mower. The mower
will be completely disabled when the safety key has
been removed from themower.

DANGER: Rotating blades can cause serious
injury. To prevent serious injury, turn unit off and
remove safety key and battery packs when unattended,
or when charging, cleaning, servicing, transporting,
lifting, or storingmower.
1. Insert safety key
6
into the key slot
50
, located on
the main handle
4
, until it is fully seated inside of the
keyslot
50
as shown in Fig. T.
2. The mower is now operational.
NOTE: Ensure both battery packs are fully seated and
fully latched intoposition before startingmower.
3. Close the battery port cover
19
. Ensure the cover is fully
closed before startingmower.
To Remove the Battery Packs
1. Lift and hold the battery port cover
19
up to expose the
battery port
38
.
2. Depress the battery release button
27
on the
batterypacks
26
and pull the battery packs out ofthe
batteryport
38
.
