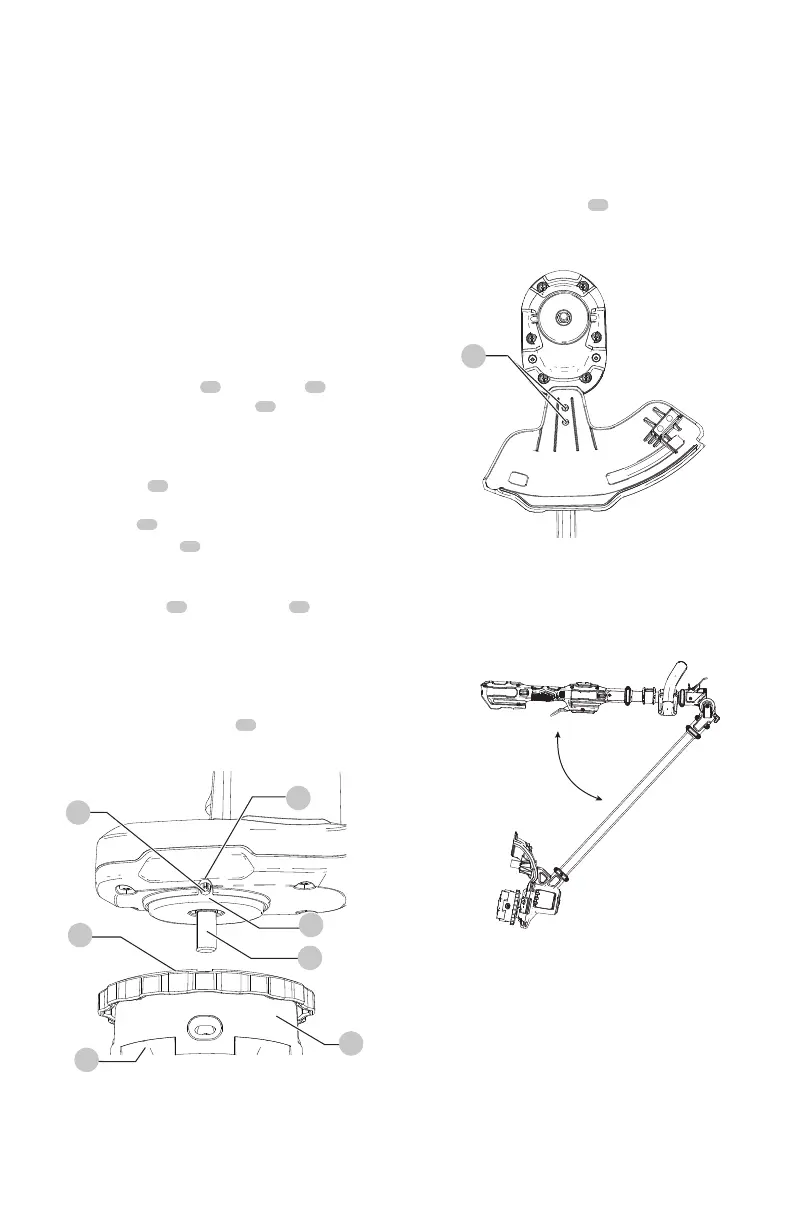

ENGLISH
12
Replacement Accessories
Replacing Spool Assembly (Fig.A, N)
1. Rotate the spool housing
10
until the hole
31
in
the spindle plate aligns with notch
32
in the motor
housing. Insert a screwdriver through the notch and into
the hole, to prevent the spindle fromturning.
2. Unscrew and remove the spool housing by turning the
spool grip cover
29
clockwise.
NOTE: Do not try to remove the spool by turning the
spool housing
28
.
3. Remove spindle plate
34
before installing a new spool.
Remove any dirt and grass from the motor housing and
spindleplate.
4. Install spindle plate
34
onto the spindle
33
, so the
double D shaped retaining nut on the spindle sits inside
the base of the spindleplate.
5. Align the spindle plate hole and notch, insert a
screwdriver back into the hole and thread the new spool
housing counterclockwise. Securely tighten the new
spool housing onto the spindle
33
.
Fig.N
33
29
28
32
30
34
Replacing Guard (Fig. O)
An extended coverage guard is available (sold separately)
for extra coverage if desired. Use DeWALT replacement
guard Part NumberN496261.
WARNING: Never operate appliance
without guard firmly inplace.
1. Remove the 2 guard screws
21
.
2. Attach the new guard as described in the Attaching
Guardsection.
Repairs
The charger and battery pack are notserviceable. There are
no serviceable parts inside the charger or battery pack.
WARNING: To assure product SAFETY
and RELIABILITY, repairs, maintenance and adjustment
(including brush inspection and replacement, when
applicable) should be performed by a DeWALT factory
service center or a
DeWALT authorized service center.
Always use identical replacementparts.
Fig.O
21
Folding for Storage or Transportation (Fig. P)
The string trimmer can be folded for storage or
transportation. To put the string trimmer in the folded
position, please refer to Extending and Folding the Pole.
Fig.P
Accessories
WARNING: Since accessories, other than
those offered by
DeWALT, have not been tested with
this product, use of such accessories with this tool
could be hazardous. To reduce the risk of injury, only
DeWALT recommended accessories should be used
with thisproduct.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
service center. If you need assistance in locating any
accessory, please contact
DeWALT call 1-800-4-DeWALT
(1-800-433-9258) or visit our website: www.dewalt.com.
31

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the DeWalt DCST922 and is the answer not in the manual?

DeWalt DCST922 Specifications

General IconGeneral
Power SourceBattery
Voltage20V MAX
FoldableYes
Feed TypeBump Feed
Variable SpeedYes
Bump FeedYes
Line Diameter0.080 in
Battery TypeLithium-Ion
