English
9
e. Screen
f. Camera cable on/off switch / LED brightness
control switch
g. Handle set
h. Micro SD slot for micro SD memory cards
16 GB or less
i.

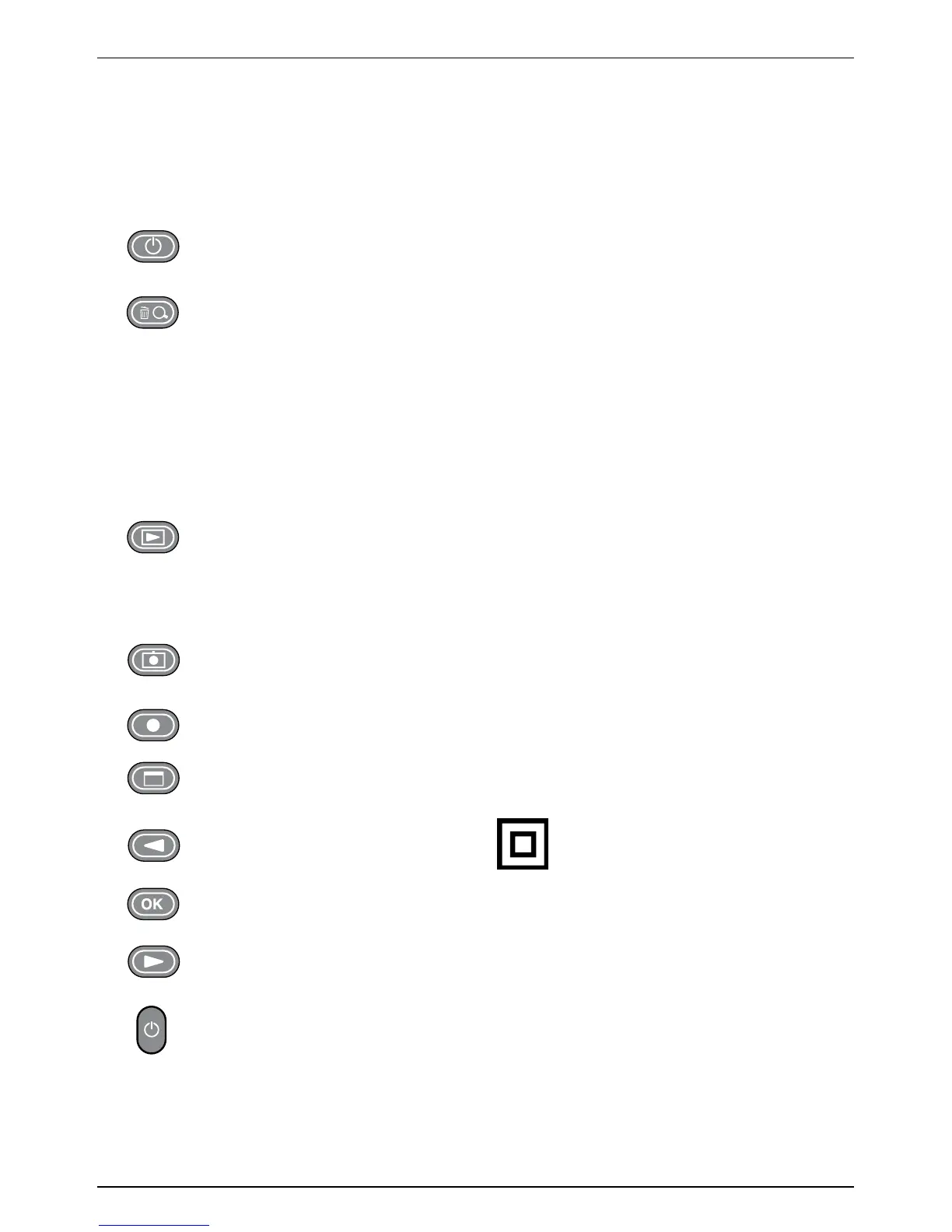

Power button for the screen: Both
the screen and the camera cable (f)
need to be turned on.
j.
Zoom/Delete button:
The button has 2 functions:
Zoom: This is to be used
when you need a
closer look at the
object (3x zoom).
Delete: When in the folder
menu, pictures can
be deleted by using
this button.
k.
Play: Press the button to go to the
folder where photos and videos are
saved.
OR
Press the button to play videos.
l.
Camera: Press this button for taking a
photo.
m. Record: Press this button to start and
stop recording a video.
n.
Main Menu: Press this button to
show a list of options for operating the
inspection camera or to exit a screen.
o.
Back Arrow: Press this button to
navigate backward.
p.
OK: Press this button to save
changes.
q. Forward Arrow: Press this button to
navigate forward.
r.
Power indicator for the handle set:
When the green light is on it indicates
that the handle set is on.
s. Reset button
INTENDED USE
The inspection camera is designed to play real-time
video while looking into walls and/or tight spaces.
With a micro SD card (sold separately), the tool can
then take photos or record videos for documentation
purposes.
Photos are saved in JPG format and videos are
saved as AVI. This D
eWALT inspection camera is
compatible with micro SD memory cards up to
16 gigabytes.
Applications consist of automotive inspection,
plumbing inspection, HVAC inspection or cable
routing. Read the entire manual before using this
inspection camera.
DO NOT use in presence of flammable liquids or
gases. The camera cable extension is waterproof up
to the camera connector. DO NOT USE the handle
set under wet conditions or submerge in liquid.
The inspection camera is a professional tool.
DO NOT let children come into contact with the
tool. Supervision is required when inexperienced
operators use this tool.
• Thisproductisnotintendedforusebypersons
(including children) suffering from diminished
physical, sensory or mental abilities, or for lack
of experience and/or for want of knowledge or
skills unless they are supervised by a person
responsible for their safety. Children should
never be left alone to play with this product.
Electrical Safety
The charger has been designed for one voltage
only. Always check that the battery pack voltage
corresponds to the voltage on the rating plate.
Also make sure that the voltage of your charger
corresponds to that of your mains.
Your DeWALT charger is double insulated
in accordance with IEC 60335; therefore
no earth wire is required.
If the supply cord is damaged, it must be replaced
by a specially prepared cord available through the
DeWALT service organisation.
Using an Extension Cable
An extension cord should not be used unless
absolutely necessary. Use an approved extension
cable suitable for the power input of your charger
(see Technical data). The minimum conductor size
is 1 mm
2
; the maximum length is 30 m.
