ENGLISH
10
Package Contents
The package contains:
1 Cordless Driver/(Percussion) Drill
2 Battery packs
1 Battery charger
1 Kitbox (K version only)
1 Instruction manual
1 Exploded drawing
NOTE: Battery packs and chargers are not included
with N-models.
• Check for damage to the tool, parts or
accessories which may have occurred during
transport.
• Take the time to thoroughly read and
understand this manual prior to operation.
Description (fi g. A, B)
WARNING: Never modify the power
tool or any part of it. Damage or
personal injury could result.
INTENDED USE
Your Cordless Driver/(Percussion) Drill has been
designed for professional drilling and screwdriving
applications. DO NOT use under humid conditions
or in presence of flammable liquids or gases.
These cordless nailers are professional power tools.
DO NOT let children come into contact with the
tool. Supervision is required when inexperienced
operators use this tool.
1. Variable speed switch
2. Forward/reverse slider
3. Keyless chuck
4. Mode selector/torque adjustment collar
5. Collar settings
6. Two gear selector
7. Bit holder (bits not included)
8. Grip
9. Battery pack
10. Battery release buttons
11. Charger
12. Charging indicator (red)
13. Protective battery cap
Electrical Safety
The electric motor has been designed for one
voltage only. Always check that the battery pack
voltage corresponds to the voltage on the rating
plate. Also make sure that the voltage of your
charger corresponds to that of your mains.
Your DEWALT charger is double insulated
in accordance with EN60335.
If the supply cord is damaged, it must be replaced
by a specially prepared cord available through the
D
EWALT service organization.

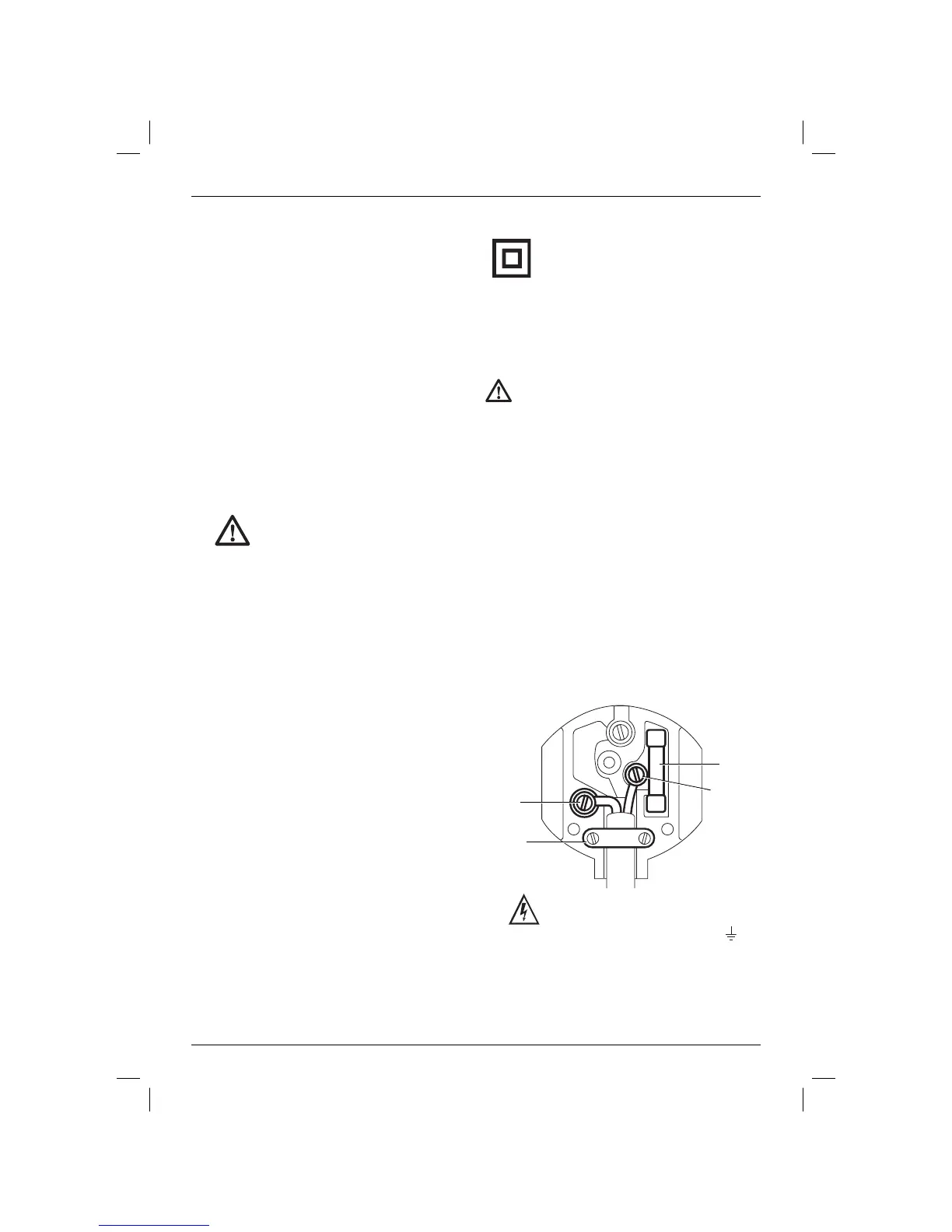

Mains Plug Replacement
(U.K. & Ireland Only)
DANGER:
• Should your mains plug need replacing and you
are competent to do this, proceed as instructed
below. If you are in doubt, contact an authorized
DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug
with bared copper conductors is dangerous if
engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs
fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be
marked at the connection points of most good
quality plugs. Attach the wires to their respective
points in the plug (see below). Brown is for Live
(L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug
ensure that the cable restraint (3) is holding the
outer sheath of the cable firmly and that the two
leads are correctly fixed at the terminals crews.
1
2
4
3
WARNING: NEVER use a light socket.
NEVER connect the live (L) or neutral (N)
wires to the earth pin marked E or .
Using an Extension Cable
An extension cord should not be used unless
absolutely necessary. Use an approved extension
cable suitable for the power input of your charger
