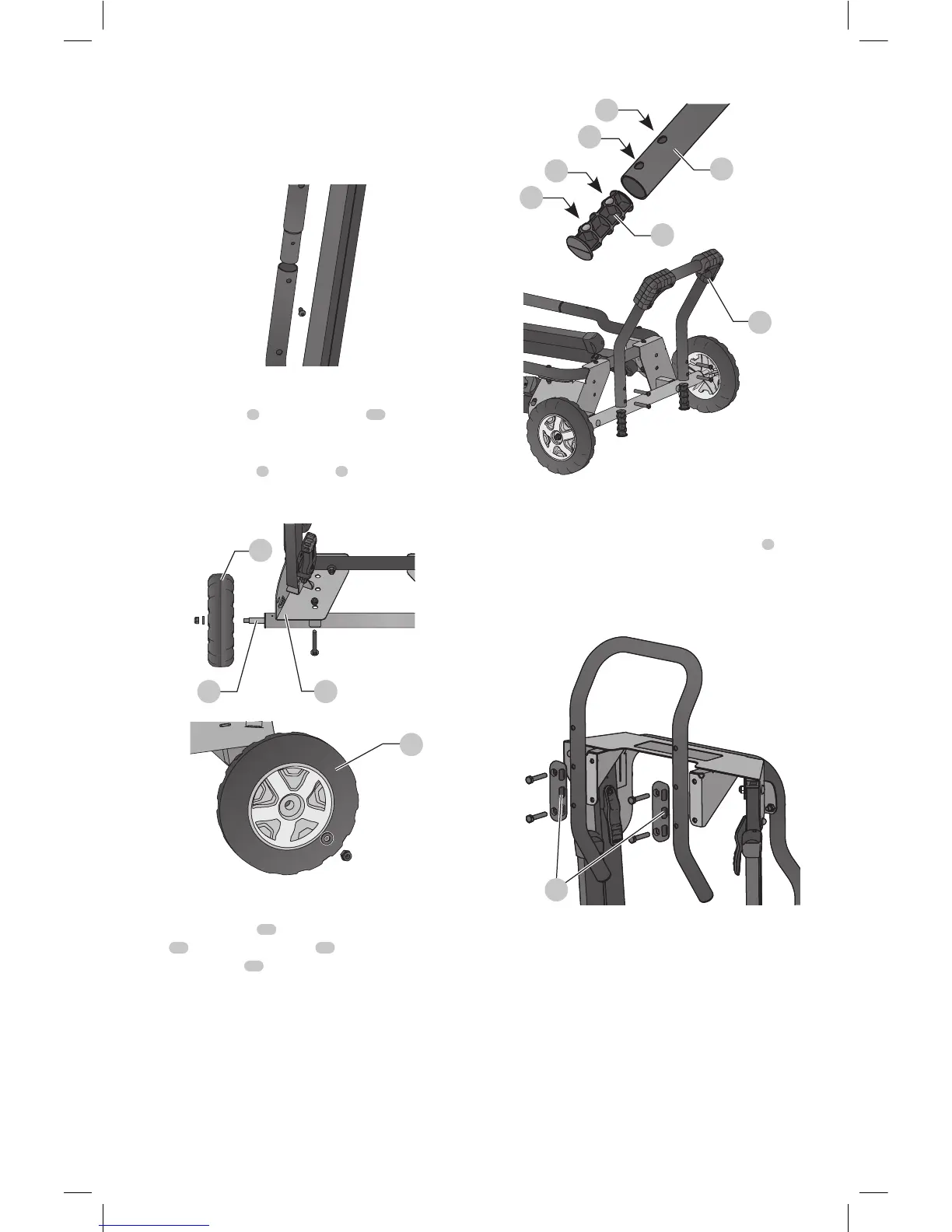

Assembling Stand Frame Halves (Fig. B)
1. Slide smaller tube diameter into opposite tube side as
shown until holes align.
2. Install M6x12 pan head bolts until tight on both sides.
Fig. B
Attaching the Wheels and Axle (Fig. C)
1. Attach the axle
1
to the end bracket
17
by aligning
the pre-drilled holes. Secure axle to end bracket using
two carriage bolts and lock nuts provided.
2. Place the wheels
2
on the axle
1
and secure with
washers and lock nuts as shown. Tighten wheel and axle
nuts securely.
2
Fig. C
2
1
17
Attaching the Kickstand (Fig. D)
Insert the tube plugs
11
into the end of the kickstand
tube
12
. Be sure that the holes
13
in the tube plugs are in
line with the holes
14
in the kickstand tube before inserting
the tube plugs.
Align the kickstand holes with the holes on the end bracket.
Be sure the kickstand is pointing up when the stand is in an
upright position. Secure the kickstand with the four M8x40
pan bolts and nuts provided as shown.
11
Fig. D
11
12
13
13
14
14
Attaching the Handle (Fig. E)
Attach the handle with the four M8x40 hex head bolts
provided. Feed the bolts through the handle feet
8
then
through the handle tube and through the gusset holes
on the end bracket. Install four nuts and tighten securely.
NOTE: The handle has two positions to choose from: a
compact position and an easy carry/setup position.
Fig. E
8
Table Saw Mounting (Fig. F–H)
WARNING: To reduce the risk of injury, turn unit
off, disconnect machine from power source
before assembling the table saw to the table
saw stand. An accidental start-up can cause injury.
WARNING: For your own safety, read and
understand the table saw instruction manual
before using. Failure to heed these warnings may
result in personal injury and serious damage to the
table saw and theaccessory.
