DeWalt DWS520 User Manual

English
8
1. Loosen the bevel adjustment knobs (E).
2. Set the bevel angle by tilting the saw shoe (D) until the mark
indicates the desired angle on the bevel scale (X).
3. Tighten the bevel adjustment knobs (E).
N
K
O
Q
P
R
2-3 mm
2-3 mm

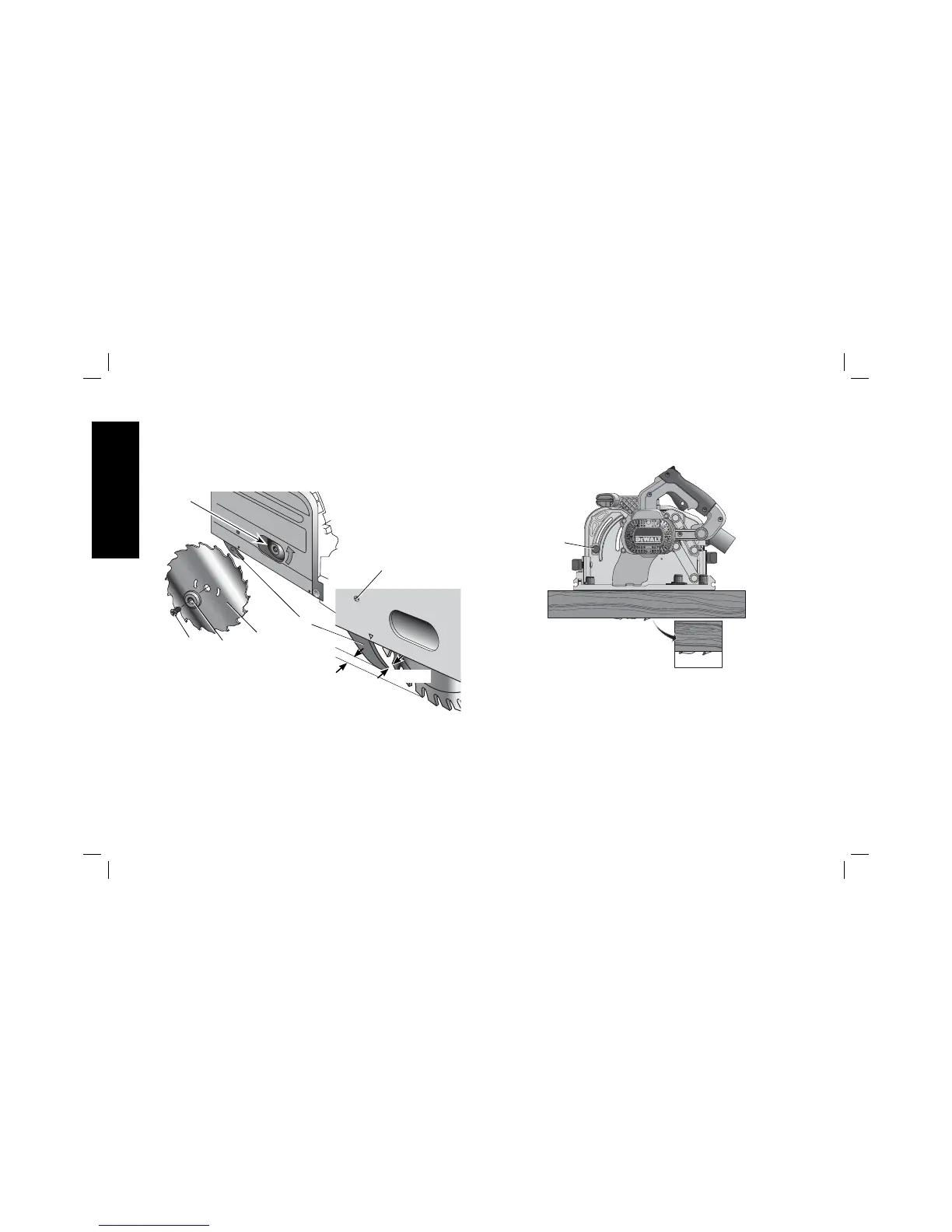

FIG. 3
Adjusting the Riving Knife (Fig. 3)
For the correct adjustment of the riving knife (Q), refer to the Figure 3.
Adjust the clearance of the riving knife after changing the saw blade or
whenever necessary.
1. Follow Changing the Saw Blade steps 1–4.
2. Loosen the riving adjustment screw (R) with an hex wrench (Z) and
set the riving knife as shown in Figure 3.
3. Tighten the riving knife screw (R).
4. Turn the lock lever (M) counterclockwise until it stops.
5. Move the track saw back to top position.
F
FIG. 4
Cutting Depth Adjustment (Fig. 4)
The cutting depth can be set at 0–2-5/16" (0–59 mm) without track
attached; with the track attached: 0–2-1/8" (0–55 mm).
1. Loosen the depth adjustment knob (F) and move the pointer to
obtain the correct depth of cut.
2. Tighten the depth adjustment knob (F).
NOTE: For optimal results, allow the saw blade to protrude from the
workpiece by about 1/8" (3mm).

DeWalt DWS520 Specifications

General

Type	Track Saw
Blade Diameter	165 mm
Bevel Capacity	47°
No Load Speed	1750 - 4000 RPM
Depth of Cut at 90°	59 mm
Depth of Cut at 45°	44 mm
Weight	5.1 kg
Arbor Size	20 mm
Power Source	Corded
Voltage	230V
Motor Power	1300 W
