DeWalt DWS520 User Manual

English
7

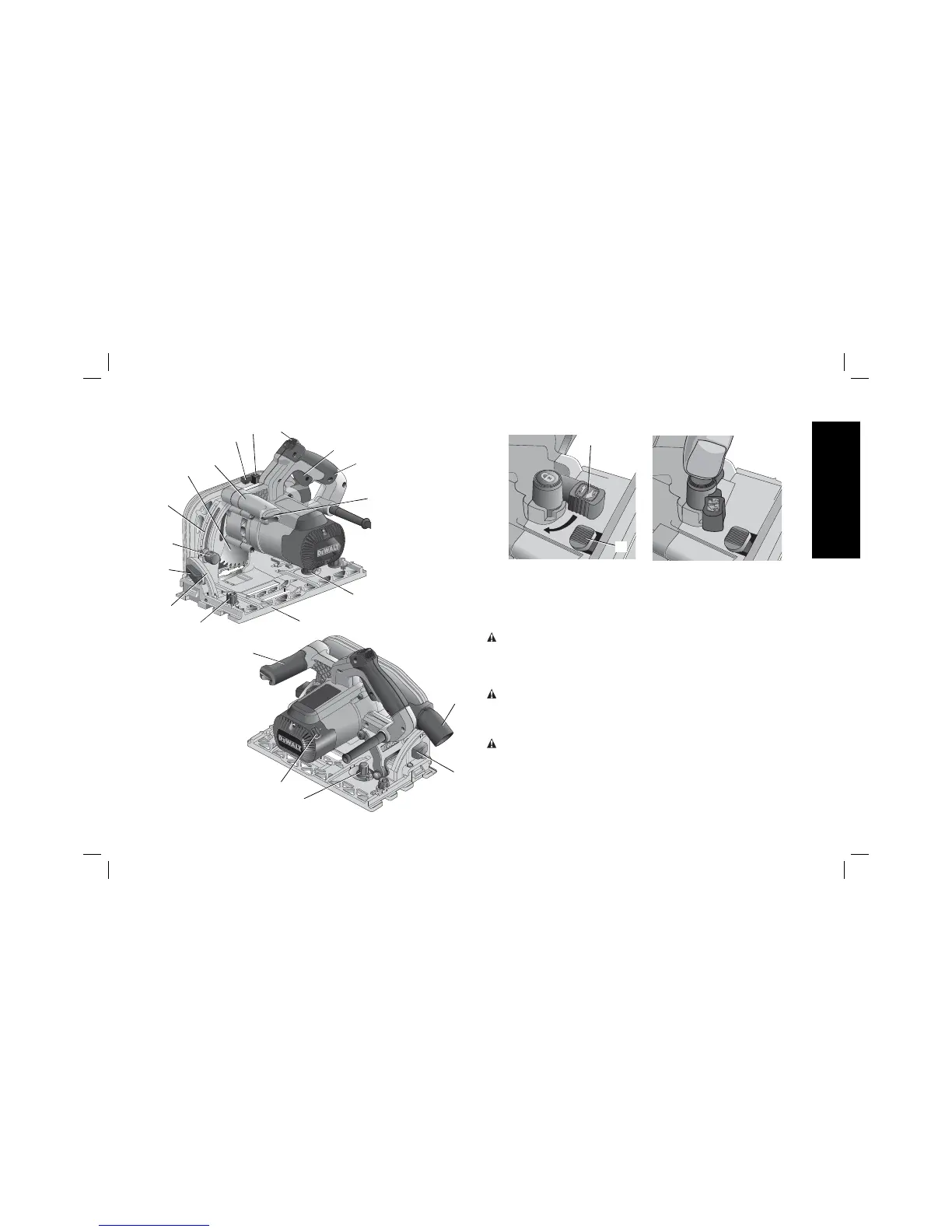

FIG. 1
C
B
A
H
D
F
G
E
J
J
K
L
M
Z
X
H
U
I
E
S
L
M
FIG. 2
INTENDED USE
The DWS520 track saw is designed to cut wood. Do not use this saw
to cut solid-surface countertops, such as Corian
®
.
Corian
®
is a registered trademark of E. I. du Pont de Nemours and
Company.
WARNING: To reduce the risk of serious personal injury, do not use
this saw to cut solid-surface countertops. Material build-up may inhibit
proper function of the plunge return, leaving the blade exposed.
ADJUSTMENTS AND SET-UP
WARNING: To reduce the risk of injury, turn unit off and
disconnect it from power source before installing and removing
accessories, before adjusting or when making repairs. An
accidental start-up can cause injury.
WARNING: Before using the track saw, ALWAYS make sure all
functions are working properly!
Bevel Adjustment (Fig. 1)
The bevel angle can be adjusted between 0° and 47°.

DeWalt DWS520 Specifications

General

Type	Track Saw
Blade Diameter	165 mm
Bevel Capacity	47°
No Load Speed	1750 - 4000 RPM
Depth of Cut at 90°	59 mm
Depth of Cut at 45°	44 mm
Weight	5.1 kg
Arbor Size	20 mm
Power Source	Corded
Voltage	230V
Motor Power	1300 W
