DeWalt DXPW3400PR - Pump Specifications; General TX1508 Details

2
English
Specifications
MODEL WEIGHT HEIGHT WIDTH LENGTH PSI MAX* OPERATING
PSI
GPM MAX* OPERATING
GPM
ENGIN
E
DP3400 114 lbs
( 51.7 kg)
29"
(
73.7 cm)
24"
(
61.0 cm)
40"
(
101.6 cm)
3400
(23443 kPa)
3060
(21099 kPa)
3.2 2.9 Honda 9 Hp
GX370
* Water flow and maximum pressure ratings determined in accordance with PWMA standard PW101.
Pump Specifications
GENERAL TX1508
Oil: Use DP70
Oil Capacity: 14 oz. (414 ml)

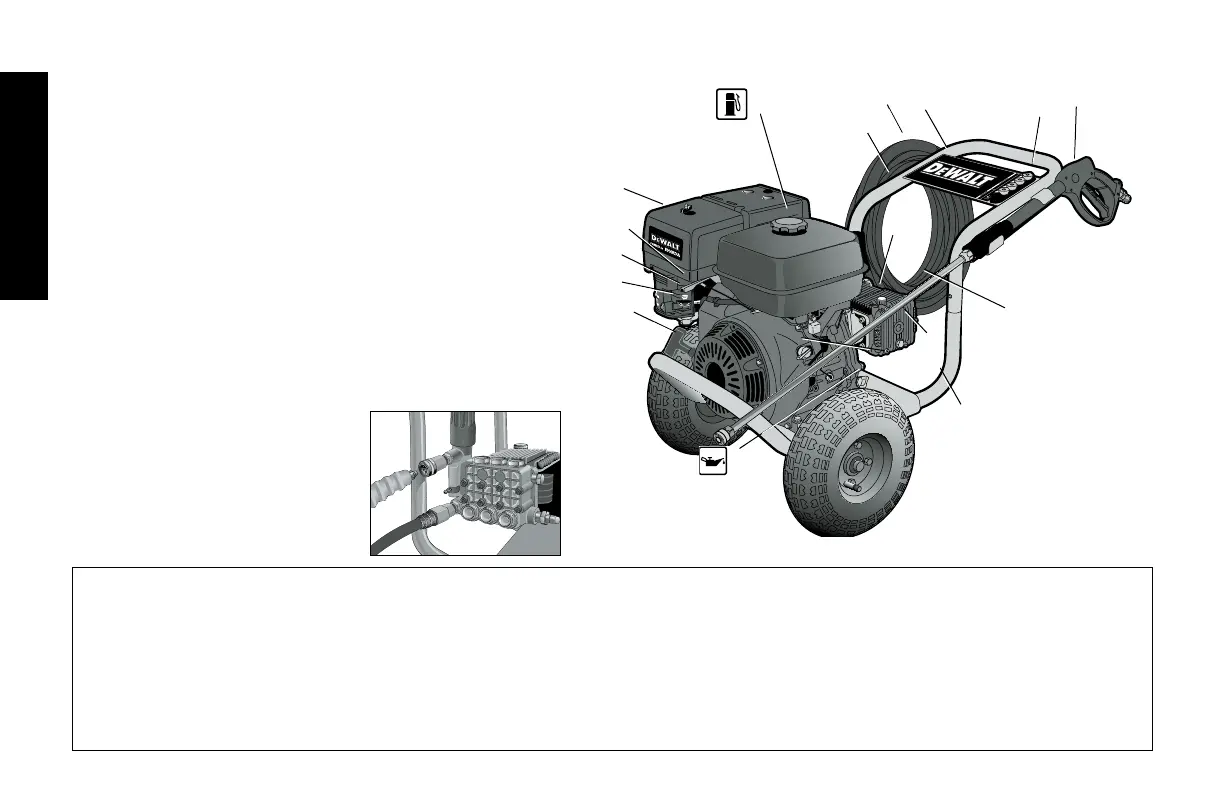

A. Handle assemble
B. Frame
C. High-pressure hose
D. S
pray gun
E. Quick-connect
spray wand
F. P
anel assembly
G. Nozzle holder
H. High-pressure pump
dipstick/oil plug
I
. Engine dipstick/oil plug
J. High-pressure pump
K. E
ngine
L. C
hoke control
M. Starter grip
N. Fuel valve lever
O. Engine switch
P. Gas cap
Q. Throttle control lever
DP3400 PRESSURE WASHER
ENGINE
Refer to the engine instruction manual for location
and operation of other engine controls.
K
D
E
C
L
N
A
M
F
B
G
J
H
O
I
P
Q
FIG. 1
