ENGLISH
8
instructions under To Insert Material. Take the tool to a
DeWALT
service center if the tool continues to shutdown.
Electronic Auto-reverse
This tool has an auto-reverse feature that reverses the
plunger in certain situations depending on material used
and speed oftool.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
The DCE560, DCE570 and the DCE580 cordless adhesive
dispensers come fullyassembled.
The DCE560 accepts 10 oz. (300-310 ml.) or 1/10th gallon
cartridges. The DCE570 accepts 29 oz., (857.6 ml) or quart
cartridges. The DCE580 accepts 10 oz.(300 ml.), or 20 oz.
(600 ml.) sausagepacks.

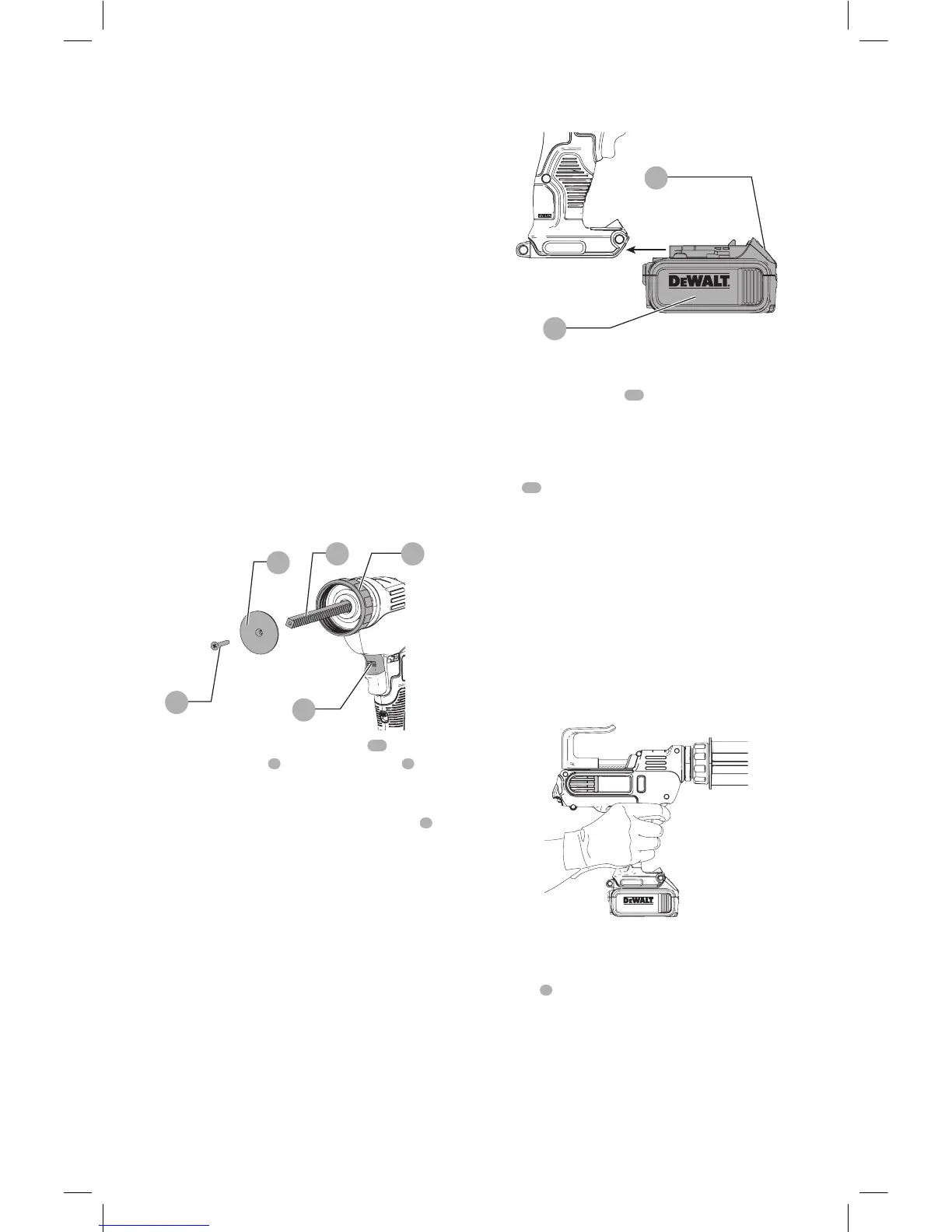

To Change Material Holders (Fig. D)
An alternate material holder is available at extra cost from
your local dealer or authorized service center. Refer to
Accessories for contactinformation.
Fig. D
16
7
5
10
6
1. Using a screwdriver, remove the screw
16
and
separate the plunger
7
from the plunger rod
5
.
2. Loosen the material holder from the mounting collar
and remove the material holder.
3. Depress and hold the plunger rod release trigger
6
and
pull the plunger rod completely out from the unit.
4. With plunger rod release trigger depressed, insert new
plunging rod into theunit.
5. Screw the new material holder into the mountingcollar.
6. Install screw through the plunger onto the end of the
plungingrod.
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig. E)
Fig. E
14
15
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack
14
into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button
15
and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.
Proper Hand Position (Fig. F)

WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Proper hand position requires one hand on the main handle
Refer to Fig F.
Fig. F
Variable Speed Dial (Fig. G)
The adhesive's rate of flow is controlled by the variable
speed dial
3
to accomodate variousapplications.
• Pick a speed by turning the dial to the desired setting.
NOTE: '1' is the lowest (slowest) setting and '6' is the
highest (fastest) setting.
