DeWalt XR Li-ION DCB116 User Manual

6
ENGLISH
Charging a Battery (Fig. A)
1. Plug the charger into an appropriate outlet before inserting
batterypack.
2. Insert the battery pack
1
into the charger, making sure the
battery pack is fully seated in the charger. The red (charging)
light will blink repeatedly indicating that the charging
process hasstarted.
3. The Stage 1 Charging blink indicator represents the charge
process that charges approximately 80% of the battery's
capacity. Stage2 Charging blink indicator represents the
remainder, or top off charge process, for the battery to reach
fullcapacity.
4. The completion of charge will be indicated by the light
remaining ON continuously. The battery pack is fully
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Battery
2
Battery release button
3
Charger
Intended Use
The DCB116 charger is designed for charging 12V and 18V
DeWALT
Li-Ion XR and XR FLEXVOLT battery packs: DCB122,
DCB124, DCB125, DCB127, DCB181, DCB182, DCB183, DCB183B,
DCB184, DCB184B, DCB185, DCB187, DCB189, DCB546, DCB547,
andDCB548.
The DCB117 charger is designed for charging 18V
DeWALT
Li-Ion XR and XR FLEXVOLT battery packs: DCB181, DCB182,
DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187,
DCB189, DCB546, DCB547, andDCB548.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
These battery chargers and battery packs are professional
powertools.
Date Code Position (Fig. A)
The date code
4
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2020 XX XX
Year of Manufacture
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be recharged
beforeuse.

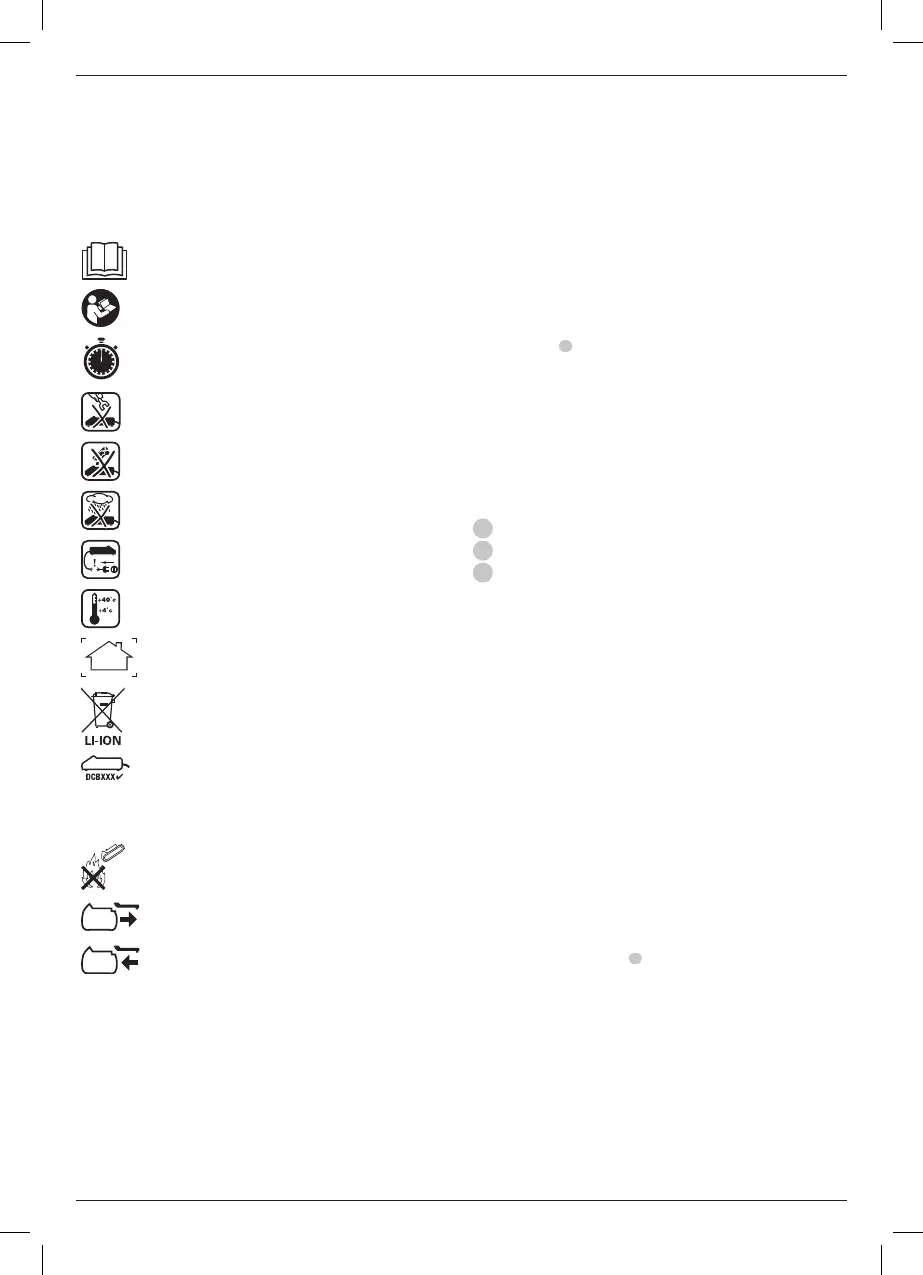

Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
Read instruction manual beforeuse.
See Technical Data for chargingtime.
Do not probe with conductiveobjects.
Do not charge damaged batterypacks.
Do not expose to water.
Have defective cords replacedimmediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge
DeWALT
battery packs only with designated
DeWALT
chargers. Charging battery packs other
than the designated
DeWALT
batteries with a
DeWALT
charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108 Wh (1 battery with 108 Wh).
TRANSPORT (with built-in transport cap). Example:
Wh rating indicates 3 x 36 Wh (3batteries of 36Wh).
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by
DeWALT
is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Package Contents
The package contains:
1 Battery charger
1 Li-Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models)
2 Li-Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models)
3 Li-Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models)
1 Instruction manual

DeWalt XR Li-ION DCB116 Specifications

General

Brand	DeWalt
Model	XR Li-ION DCB116
Category	Battery Charger
Language	English
