DeWalt XR Li-ION Series Instruction Manual

9
ENGLISH
Do not probe with conductive objects.
Do not charge damaged battery packs.
Do not expose to water.
Have defective cords replaced immediately.
Charge only between 4 ˚C and 40 ˚C.
Only for indoor use.
Discard the battery pack with due care for the
environment.
Charge DeWALT battery packs only with designated
DeWALT chargers. Charging battery packs other
than the designated DeWALT batteries with a
DeWALT charger may make them burst or lead to
other dangerous situations.
Do not incinerate the battery pack.
USE (without transport cap). Example: Wh rating
indicates 108 Wh (1 battery with 108 Wh).
TRANSPORT (with built-in transport cap). Example:
Wh rating indicates 3 x 36 Wh (3batteries of 36 Wh).
Battery Type
The DCH263 operates on a 18 volt battery pack.
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189 . Refer
to Technical Data for moreinformation.
Package Contents
The package contains:
1 Cordless rotary hammerdrill
1 Side handle and depth rod
1 Keyless chuck
1 Kit box
1 Li-Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models)
2 Li-Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models)
3 Li-Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® battery packs.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by
DeWALT is under license. Other trademarks and
trade names are those of their respective owners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Markings on Tool

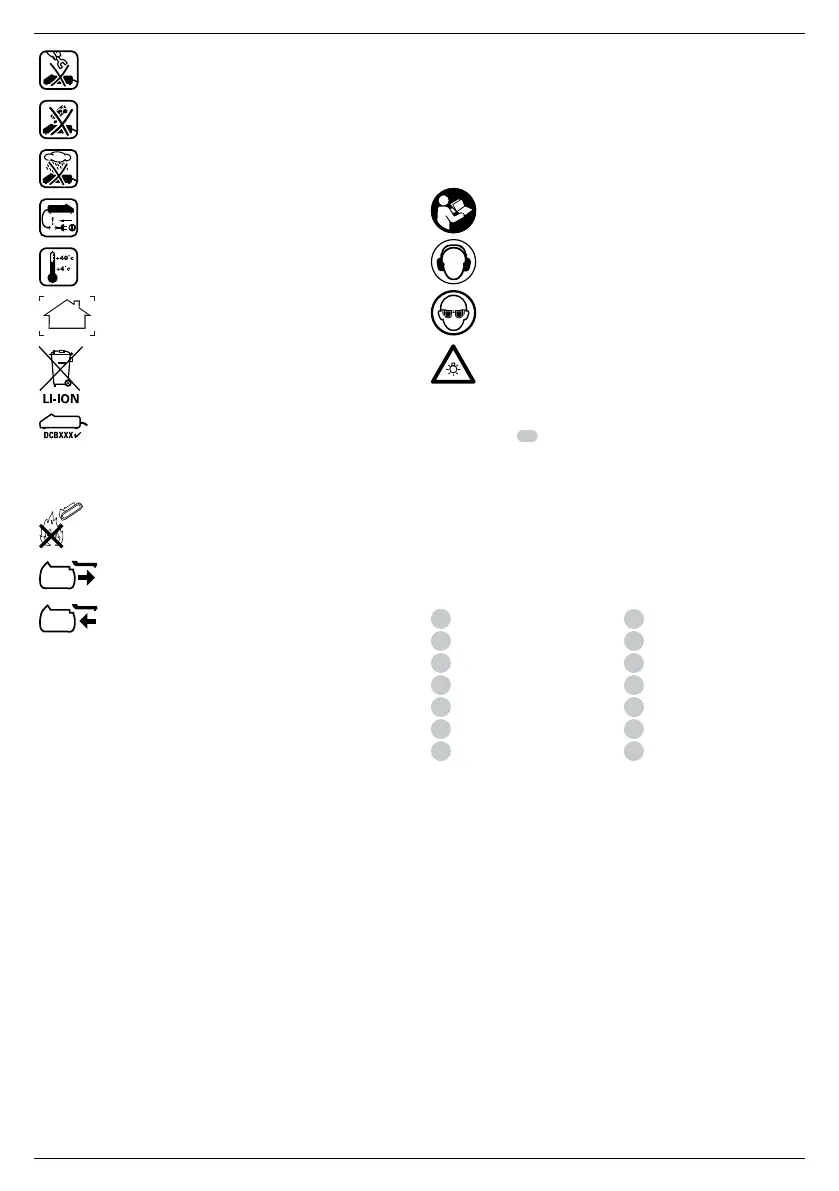

The following pictograms are shown on the tool:
Read instruction manual before use.
Wear ear protection.
Wear eye protection.
Visible radiation. Do not stare into light.
Date Code Position (Fig. A)
The date code
15
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2018 XX XX
Year of Manufacture
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Variable speed switch
2
Forward/reverse button
3
Mode selector dial
4
Mode selector button
5
Side handle
6
Battery pack
7
Release button
8
Main handle
9
SDSPLUS tool holder
10
Sleeve
11
Depth rod
12
Depth rod release button
13
Worklight
14
Utility hook
Intended Use
Your cordless rotary hammerdrill has been designed for
professional drilling and hammerdrilling applications, as well as
screwdriving and chippingapplications.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
Your cordless rotary hammerdrill is a professional powertool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.

DeWalt XR Li-ION Series Specifications

General

Battery Type	Li-Ion
Compatibility	DeWalt 20V MAX tools
Battery Capacity	2.0Ah, 4.0Ah, 5.0Ah, 6.0Ah, 9.0Ah, 12.0Ah
Features	Overload protection
LED Indicators	battery fuel gauge
