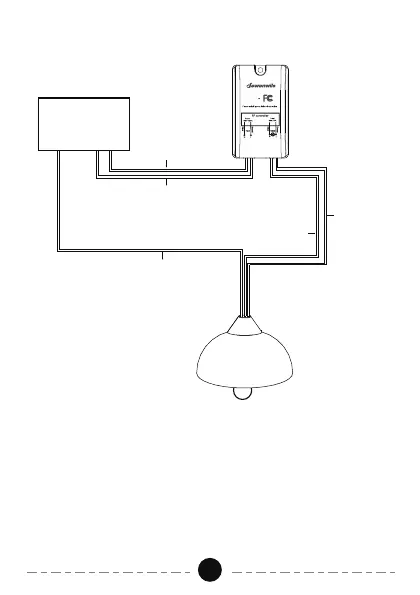

Wiring Diagram
02
1. Turn off the power to the main circuit breaker or fuse box working area
before installation.
2. "L" Brown line is the hot wire."N"Blue line is the neutral wire. Do not
connect the "L" (hot wire) and "N"(neutral wire) mistakenly.
3. Connect the power to the "input" side, and the load to the "output" side
carefully.
4. The wireless switch kit only needs to connect with the hot wire and neutral
wire.The "G" Green line (ground wire) just needs to be connected as normal.
5. After connecting, use the wiring cap to cover it.
Power Input
G (Green)
L (
Brown)
L (
Brown)
N (Blue)
N (Blue)
