DS-TACHO-2
TECHNICAL REFERENCE MANUAL
7. Measurement
Once the sensor is properly connected and defined in DEWESoft, it can be used for frequency
measurements (for example: order tracking, balancing, basic RPM measurements, …).

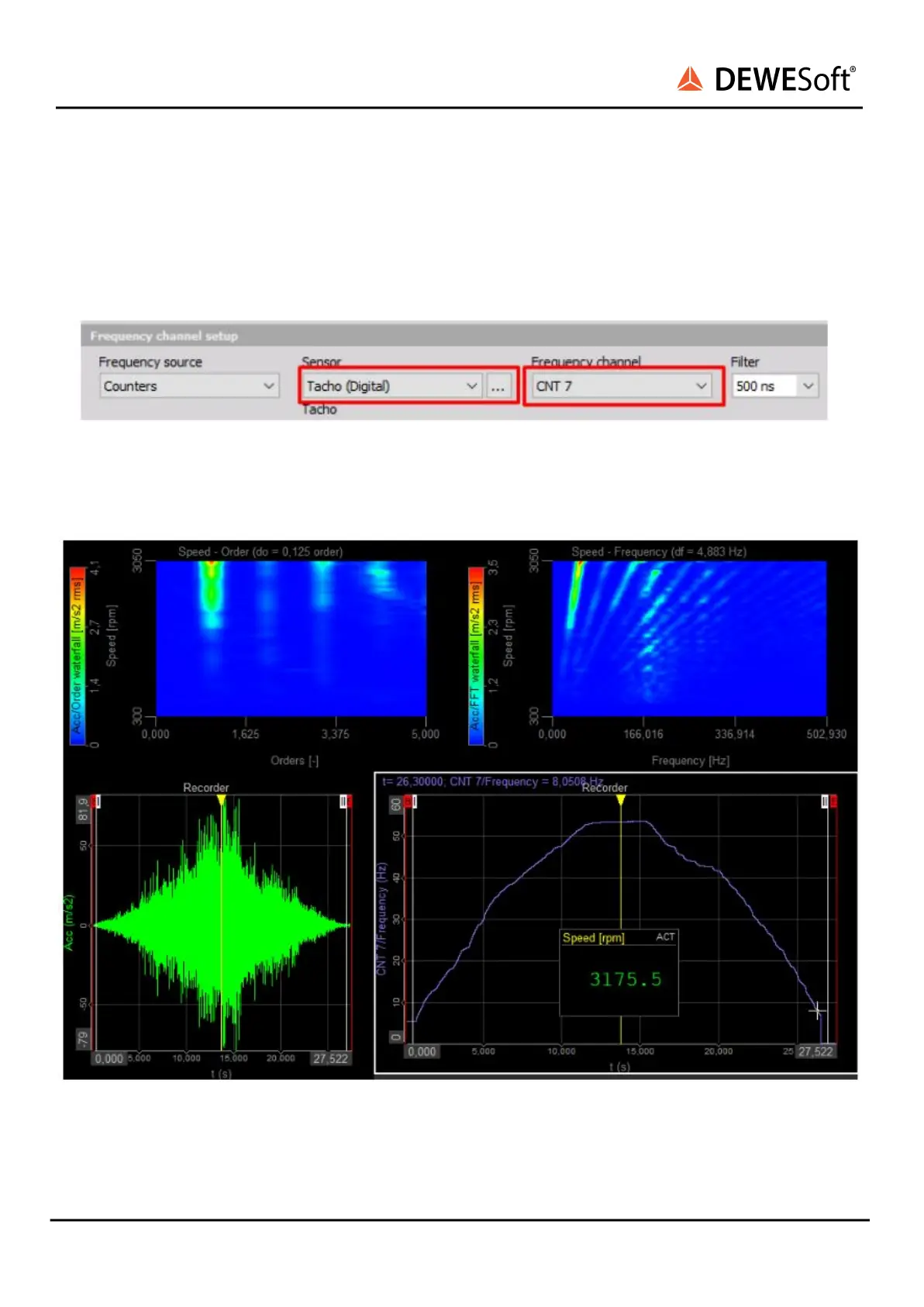

Example: in the order tracking setup you can directly select the tacho as a frequency channel.
The lowest detectable frequency for the counter input on the DEWE-43 / SIRIUS is 5 Hz, therefore if you
have 1 pulse/revolution, the lowest RPM is 300.
DS-TACHO-2 V20-1 8/15
