Dexin DSM2500C - Appearance and Illustration; Front Panel Illustration; Rear Panel Illustration

DSM2500C IP to Analog Modulator User Manual
2
2
Modulation
Parameters
Number of channels
up to 32
Connectors
75Ω, F-jack
Frequency range
47 – 862MHz, digital modulation process
Output Bandwidth
400MHz
Output level
maximum 112dBμV
Return loss
≥ 14dB
Spurious frequency dist.
≥ 60dB
Stereo cross talk
> 55dB
Residual carrier accuracy
1%
TV standard
PAL B/G/D/K/M/N, NTSC M/J/4.43,
SECAM (under development)
Video-signal to noise ratio
≥ 60dB
Network
Interface
Management
1 x 100 Base-T Ethernet (RJ 45)
Data
2 x 1000 Base-T Ethernet (RJ 45)
Protocol
IEEE802.3 Ethernet, RTP, ARP, IPv4,
TCP/UDP, HTTP, IGMPv2/v3
Others
Image resolution
up to 1080i
CNR
60 dB (after internal combining)
SNR
> 53 dB (after internal combining)
Sampling frequency
48, 44.1, 32
Output volume adjustment
0 - 100 %
General
Demission
420mm×440mm×44.5mm (WxLxH)
Temperature
0~45℃(operation), -20~80℃(storage)
Power Supply
AC100V±10%, 50/60Hz
or AC 220V±10%,50/60Hz

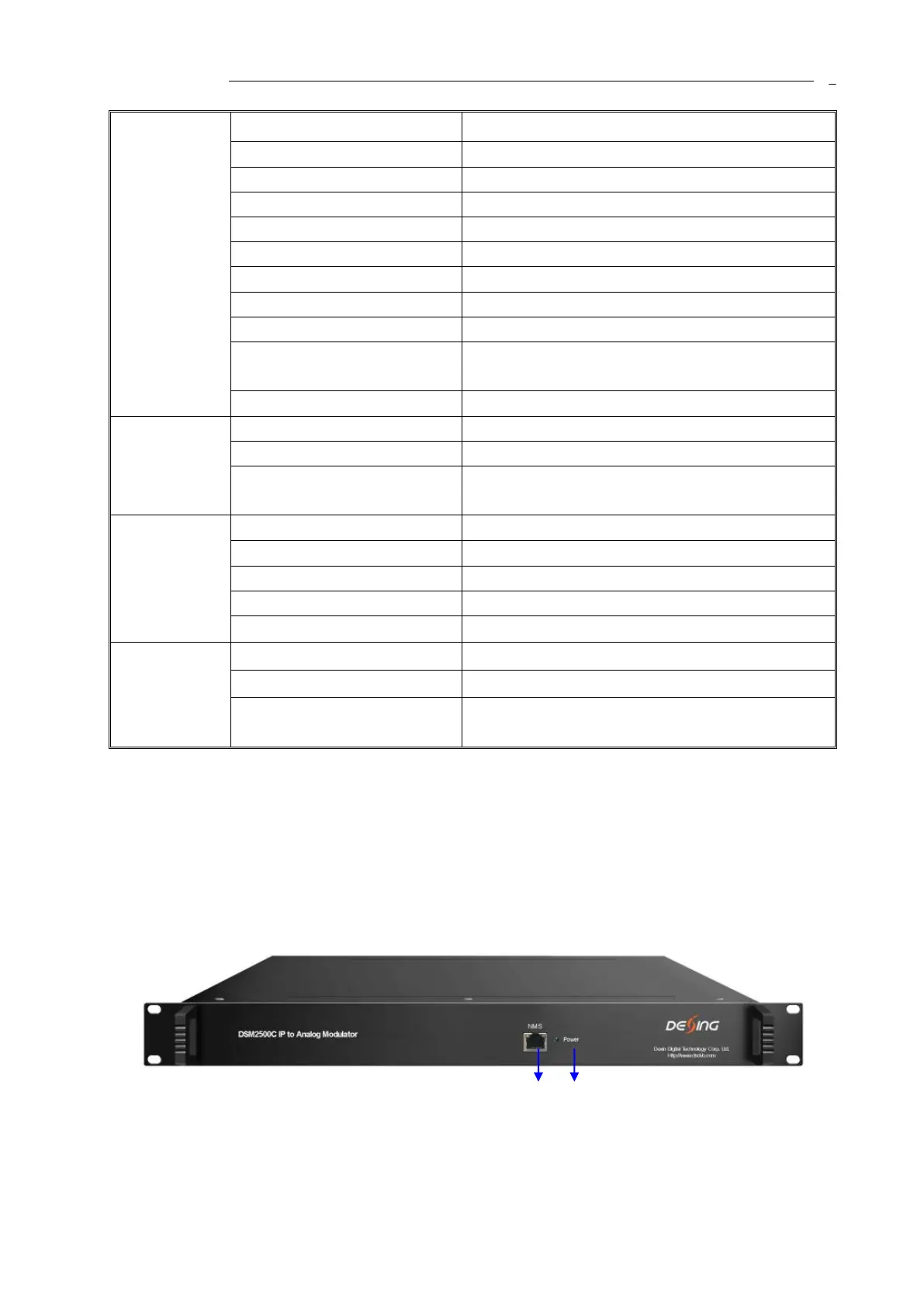

1.3 Appearance and Illustration
Front panel Illustration
Rear Panel Illustration:
1
2
