Dexing NDS3244S - Technical Specifications

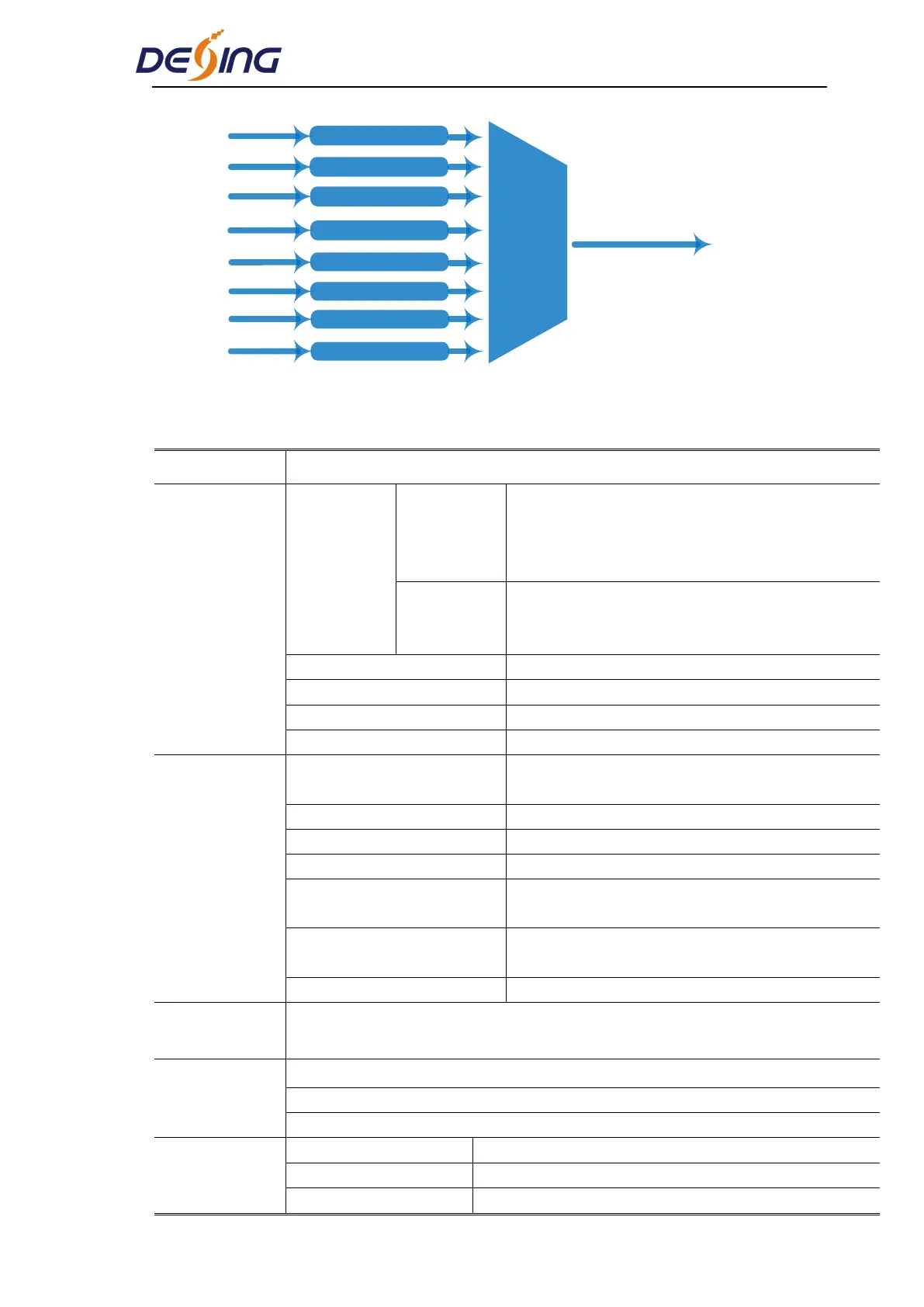

NDS3244S Multi-Channel Encoder User Manual
2
Mux
MPEG4 AVC/H.264 Encoding
HDMI #1
HDMI #2
HDMI #3
HDMI #4
1 MPTS and 8 SPTS
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
MPEG4 AVC/H.264 Encoding
HDMI #8
HDMI #7
HDMI #6
HDMI #5
1.4 Technical specification
Input
24 HDMI inputs (NDS3244S)
Video
Resolution
input
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720 x 576_50i,720 x 480_60i
Output
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P,
720 x 576_25P, 720 x 480_30P
Encoding
MPEG-4 AVC/H.264
Bit-rate
1~20Mbps each channel
Rate Control
CBR/VBR
GOP Structure
IP…P (P Frame adjustment, without B Frame )
Audio
Encoding
MPEG-1 Layer 2, LC-AAC, HE-AAC and
AC3 Pass through
Sampling rate
48KHz
Resolution
24-bit
Audio Gain
0-255 Adjustable
MPEG-1 Layer 2 Bit-rate
48/56/64/80/96/112/128/160/192/224/256/320/
384 kbps
LC-AAC Bit-rate
48/56/64/80/96/112/128/160/192/224/256/320/
384 kbps
HE-AAC Bit-rate
48/56/64/80/96/112/128 kbps
Stream output
IP output through DATA (GE) over UDP and RTP/RTSP protocol
(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module)
System
function
Network management (WEB)
English language
Ethernet software upgrade
Miscellaneous
Dimension(W×L×H)
440mm×324mm×44mm
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
