1.5 Appearance and Description

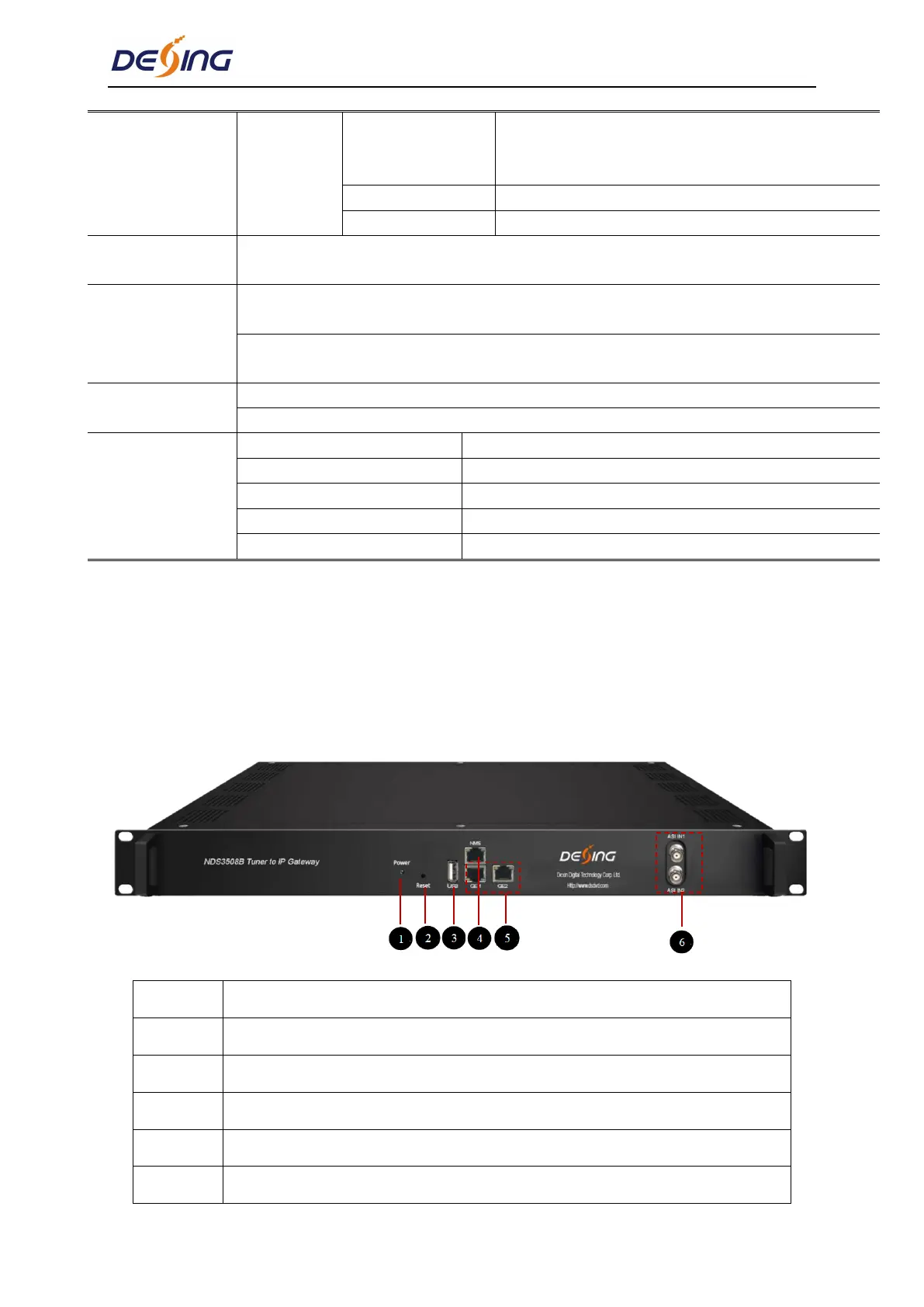

Front Panel Illustration:
13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15,
7/9
Constellation
QPSK, 8PSK, 8APSK, 16APSK, 32APSK
Max input bitrate
≤125 Mbps
BISS
Descrambling
Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
Output
512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2
port (IP address and port number of GE1 and GE2 are different) , Unicast and Multicast
16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol
through GE1 and GE2 port, Unicast and Multicast
System
Web based management
Ethernet software upgrade
Miscellaneous
Dimension
482mm×410mm×44mm (W×L×H)
Approx weight
3.6kg
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
100~240VAC, 50/60Hz
Power consumption
20W
1
Power indicator
2
Reset: Reset webmaster IP address, recover it to default IP address
3
USB port for upgrade
4
NMS port: Network management interface
5
Data port（GE1&GE2）: IP out port
6
ASI input port
