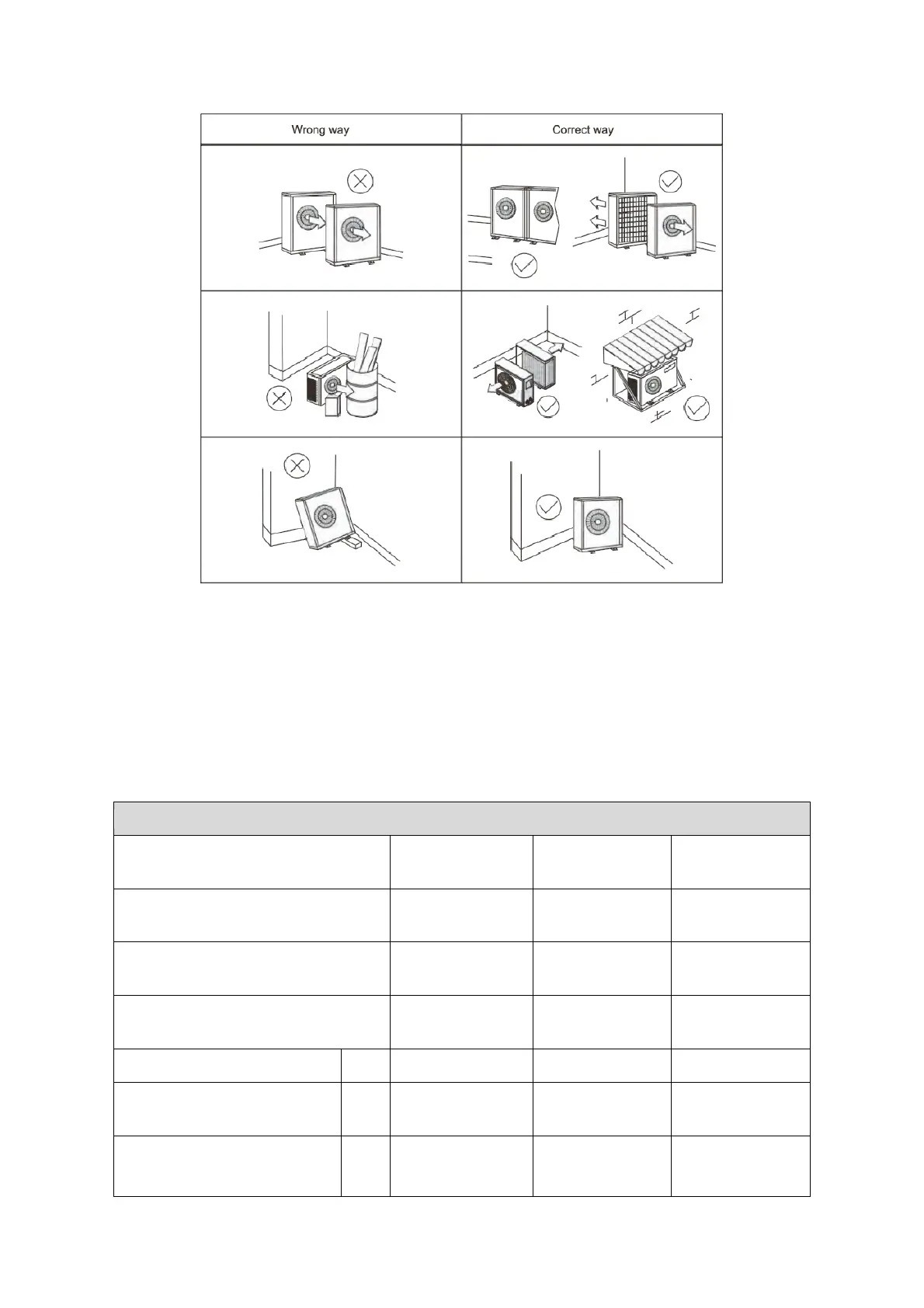

Select a location that allows for sufficient air flow, that is free of obstructions.
Refrigerant pipe Specifications
The system has a maximum ambient operating temperature of 58 degrees Celsius. The
maximum pressure is 3541 Kpa / 514 Psig.
Piping must be specified in accordance with AS /NZS 1571. The minimum wall thickness is
0.81 mm for 6.35mm/1/4 inch to 12.7mm / ½ inch, and 0.91 for 15.88 mm / 5/8-inch tubing.
Refrigerant fill capacity
Refrigerant fill capacity charge volume and pressure
Max Design pressure
Discharge side
Max design pressure
Suction side
