Deye Spring RW-M6.1 User Manual

~ 5 ~

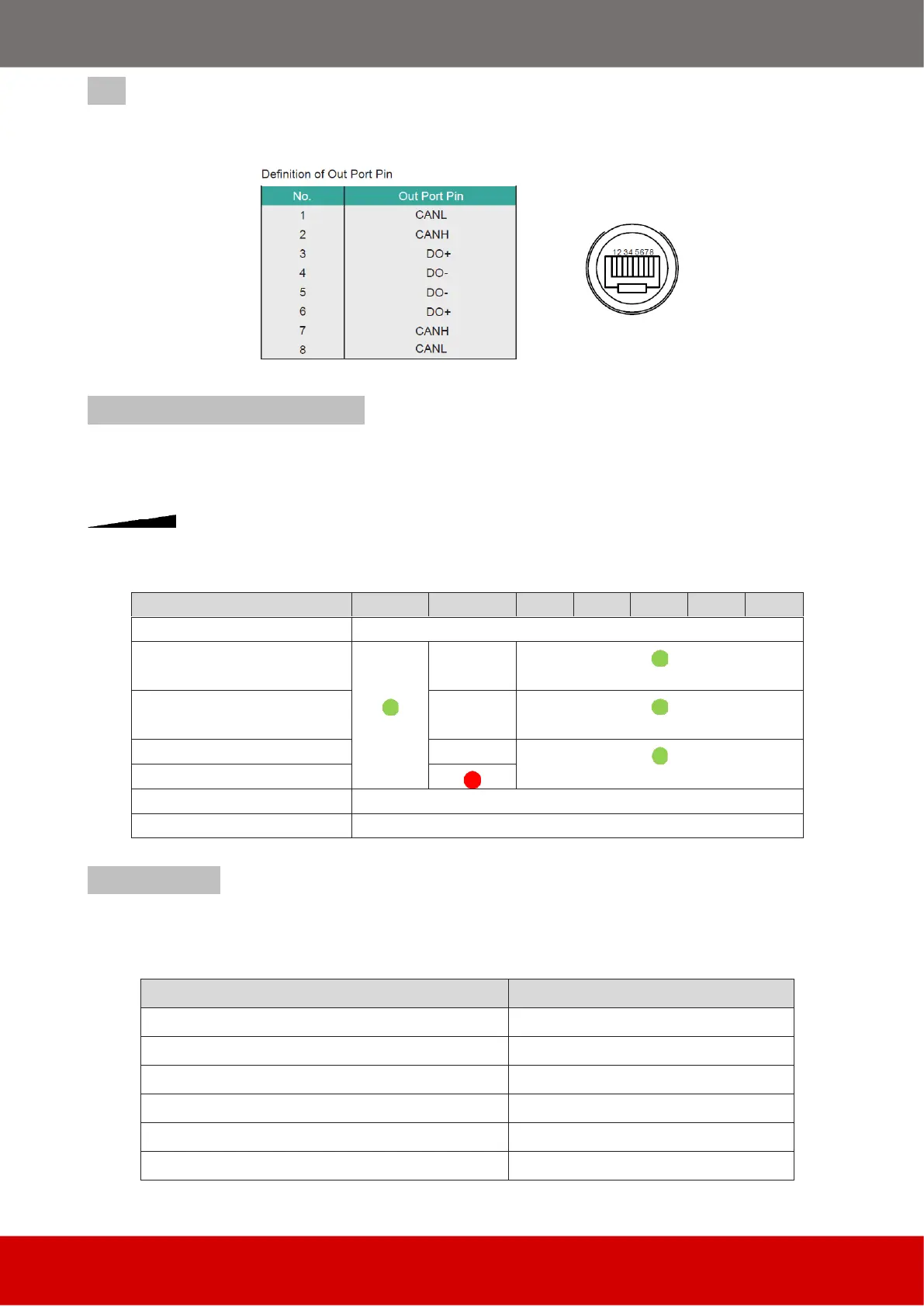

OUT
Parallel Communication Terminal: (RJ45 port) Connect “IN” Terminal of Next battery for
communication between multiple parallel batteries.
LED Status Indicators Instructions
RUN LED, green, long lighting when charging and blink when discharging.
ALM LED, red, long bright if equipment protected.
SOC LED, Battery capacity indicator,5 green LED, each light represents 20% ca-
pacity.
Condition
RUN
ALM
SOC1
SOC 2
SOC 3
SOC 4
SOC 5
Power off
off
Charge
Blink
off
Show SOC & highest LED blink
Discharge or Idle
off
Show SOC & long bright
Alarm
off
Other LEDs are same as above.
System error/Protect
Upgrade
Blink Fastly
Critical Error
Blink Slowly
Grounding bolt
For the battery connecting to the PE.
BMS function:
Protection and Alarm
Management and Monitor
Charge/Discharge End
Intelligent Protect Mode
Charge Over Voltage
Intelligent Charge Mode
Discharge Under Voltage
Protect, Charge Current Limit
Charge/Discharge Over Current
Intelligent Protect Mode
High/Low Temperature(cell/BMS)
Intelligent Protect Mode
Short Circuit
Protect
