Deye Spring RW-M6.1 User Manual

~ 4 ~
1. Battery negative
7. Foldable handle
2. Battery positive
8. USB port for update firmware
3. Pressure release valve
9. Parallel communication port OUT
4. Parallel communication port IN
10. Grounding bolt
5. Inverter CAN/RS485 port PCS
11. Power switch
6. Battery indicators (RUN, ALM, SOC)
Power Switch
Power Switch: to turn ON/OFF the whole battery BMS standby, no power output.
RUN
RUN LED: 1 green LED lighting to show the battery running status
ALM
Alarm LED: 1 red LED lighting to show the battery is under protection.
SOC
SOC LED: 5 green LEDs to show the battery ’ s current capacity.

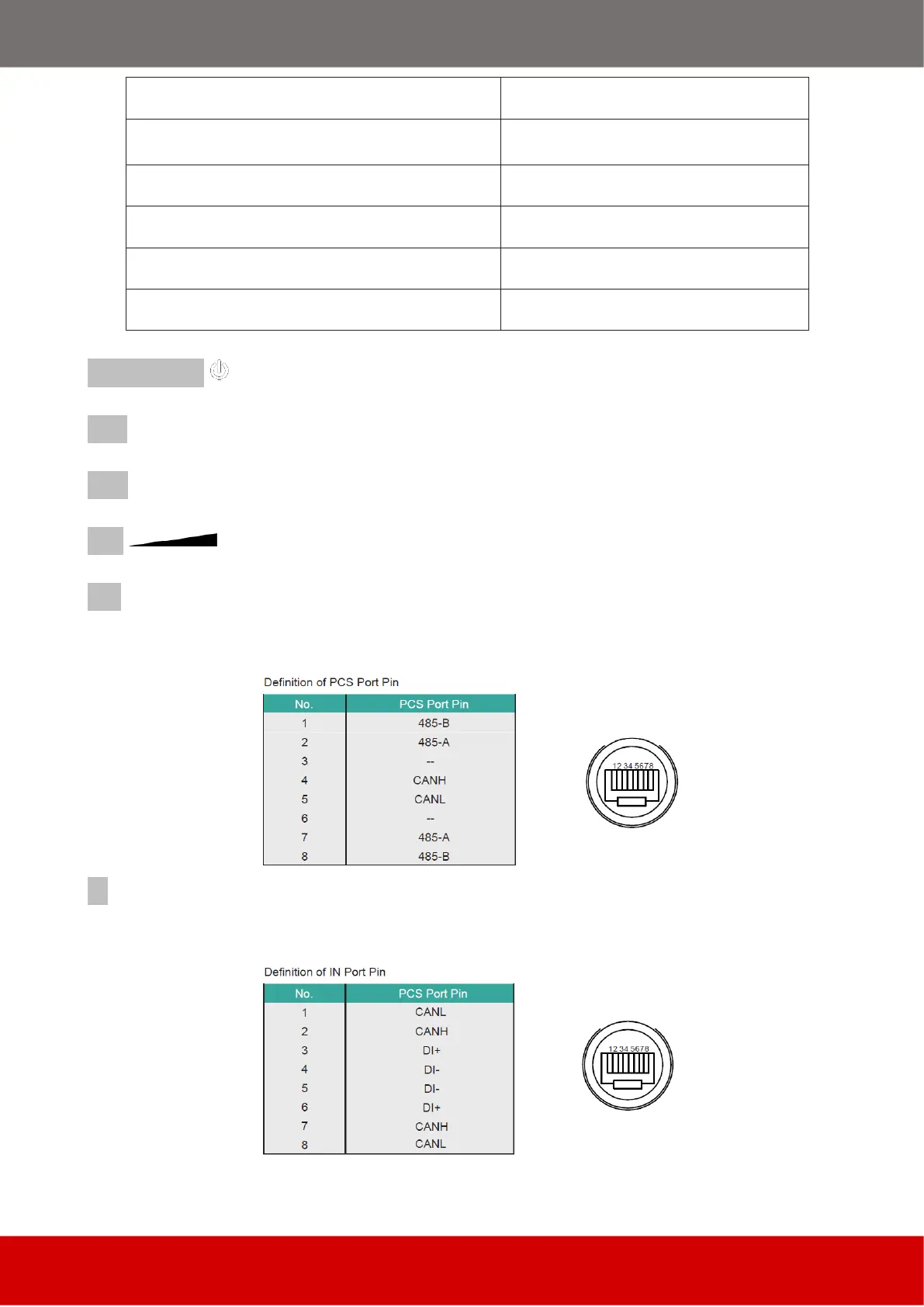

PCS
Inverter communication terminal: (RJ45 port) follow the CAN protocol (baud rate: 500K),
used to output battery information to the inverter.
IN
Parallel Communication Terminal: (RJ45 port) Connect “out” Terminal of Previous battery
for communication between multiple parallel batteries.
