DeZURIK
Cylinder Operated G-Series Actuator
D10022 Page 4 August 2012
Description
The G-Series Cylinder Actuator is a totally enclosed, quarter turn, pneumatic operated actuator. A 2"
(50mm) square nut on top of the actuator is provided for manual operation. It is supplied with a single
cylinder, and single or double booster cylinders dependent on application.
Air Supply
The supply pressure to the cylinder should be between 50 and 100 psi (344 and 689 kPa).
Lubrication
The G-Series Cylinder Actuator has been lubricated at the factory and requires no routine lubrication. If the
actuator is disassembled, lubricate the rack, rack guide, gear sector and bearings using one of these lubricants:
- Keystone Zeniplex-1 (recommended)
- Amoco Amolith Grease #1-EP (alternate)
- Amsoil GHD (alternate)
- Mobil Mobilux EP 1 (alternate)
- Petro-Canada Vultrex MPG EP 1 (alternate)
- Shell Alvania EP 1 (alternate)
- Texaco Multifak EP 1 (alternate)
If the cylinder is disassembled, it must be lubricated as described in the cylinder instructions.
Actuator Identification
The G-Series Cylinder Actuator is available in three sizes: G6, G12 and G16. See Figure 1 for actuator
identification.

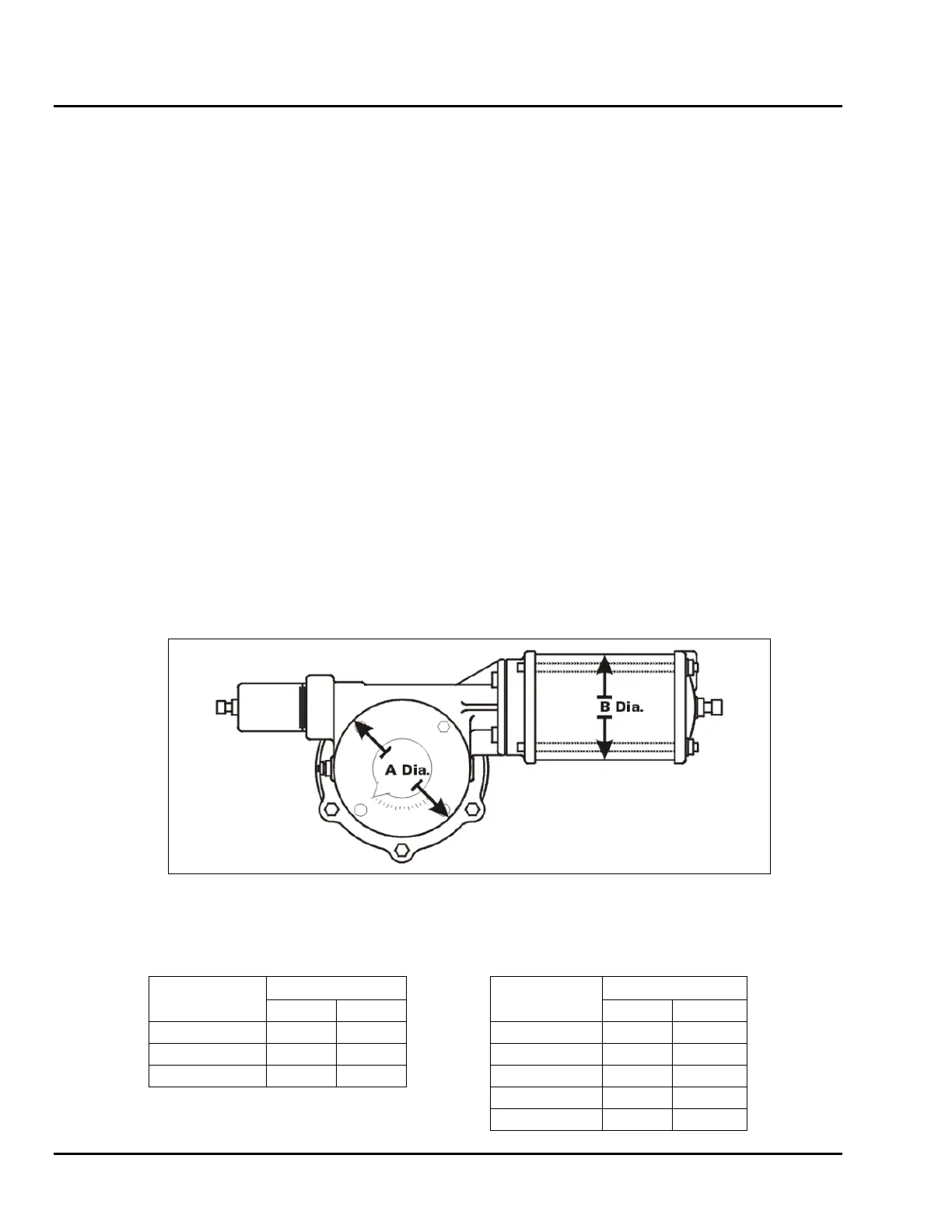

Figure 1 - Actuator Identification
To determine the actuator size, measure the diameter of the cover - see Figure 1 and Table A. To
determine the cylinder size, measure the diameter of the cylinder - see Figure 1 and Table B.
Table A: Actuator Identification
Table B: Cylinder Identification
Actuator
∅ “A”
Cylinder
∅ “B”
IN
MM
IN
MM
G6
8
205
C4
4.5
115
G12
15
390
C6
6.5
165
G16
19
485
C8
8.5
215
C10
10.5
265
C12
12.5
320
