DFI AM75-EC - Page 10

10
Quick Setup Guide

Quick Setup
Guide

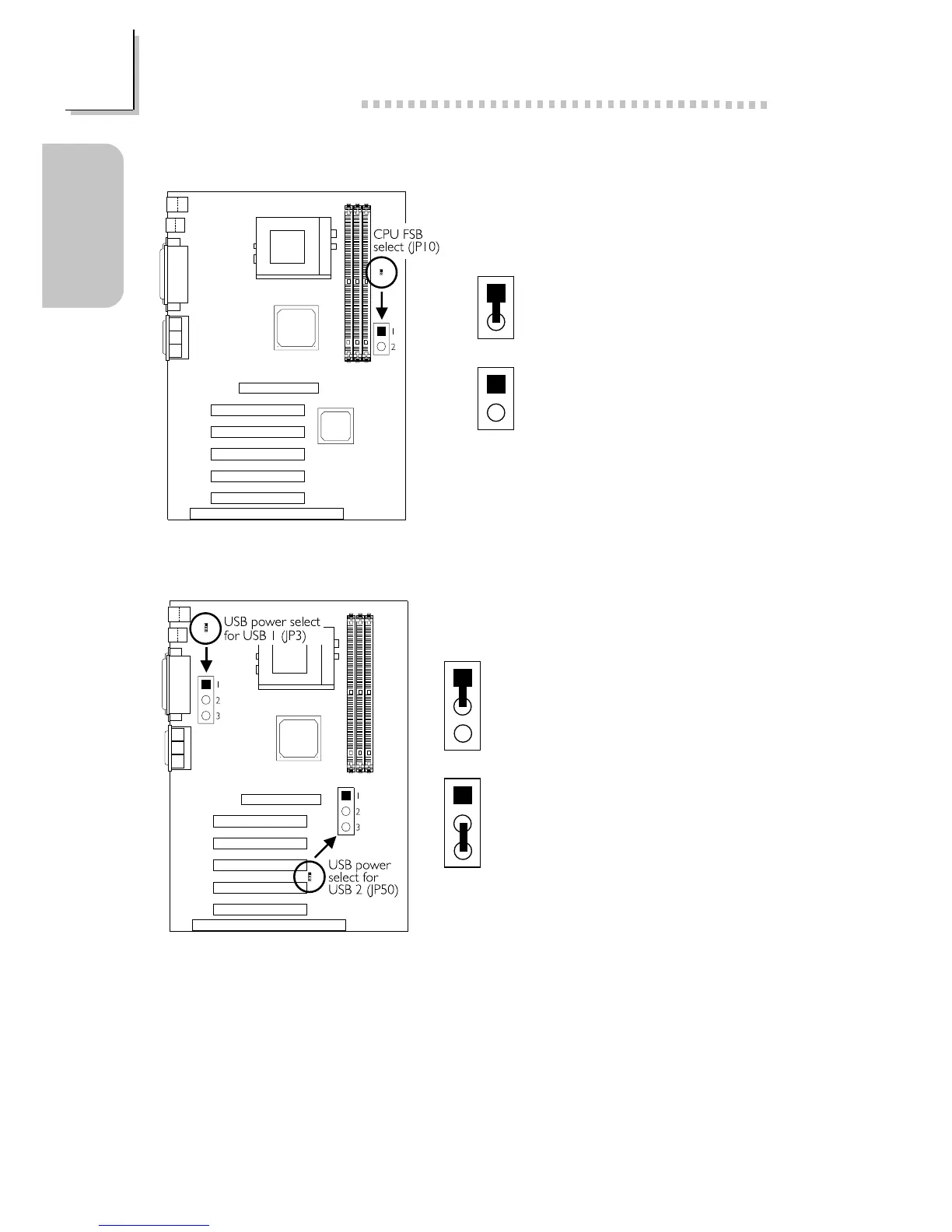

1.2.5 Power Select for USB 1 (JP3) and USB 2 (JP50)
2-3 On: 5VSB
1-2 On: 5V
(default)
1
2
3
1
2
3
1.2.4 CPUs Front Side Bus - JP10 (AM75-TC)
1
2
On: 100MHz
(200MHz DDR) CPU
(default)
Off: 133MHz
(266MHz DDR) CPU
1
2
