19

Quick Setup Guide
Quick Setup
Guide

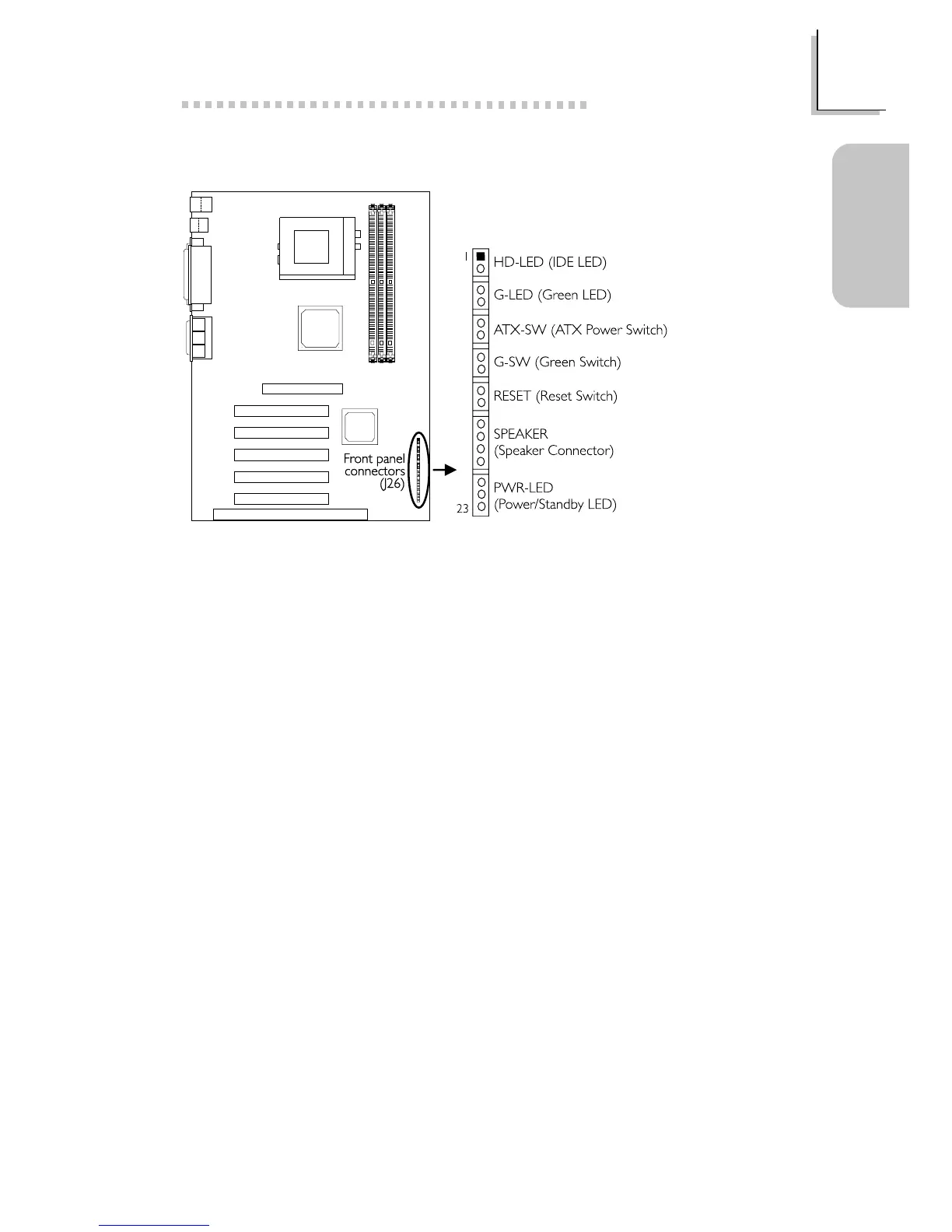

1.3.15 Front Panel Connectors
1 HDD LED Power
2 HDD
3 N. C.
4 Green LED Power
5 Ground
6 N. C.
7 PWRBT+
8 PWRBT-
9 N. C.
10 SMI
11 Ground
12 N. C.
13 H/W Reset
14 Ground
15 N. C.
16 Speaker Data
17 N. C.
18 Ground
19 Speaker Power
20 N. C.
21 LED Power (+)
22 N.C.
23 LED Power (-) or
Standby Signal
