The Algorithms
H
2
(2-heads delay)

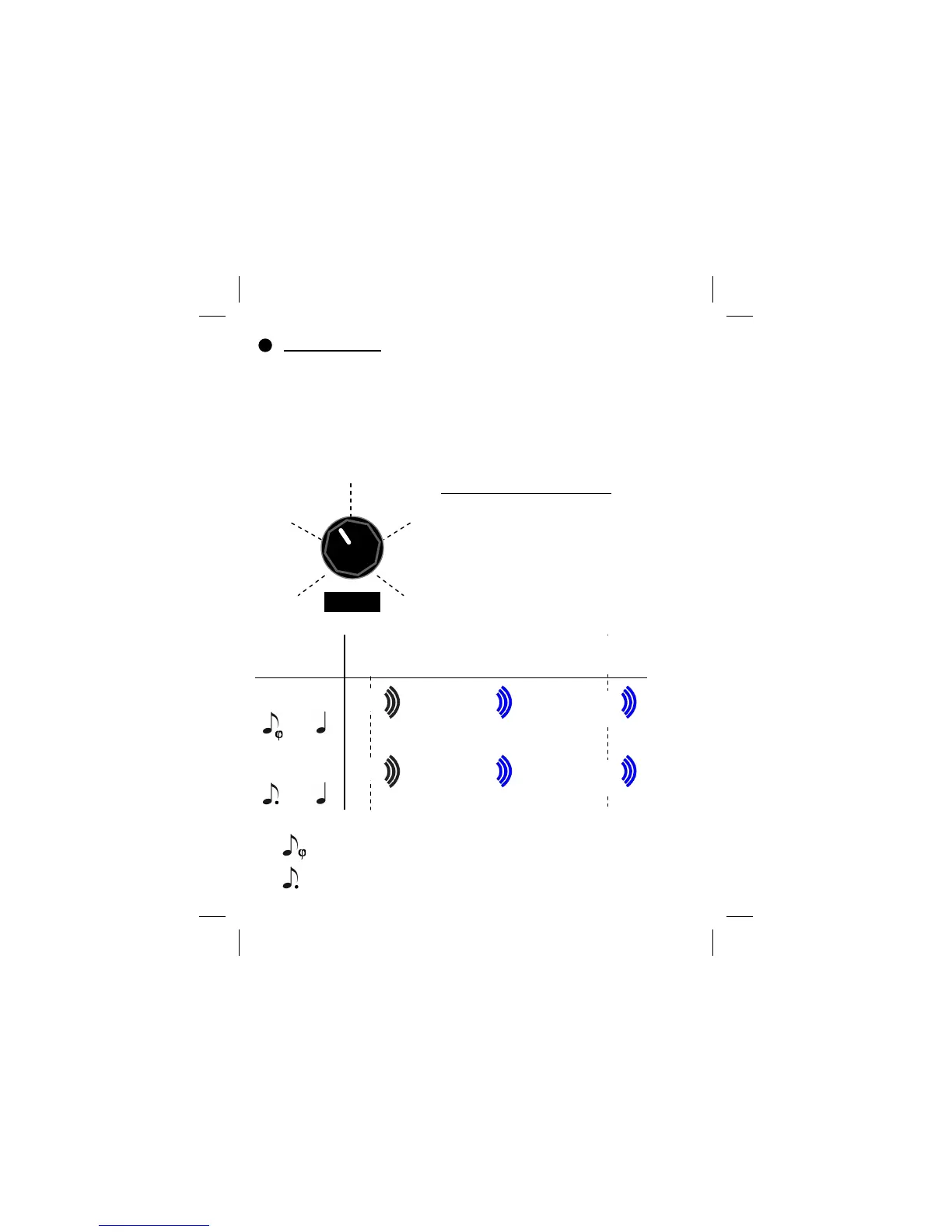

This is a model of tape delay with 2 “playback heads”. Each input sound event will
be played back twice at different delay times, and signals from the playback heads
are re-injected into the feedback loop, creating layers of warm and complex multi-
tap echoes. 2 choices of heads matrix configurations (tap patterns) are accessible
through the PARAM knob.
PARAM
C
B
D
A
I
Patterns
d r y
II
d r y
echo
echo echo
echo
HeadConfiguration(tappatterns)
 A:PatternI‐normal
 B:ping‐pong
 C:PatternII‐normal
 D:ping‐pong

*AstheREGENknobisturneduphigher,atouch
ofreverb‐likeambiencestartstoappear
+
+
denotes “golden ratio” interval.
*
371 ms
The timing values shown here are not not fixed, they are adjustable via
the TIME knob. This graph is only meant to show the relative timings
between taps.
600 ms
450 ms 600 ms
denotes “dotted-eigth” interval.
