The Algorithms
H
3
(3-heads delay)

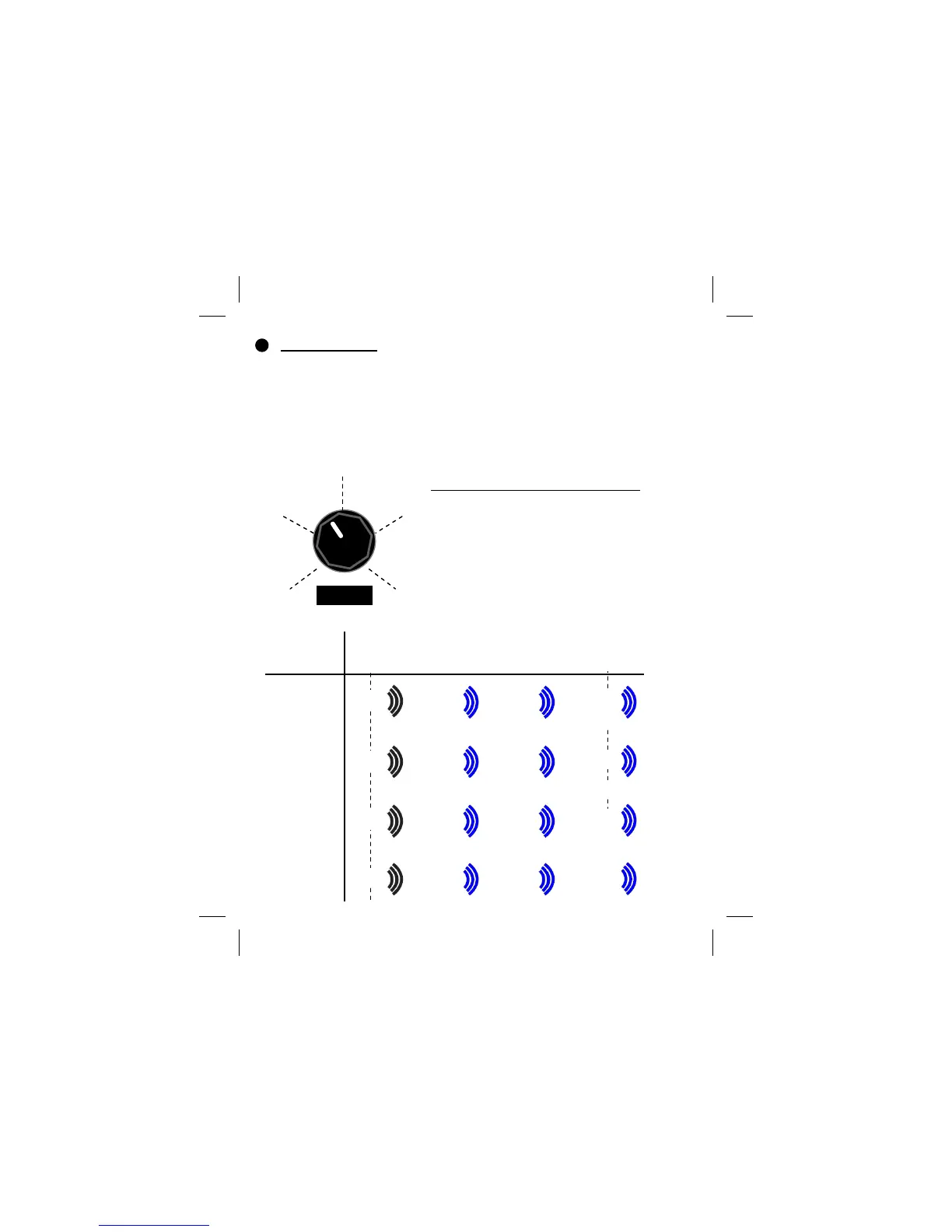

This is a model of tape delay with 3 “playback heads”. Each input sound event will
be played back thrice at different delay times, and signals from the playback
heads are re-injected into the feedback loop, creating layers of warm and complex
multi-tap echoes. 4 choices of heads matrix configurations (tap patterns) are ac-
cessible through the PARAM knob.
I
Patterns
d r y
II
d r y
echo echo
echo
echo
echo
echo
PARAM
C
B
D
A
HeadsMatrixconfiguration(tappatterns)

 A:PatternI
 B:PatternII
 C:PatternIII
 D:PatternIV

*AstheREGENknobisturneduphigher,atouchof
reverb‐likeambiencestartstoappear,andthestereo
spreadoftheechoesincreases.
III
d r y echo
echo
echo
IV
d r y echo
echo
echo
600 ms
600 ms
600 ms
600 ms
400 ms
300 ms
429 ms
480 ms
300 ms
200 ms
125 ms
240 ms
The timing values shown here are not not fixed, they are adjustable via
the TIME knob. This graph is only meant to show the relative timings
between taps.
