DFI K6BV3+/66 - Page 31

2
Hardware Installation
31

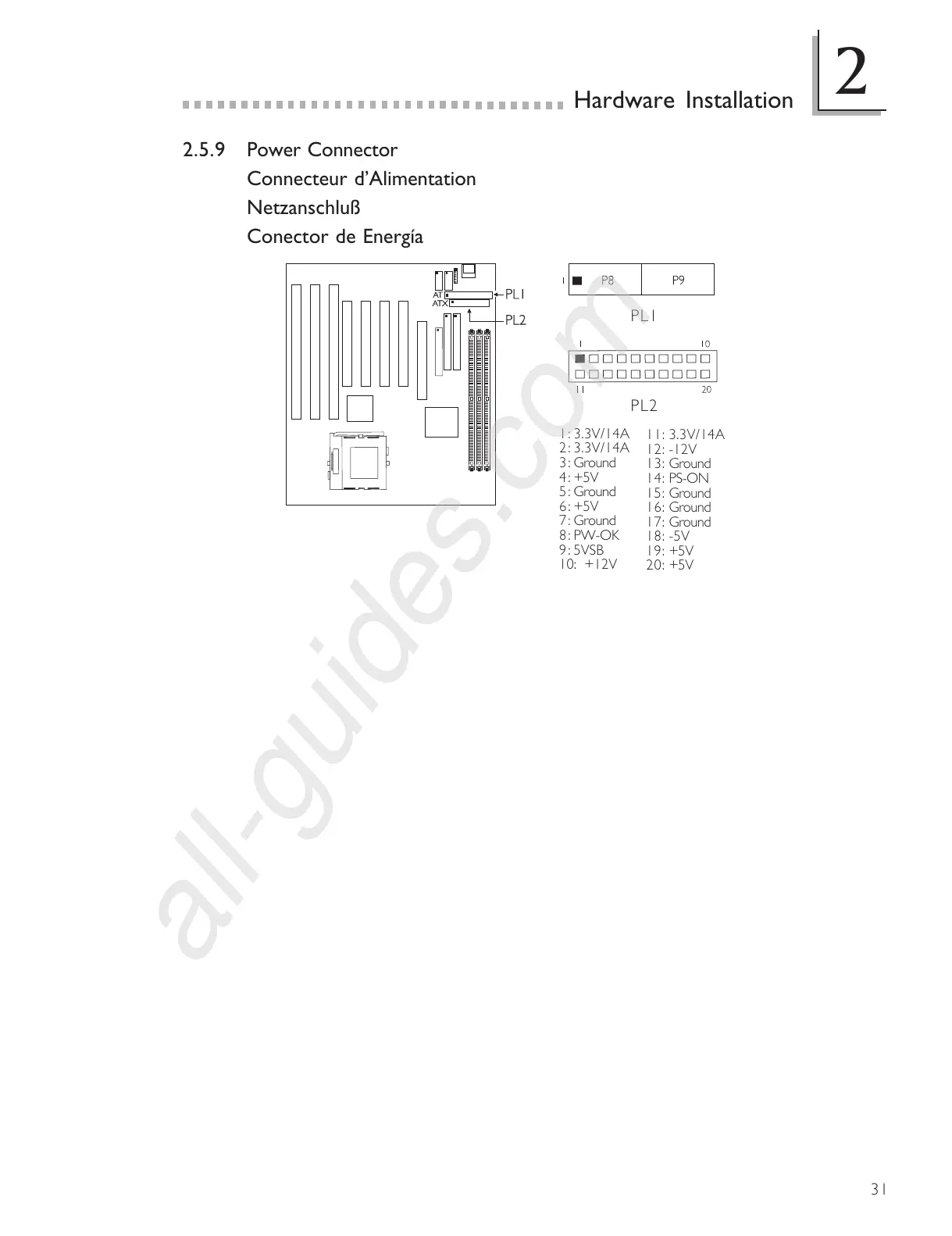

2.5.9 Power Connector
Connecteur dAlimentation
Netzanschluß
Conector de Energía
1: 3.3V/14A
2: 3.3V/14A
3: Ground
4:+5V
5: Ground
6:+5V
7: Ground
8:PW-OK
9: 5VSB
10: +12V
11: 3.3V/14A
12: -12V
13: Ground
14: PS-ON
15: Ground
16: Ground
17: Ground
18: -5V
19: +5V
20: +5V
PL1
PL2
