11 /16
5

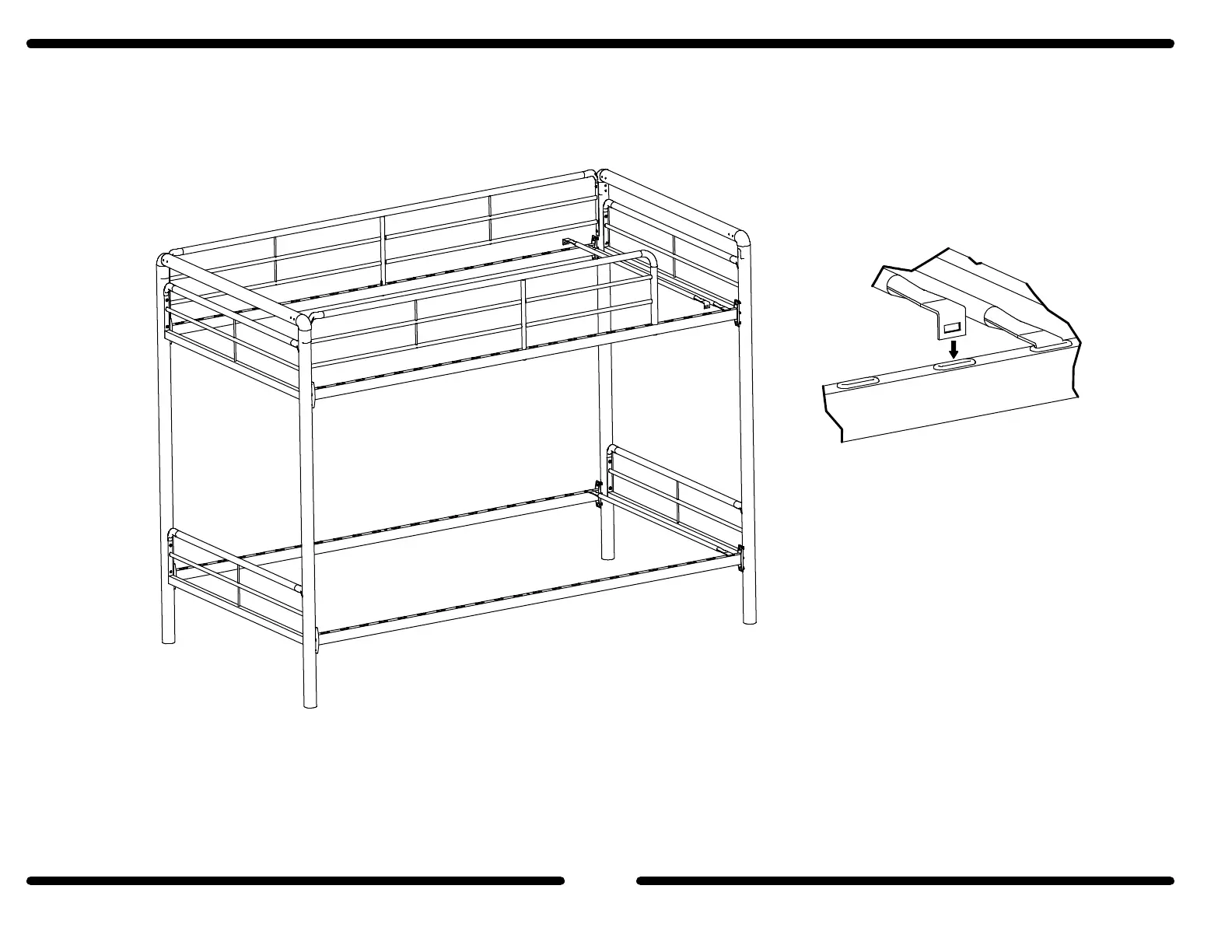

Push the ends of each SLAT (K) into the slots in each SIDE RAILS (G, H & J) as shown.
B34313519600
