DETAIL 2
DETAIL 1
DETAIL 3
9 /20
W
a
r
n
i
n
g
l
a
b
e
l

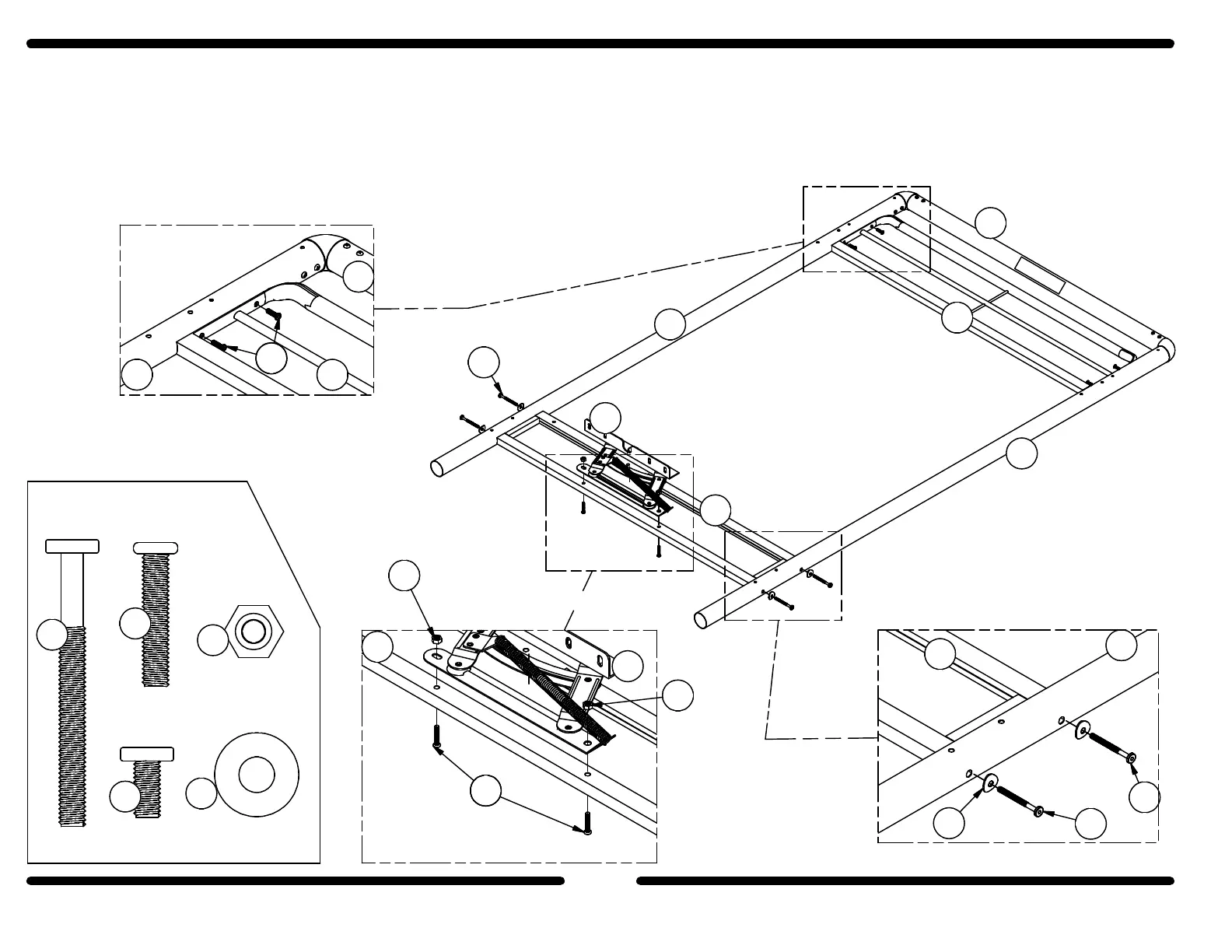

Attach the SIDE GUARD RAIL (F) to the POSTS (A & C) with the BOLTS (6) as shown in detail (1). Attach the LOWER SIDE
RAIL (I2) to the POSTS (C & A) with BOLTS (1) and WASHERS (8) as shown in detail (2). Attach the MECHANISM (L) to the
LOWER SIDE RAIL (I2) with the BOLTS (4) and LOCK NUTS (7) as shown in detail (3).
Repeat this step to assemble parts F, I1 & R to right hand assembly that you created in STEP 1 [(B & D) & M]. And tighten all
the bolts assembled in STEPS (1 & 2).
2
1
4
x8
x8
x4
8
Hardware Required
x8
C
A
A
I2
M
F
6
I2
I2
L
L
B34313709605
1
7
x4
C F
6
M
1
1
8
44
L
7
7
6
To Next Page
